AUTOPULSE Z-20 Agent Releasing Panel Operator’s Manual (579-1165AR)
Processing Supervisory and
Trouble Conditions:
When a Supervisory or a Trouble event occurs, it needs to be acknowledged and the
cause of the event resolved for the system to return to normal. Two types of
acknowledging modes can be configured on the panel.
1. Global Acknowledge
All the zones inside the Zone Supervisory or Zone Trouble lists are acknowledged at
the same time.
2. Individual Acknowledge
Each zone inside the Zone Alarm List is acknowledged separately.
Note: A zone groups multiple points together and the Zone Supervisory or Zone Trouble list
displays all the zones where Trouble or Supervisory conditions occurred.

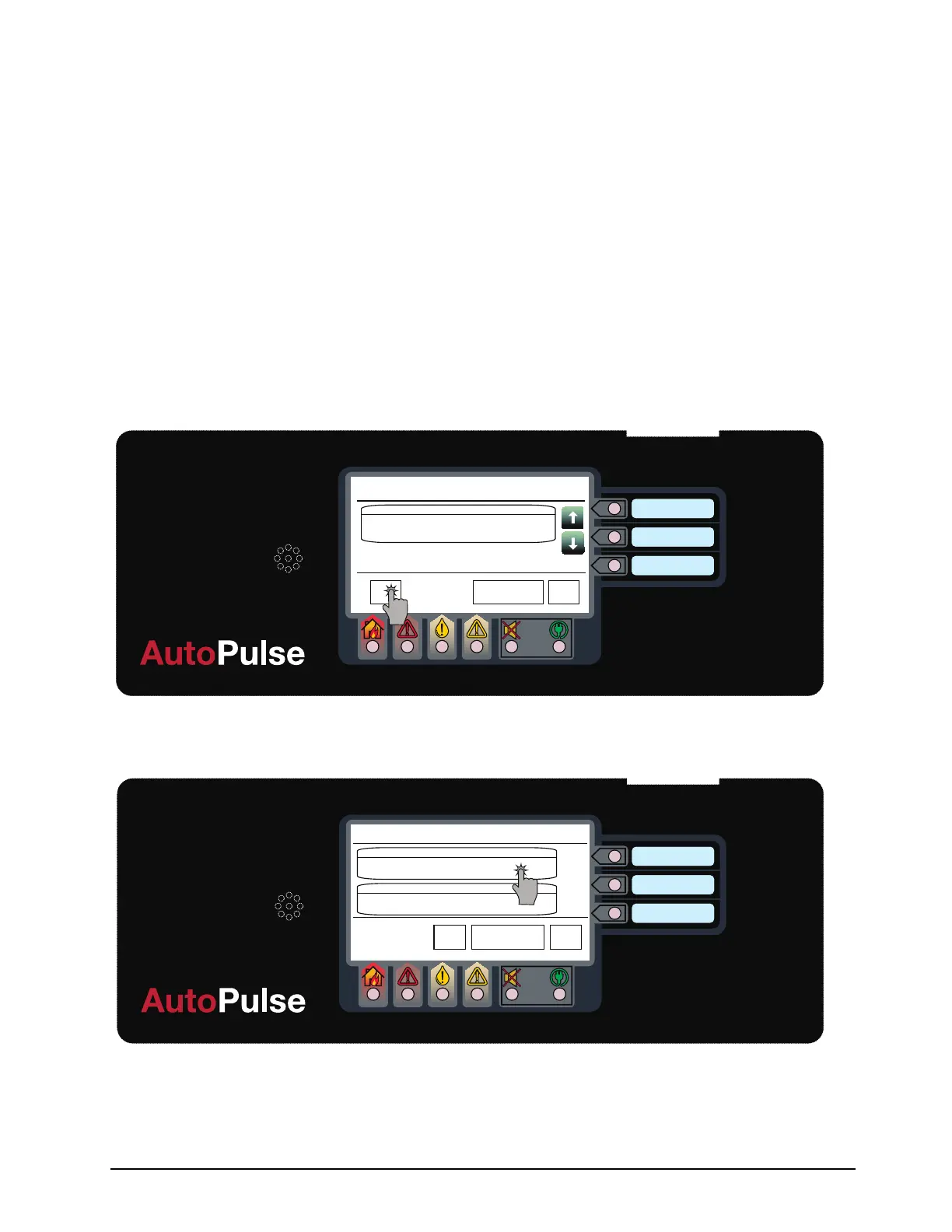

Global Acknowledge
Tap ACK.
Individual Acknowledge
Tap the unacknowledged Trouble from the events list.
Note: The Troubles that have not been acknowledged display Press to acknowledge on the top right of the button.
Fire Alarm in System
Date
Time
First of 1
Date
PULL STATION 1
FIRE ALARM
ACK
1
Alarm Functions Menu
Trouble in System
Date
Time
Most Recent of 5
Press to acknowledge
SYSTEM TIME/DATE INVALID OR NOT SET
ABNORMAL
ACK
5
Alarm Functions Menu
First of 5
Press to acknowledge
CARD 1, NAC POWER SUPPLY
NAC MISWIRE TROUBLE
