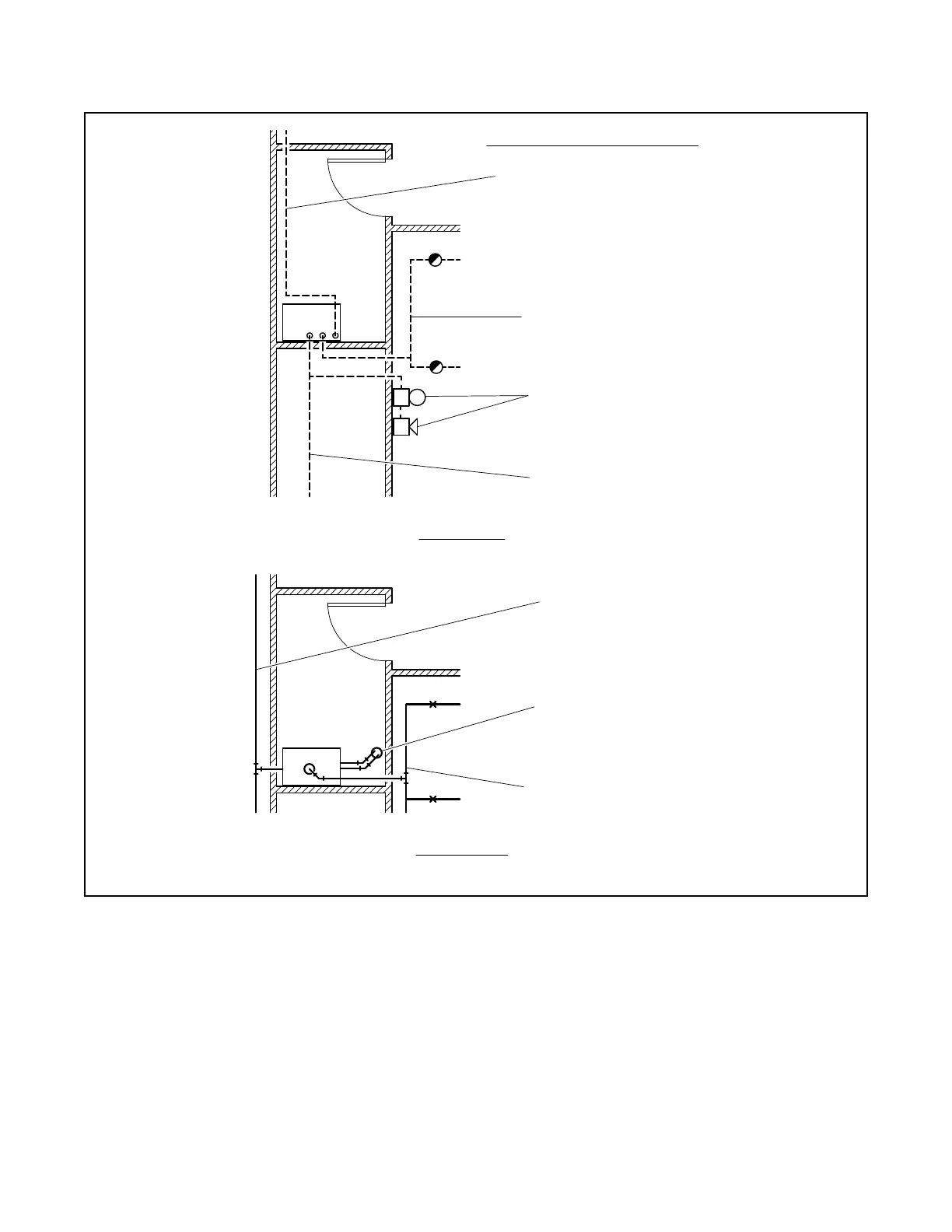

FIGURE 3
SYSTEM DESIGN CONSIDERATIONS
ELECTRICAL
MECHANICAL
WATER SUPPLY INLET
FROM WATER
ALARM PANEL
REMOTE SIGNALS
TO BUILDING FIRE
PIPING, AS WELL AS
SPRINKLER SYSTEM
SPRINKLERS AND/OR
DEVICES
AUDIBLE &
VISUAL SIGNALING
FLOOR DRAIN OR
FUNNEL DRAIN TO
MAIN DRAIN & DRIP
ELECTRICAL POWER CIRCUITS
FROM BUILDING BREAKER PANEL
DETECTION CIRCUITS
SUPPLY PIPING
EQUIVALENT
NOZZLES
PANEL (IF APPLICABLE)
120 VAC 60 Hz MAX. 165 VA OR
CAPABLE OF PROVIDING
ONE CIRCUIT FOR RELEASING
ADDITIONAL POWER CIRCUIT
FROM BREAKER PANEL FOR AIR
220 VAC 50/60 Hz 185 VA MAX.
COMPRESSOR AS APPLICABLE
TFP1301
