8. T1200-C1632 16-zone expansion board Features

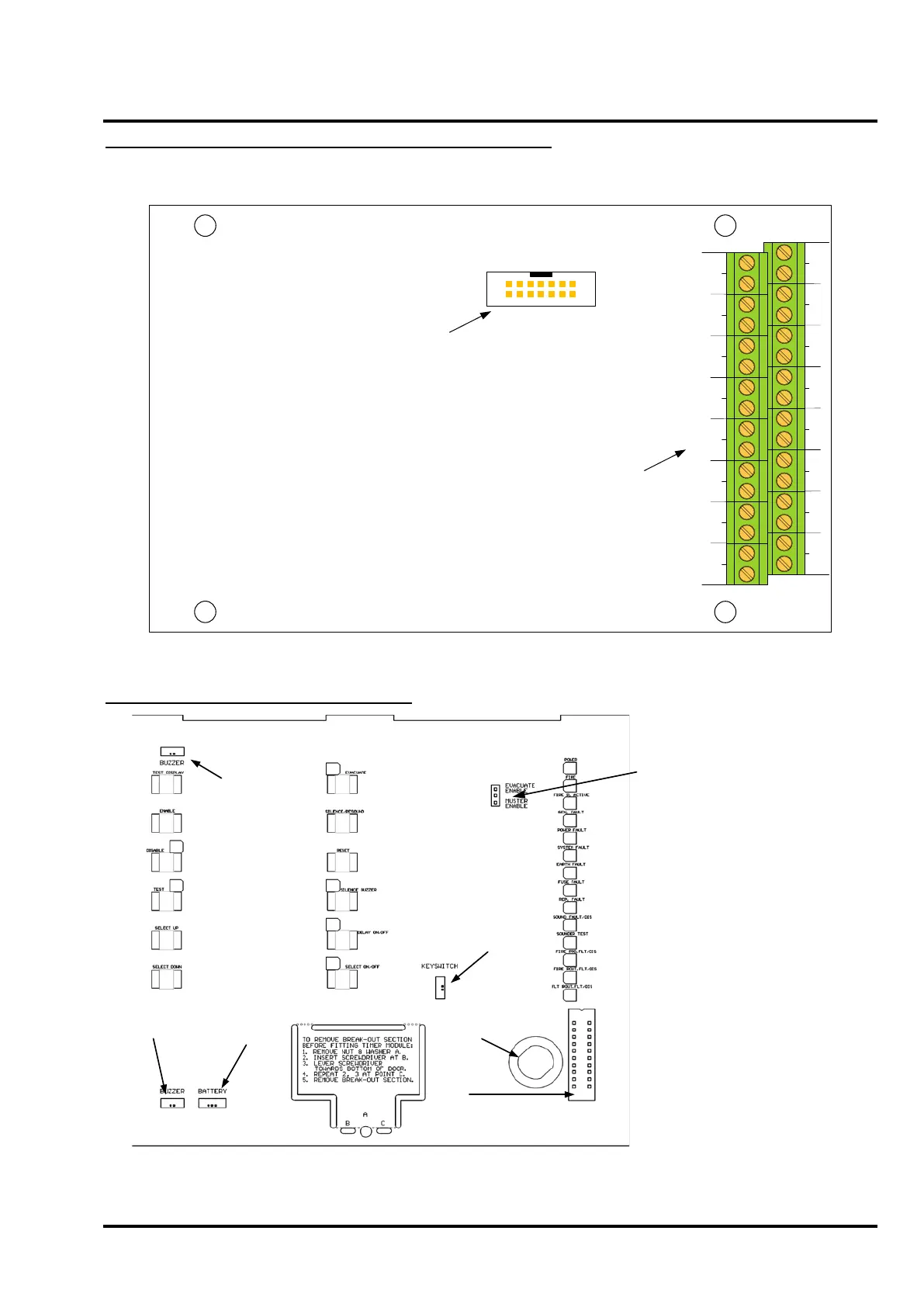

Figure 10 illustrates the C1632 16 zone expansion board features referred to elsewhere in the documentation.
+ 17 - + 18 - + 19 - + 20 - + 21 -
ZONE CIRCUITS
+ 22 - + 23 - + 24 -
+ 25 - + 26 - + 27 - + 28 - + 29 - + 30 - + 31 - + 32 -
TO MOTHERBOARD
J1
CEL C1632 ISSUE 3 26-04-2006
16 ZONE EXPANSION BOARD
Connector for
Motherboard
Ribbon
Terminals for
Detection
Zones 17 to 32
Figure 10 – C1632 16-zone expansion board
9. T1200-C Display Board Features
Buzzer
Connector
Buzzer
Connector
9V Battery
Connector
Keyswitch
Connector
Keyswitch
Motherboard
Ribbon Cable
Connector
Evacuate/Muster Configuration Link:
Upper position: Evacuate mode
(manual fire alarm)
Lower position: Muster mode
Link removed: Evacuate & Muster
modes disabled
Note: “Evacuate” = Manual Fire Alarm/Muster
Figure 11 – Rear right hand side of display PCB
