Tyco T1200-C Series User Manual

EQUIPMENT: T1200-C
PUBLICATION: MARINEC-P-A
ISSUE No. & DATE: 3 02/14
© 2014 Thorn Security Ltd PAGE 7 of 67
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE

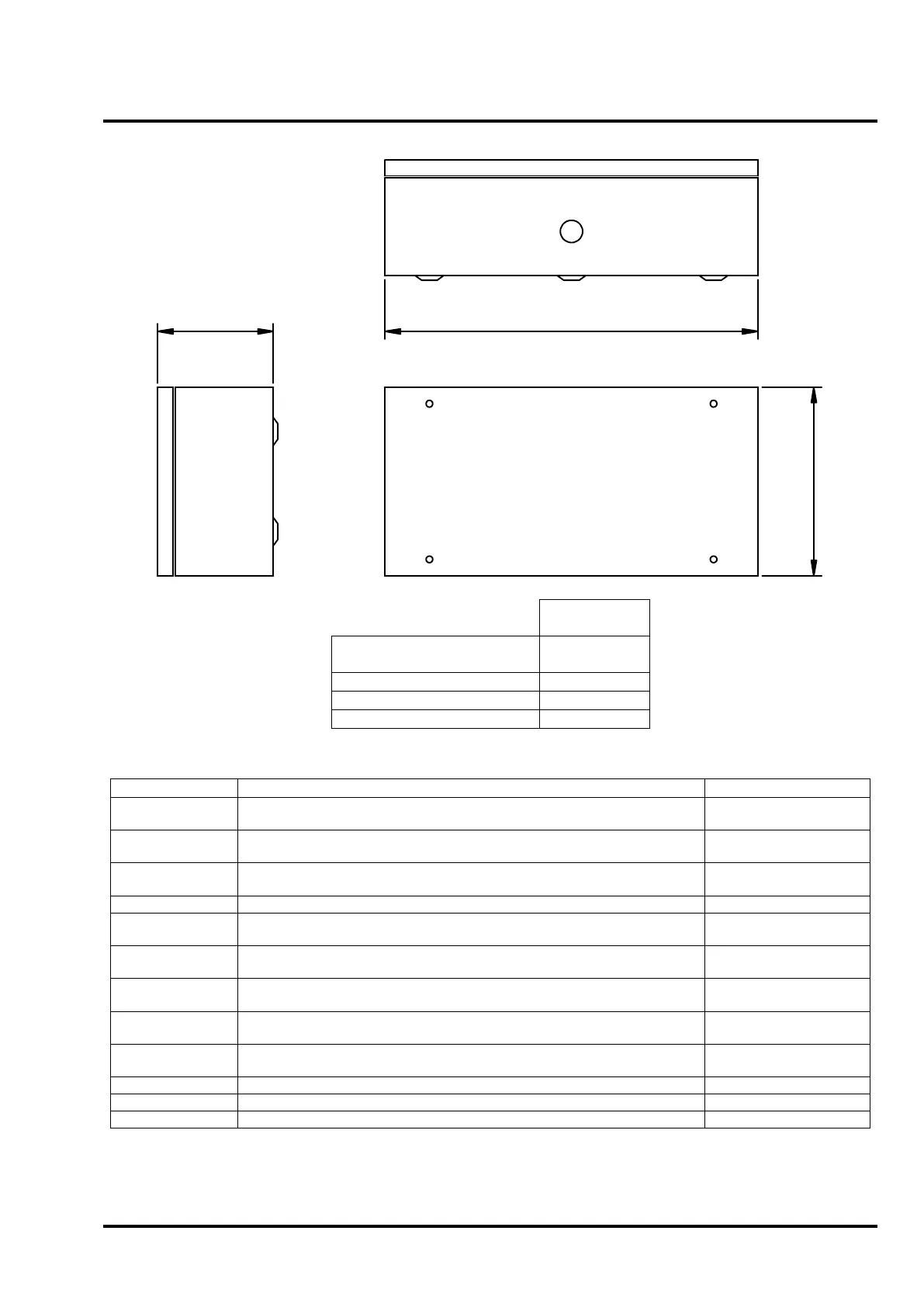

Figure 3 – Battery Box
B
C
A
T1200B-C
Battery Box
20mm knock-outs
1 at top
1 at bottom
Dim A [mm]
235
Dim B [mm]
395
Dim C [mm]
106
4.1.1 Order Codes & Descriptions
Tyco Part No.
Description
Standby SLA Battery
508.023.001 T1204DC – 4-Zone Panel c/w 1.5A 24Vdc PSU.
24V, 7Ah
in T1200B enclosure
508.023.002 T1204A1 – 4-Zone Panel c/w 1.5A 110Vac PSU.
24V, 7Ah
in T1200B enclosure
508.023.003 T1204A2 – 4-Zone Panel c/w 1.5A 230Vac PSU.
24V, 7Ah
in T1200B enclosure
508.023.023
T1200B B1 Battery box for T1204 – 4 zone panel.
24V, 3/7Ah
508.023.104
T1216-C – 16-Zone Panel c/w voyage data recorder output module and 4A
110/230Vac PSU.
24V, 17Ah
in T1200B-C enclosure
508.023.105
T1216W-C – 16-Zone Watermist Panel with 2x C1634 Relay output boards
and 4A 110/230Vac PSU.
24V, 17Ah
in T1200B-C enclosure
508.023.106
T1232-C – 32-Zone Panel c/w voyage data recorder output module and
5Amp 110/230Vac PSU.
24V, 17Ah
in T1200B-C enclosure
508.023.111
T1216R-C – 16 Zone Repeater - 24Vdc powered [including 2x C1631
repeater interfaces – one fitted, one spare for site fitting to panel].
N/A
508.023.114
T1232R-C – 32 Zone Repeater - 24Vdc powered [including 2x C1631
repeater interfaces – one fitted, one spare for site fitting to panel].
N/A
508.023.122
T1200E-C Expansion box for 4 output boards, without power supply
N/A
508.023.123
T1200B-C Battery enclosure for 2x 17Ah batteries.
24V, 17Ah
508.023.036
A1466 Relay Board [2x volt-free changeover contacts rated 2A, 30V Max].
N/A
