7. T1216-C/T1232-C Motherboard (C1627) Features

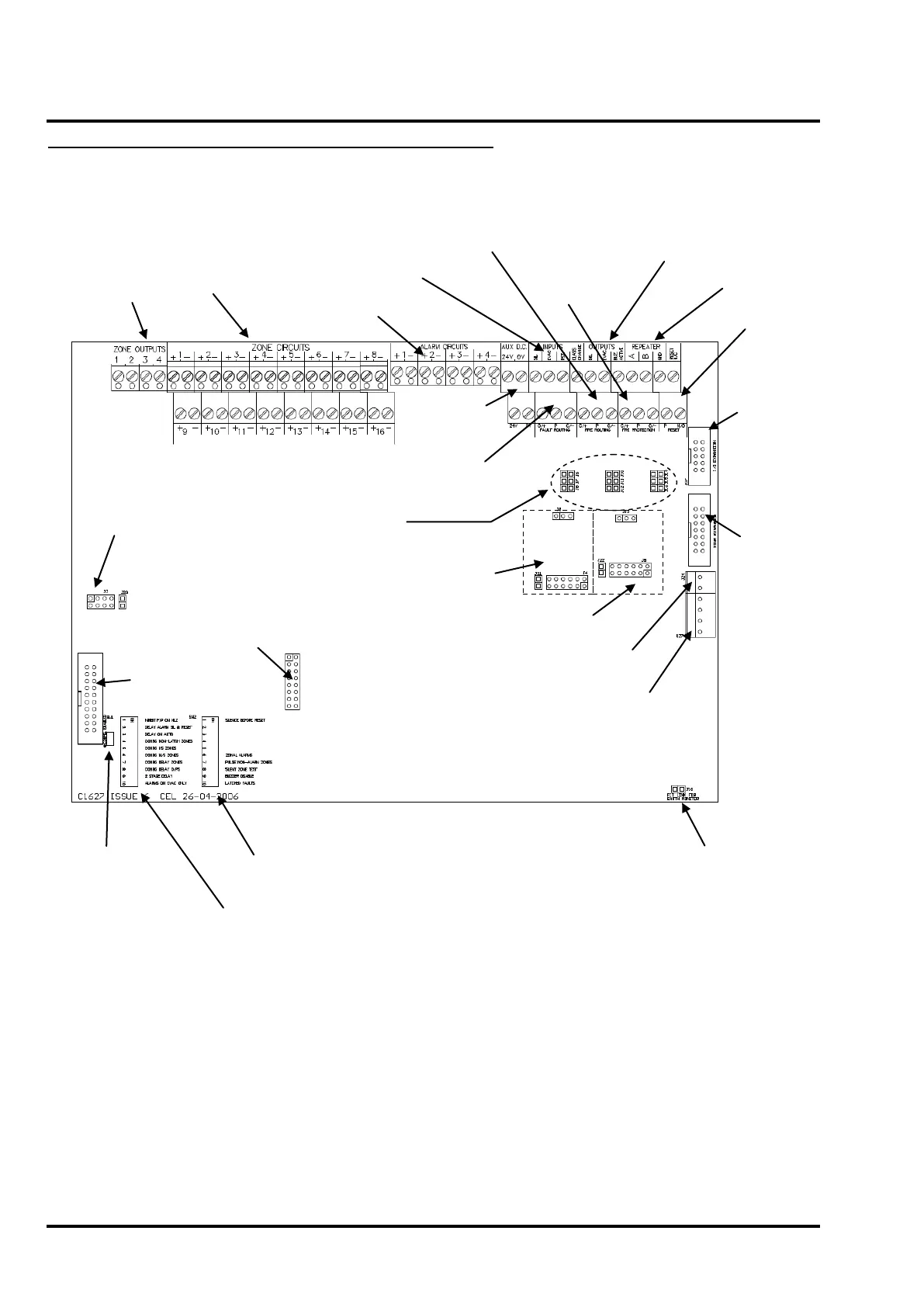

Figure 9 illustrates the C1627 motherboard features.
Figure 9 – C1627 motherboard layout
Notes:
I. “Evacuate” or “Evac” = Manual Fire Alarm/Muster.
II. The 16-pin Microcontroller programming header is for use during manufacturing only and should not
have any links fitted across any of the pins. Improper use of the connector may result in permanent
damage to the motherboard.
III. J24 provides a 24Vdc output to the Output Expansion Boards and is not monitored for failure. DO NOT
USE THIS OUTPUT FOR ANY OTHER PURPOSE.
PULSE ALARMS
DELAY RESTART
Zone
Detection
Inputs
J1
Display
Connector
Configuration
mode enabled
LED indicator
Configuration
switches
SW1/1 to SW1/10
J18
Earth Fault
Monitoring Link
Connector
for C1632,
Zone
Expansion
Board
Alarm Circuits
[Marked with
Active
Polarity]
Aux DC
Supply
24V & 0V
Remote Inputs:
Silence Alarms
Evacuate
Reset
Aux Outputs:
Dis
ablement Active
Evac
uate Active
Buzzer Active
Repeater
Terminals:
A, B, GND
Reset
Relay
Output
Fire
Protection
Output
Fire Output
[Marked Fire
Routing]
Fault Output
[
Marked Fault
routing]
Configuration
switches
SW2/1 to SW2/10
C1630 Output
Expansion Interface
Connectors
Zone
Outputs1-4
Connector
for O/P
expansion
modules
Configuration links for
Fire & Fault Signal
[Routing] O/Ps and Fire
Protection O/P
J2 and J23
Connector for C1665
Muster Interface
J19 DC supply in & PSU fault
from PS136
J24 DC supply out to
expansion boards
C1631 Repeater
Interface Connectors
Microcontroller
Programming
Connector
–
Factory Use
Only
