Tyco T1216-C - C1630 Output Expansion; C1631 Repeater Interface; Eatures; Features

T1200
MARINEC-P-A
3 02/14
PAGE 34 of 67

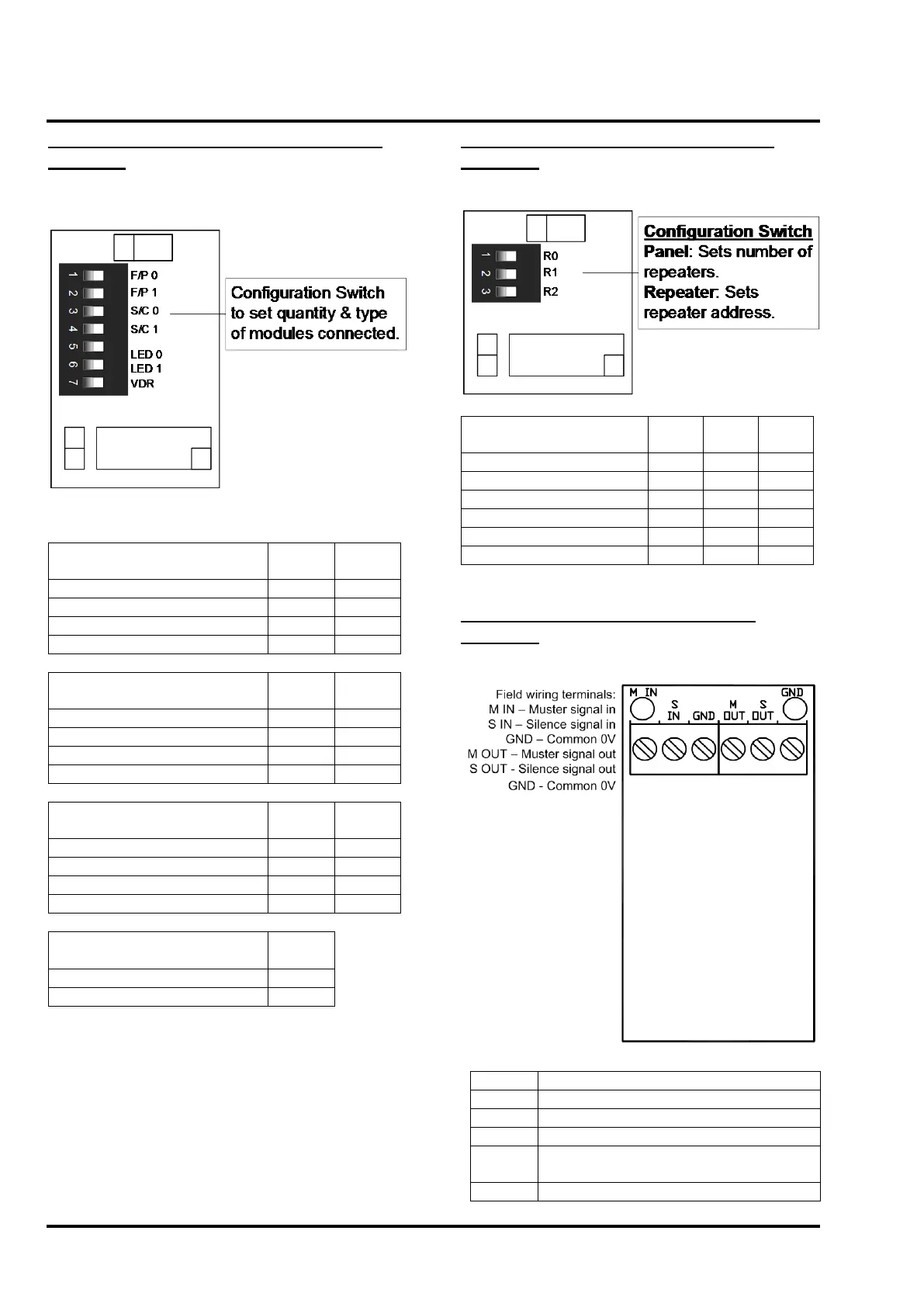

11. C1630 Output Expansion Interface
Features
Figure 13 – C1630 Output Expansion
Interface
DIL Switch settings:
Number of Fire Protection
Output Boards
F/P 0
F/P 1
0
OFF
OFF
1
ON
OFF
2
OFF
ON
4
ON
ON
Number of Sounder
Controller Output Boards
S/C 0
S/C 1
0
OFF
OFF
1
ON
OFF
2
OFF
ON
4
ON
ON
Number of LED (open
collector) Output Boards
LED 0
LED 1
0
OFF
OFF
1
ON
OFF
2
OFF
ON
4
ON
ON
Voyage Data Recorder
Interface Board Enable
VDR
Disabled
OFF
Enabled
ON
12. C1631 Repeater Interface Board
Features
Figure 14 – C1631 Repeater Interface Board
Repeater number or
Repeater Address
R0 R1 R2
0
OFF
OFF
OFF
1
ON
OFF
OFF
2
OFF
ON
OFF
3
ON
ON
OFF
4
OFF
OFF
ON
5
ON
OFF
ON
13. C1665 Muster Interface Board
Features
Figure 15 – C1665 Muster Interface Board
Field Wiring Terminals (left to right):
M IN
Muster Signal In (from repeater)
S IN
Silence Alarms Signal In (from repeater)
GND
Common 0V
M OUT
Muster Signal Out (to repeater or panel)
S OUT
Silence Alarms signal Out (to repeater
or panel)
GND
Common 0V
