TFP635

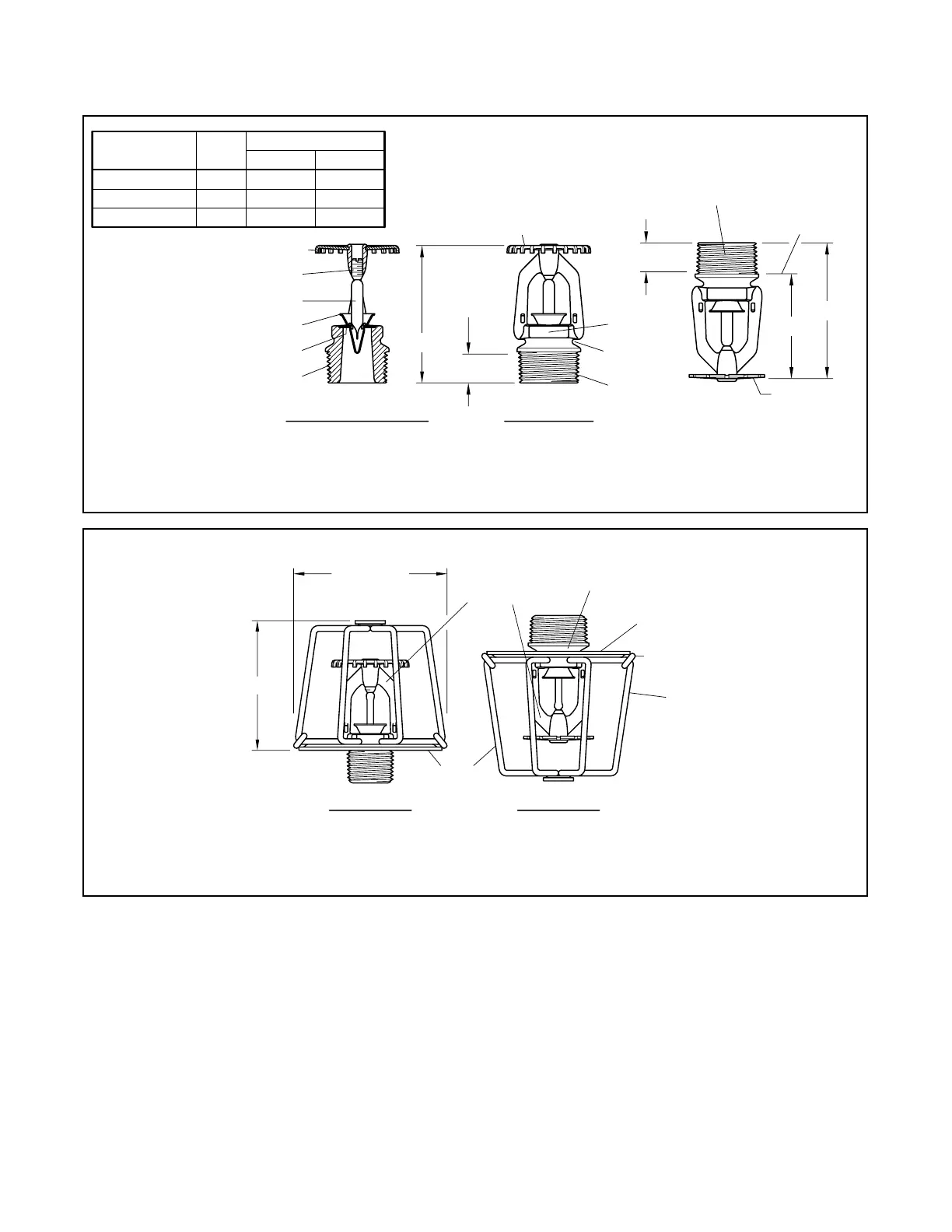

FIGURE 3
115 K-FACTOR, 3/4 INCH NPT
UPRIGHT AND PENDENT FLAT SPRAY SPRINKLERS
FIGURE 4
MODEL G1 GUARD
TYPICAL INSTALLATION ON UPRIGHT AND PENDENT FLAT SPRAY SPRINKLERS
Components:
60 mm
MAKE-IN
NOMINAL
13 mm
WRENCH
FLATS
UPRIGHT
MAKE-IN
NOMINAL
PENDENT
46 mm
60 mm
13 mm
*
CROSS SECTION
BULB
SIZE
MODEL
SIN
UPRIGHT
TY41363mm
TY-FRFS
TY-FS SPECIAL
4mm
TY4146
TY-FS
5mm
TY4156
PENDENT
TY4256
TY4246
TY4236
2
6
4
5
3
1
*
Frame
Button
Bulb (See table above)
Compression Screw
Deflector
Sealing Assembly
-
-
-
-
-
-
*
2
1
3
5
4
6
THREAD
RELIEF
Temperature rating is indicated on
Deflector or adjacent to orifice seat
*
can be provided on special request.
Pipe thread connections per ISO 7/1
**
on frame.
*
DEFLECTOR
PLATE SEATING
ESCUTCHEON
SURFACE
SHIELD AND
3/4" NPT
DEFLECTOR
3/4" NPT
**
**
73 mm DIA.
60 mm
UPRIGHT
BAR
(ENGAGED)
GUARD CLIP
SPRINKLER
GUARD
MODEL G1
PLATE
THREAD RELIEF
PENDENT
BASE
PENDENT
SPRINKLER
FLAT SPRAY
UPRIGHT or
15 or 20 mm
ENGAGED BY
BASE PLATE
