8000060 Rev 3 19-Feb-19 TyconSystems.com
19

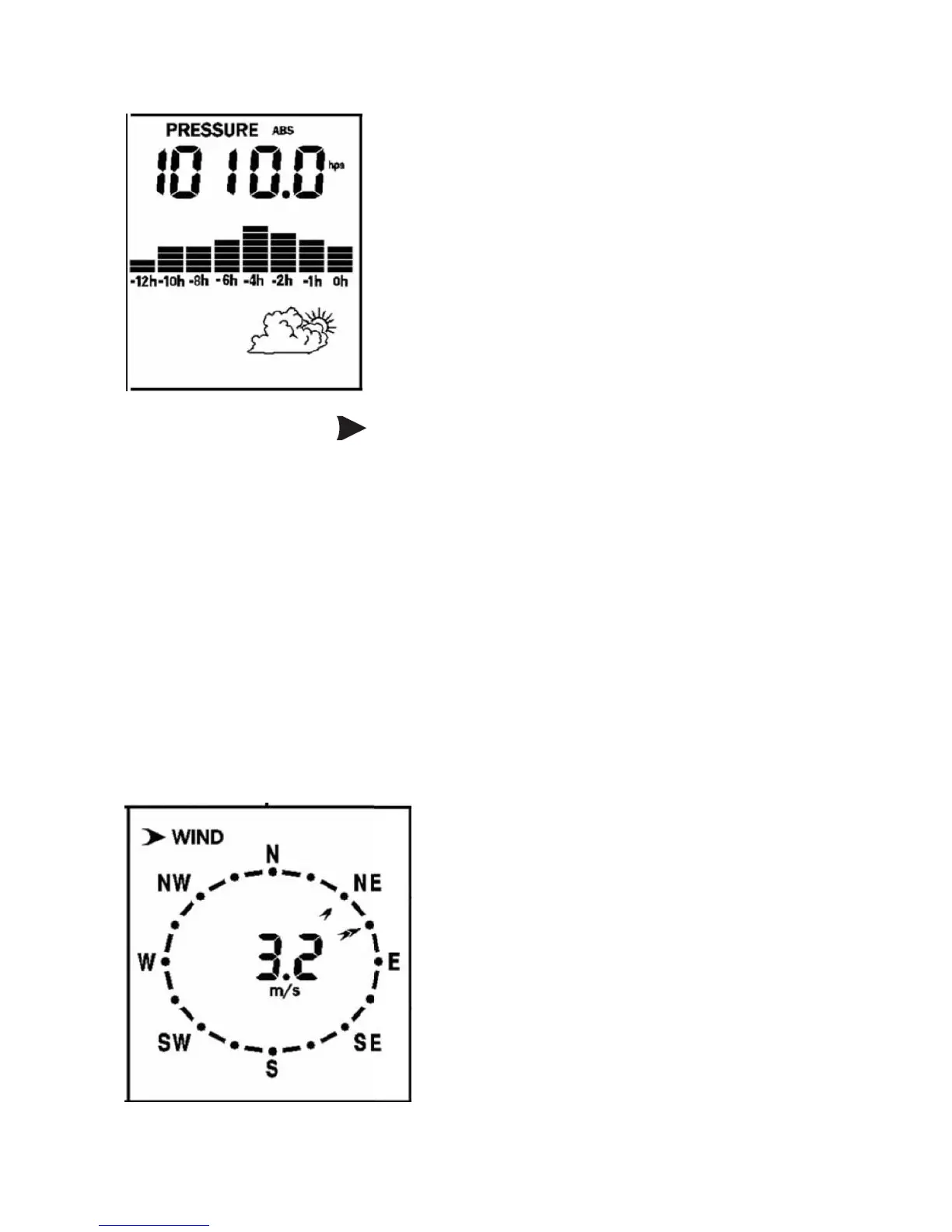

Barometric
If the arrow symbol is in this segment, following information with
time stamp will appear on the message board:
a) Max relatively barometric pressure of the current day
b) Min relatively barometric pressure of the current day
c) Max relatively barometric pressure since the last reset
d) Min relatively barometric pressure since the last reset
e) Max absolute barometric pressure of the current day
f) Min absolute barometric pressure of the current day
g) Max absolute barometric pressure since the last reset
h) Min absolute barometric pressure since the last reset
Wind and gust speed
