8QXVXDOYROWDJHVQXPEHUVRISKDVHV
Contact Tyl Customer Service before connecting to voltages or
numbers of phases that are not listed in the wiring diagram Figure
19.
([WHUQDO212))VZLWFKRSWLRQ
The external ON/OFF switch can be positioned anywhere outside
the sauna, not to exceed 75 feet from the heater
, to avoid voltage
loss in the cable.
oltage loss a ects the ED indicator for heater
status (if built-in and connected to the switch).
For further information, see instructions supplied with the control
panel.

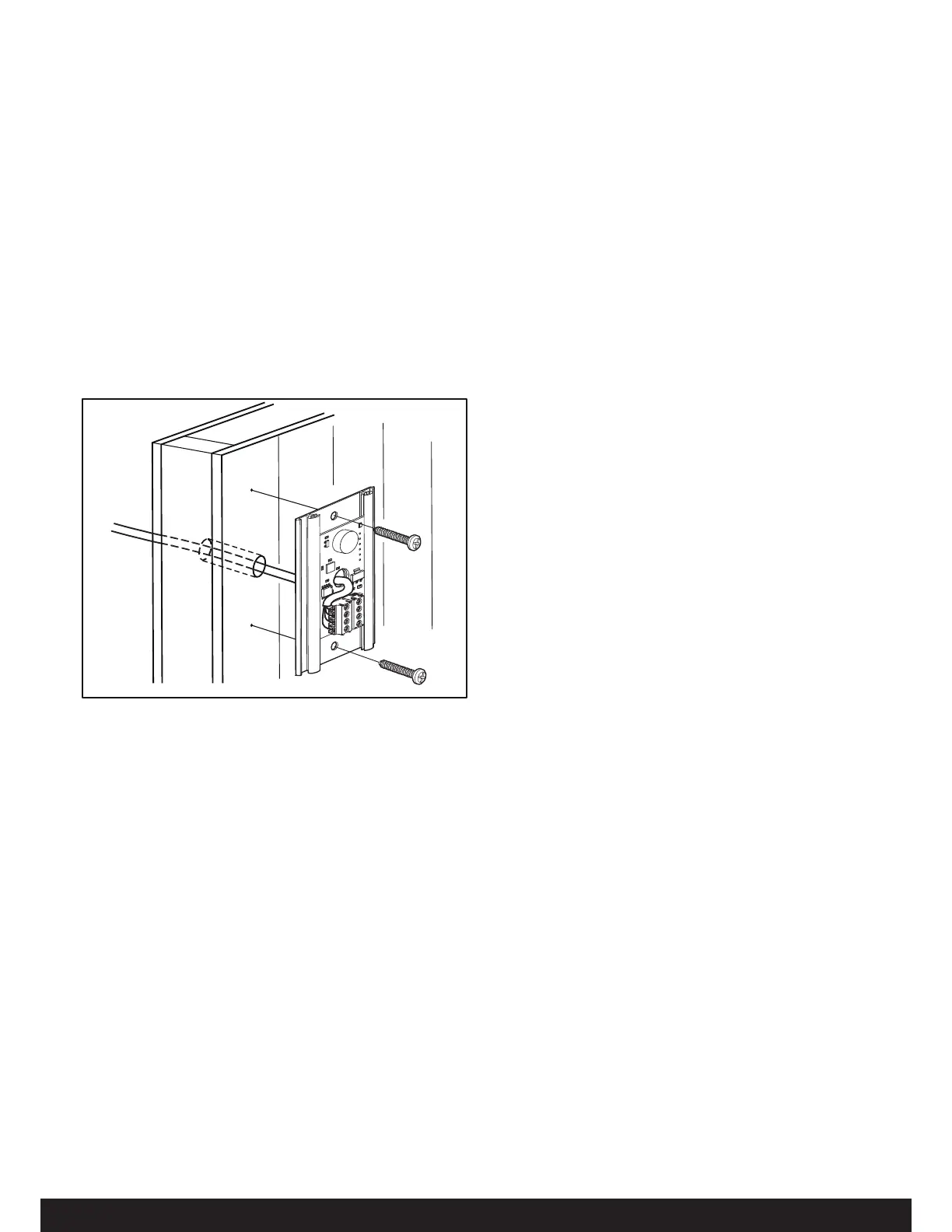

Fig 18: Wiring through the wall - Combi Elite.
