7. Connect the light cable (if relevant) (7), see Figure 11, to the
terminal () according to the wiring diagram Figure 19.
8. Close the cover and tighten the screws (see Figure 10).

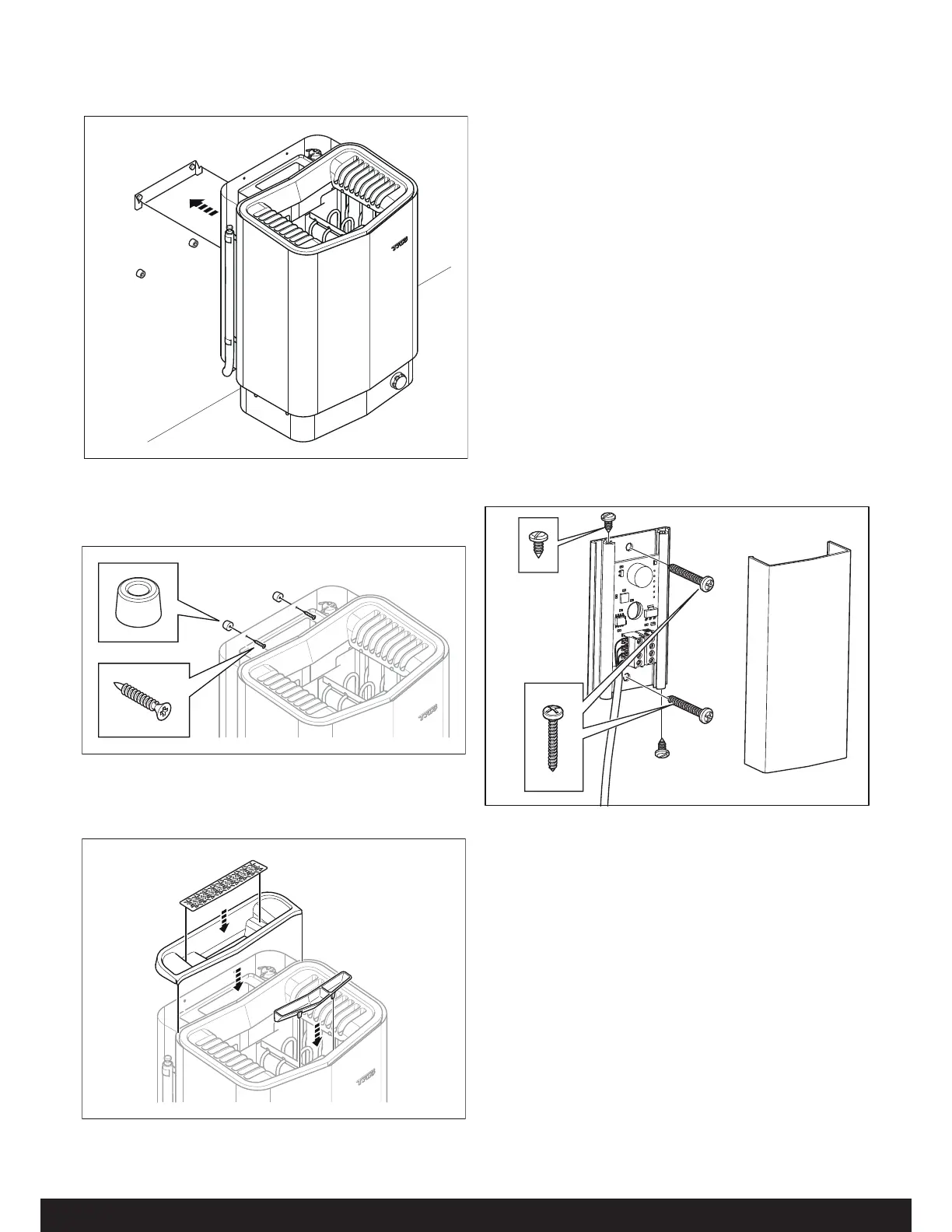

9. Hang the heater on the bracket (see Figure 12).
Figure 12: Hang the heater up.
10. Fit the spacers between heater and wall (to prevent the heat-
er from being lifted o ) (see Figure 13).
Fig 13: Fit spacers
11. Fit the cover for the water reservoir, herb grille and fragrance
holder/air humidi er (see Figure 14).
Fig 14: Fitting the cover for the water reservoir, herb grille and
fragrance holder/air humidifi er
12. Install the sensor on the wall see Fig 15 and 16. The therm-
istor wire may also be passed through the wall see Fig 17
and 1. Seal any holes in the wall behind the sensor. The
thermistor wire may be extended outside the sauna using low
voltage wire (2-lead).
Fig 16: Installing the humidity- and temperature sensor - Combi
Elite. The cable inside the sauna must be heat resistant.
