E
MAINTENANCE
24
The function of the battery disconnect
switch is to disconnect the power
supply to the electrical system by
interrupting the connection to the
battery.
This has benefits for tractor safety and
operation, in particular:
1. Protects the electrical system
against short circuit;
2. Reduces battery self-discharge
when the tractor is left idling for
prolonged periods;
3. Allows maintenance and repairs to
be carried out in conditions of
safety.
▶ DISCONNECTING BATTERY
Turn the knob to “OFF” to disconnect
the battery and back to “ON” to resume
normal operation.

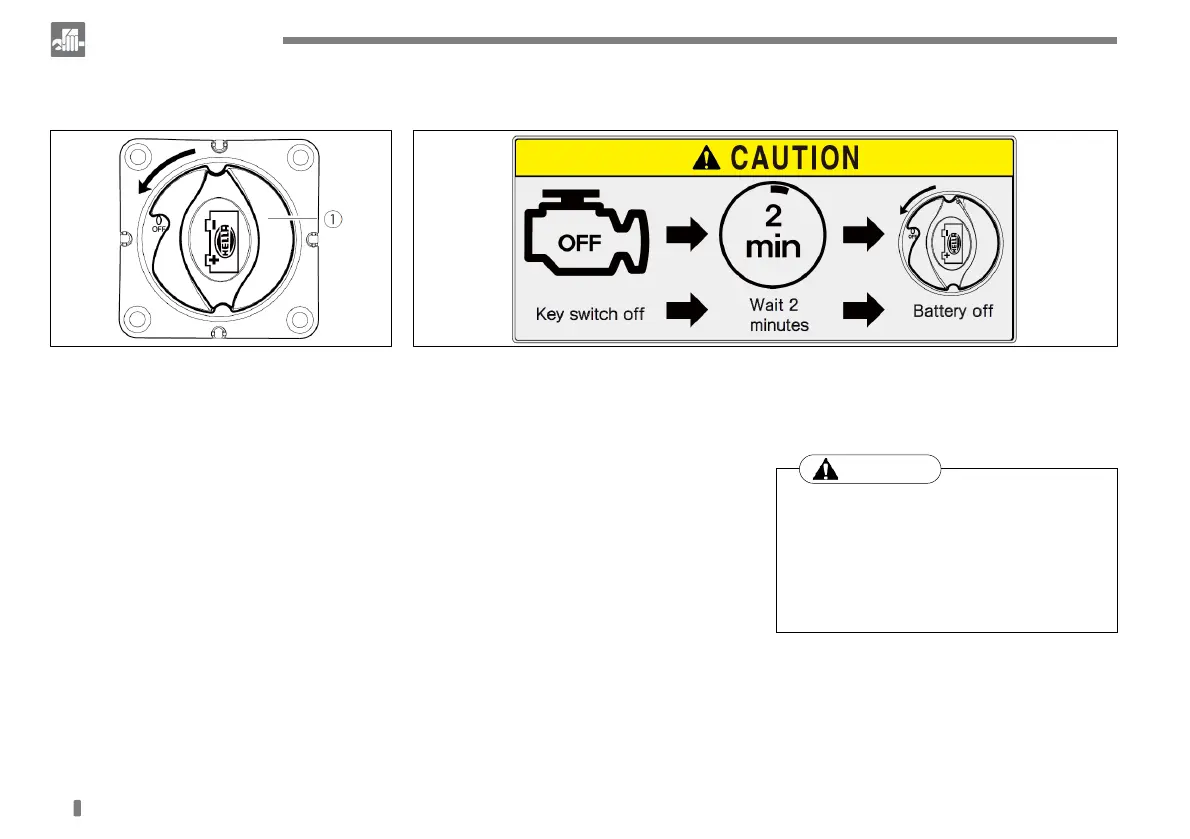

The battery disconnect knob (1) is
located on the bracket to the right of the
battery.
The battery disconnect knob may be
removed for safety purposes in the
manner described below.
<Removal of the knob>
1. Press the knob in and continue to
turn it counter-clockwise as far as it
will go.
<Refitting the knob>
1. Press and turn the knob clockwise,
positioning it at "ON".
When the ignition switch is turned to
the OFF position, urea is returned to the
tank automatically.
However, this may take up to 2 minutes
do not disconnect battery within less
than 2 minutes from engine shut down.
CAUTION
