16.DTMFRELAYS



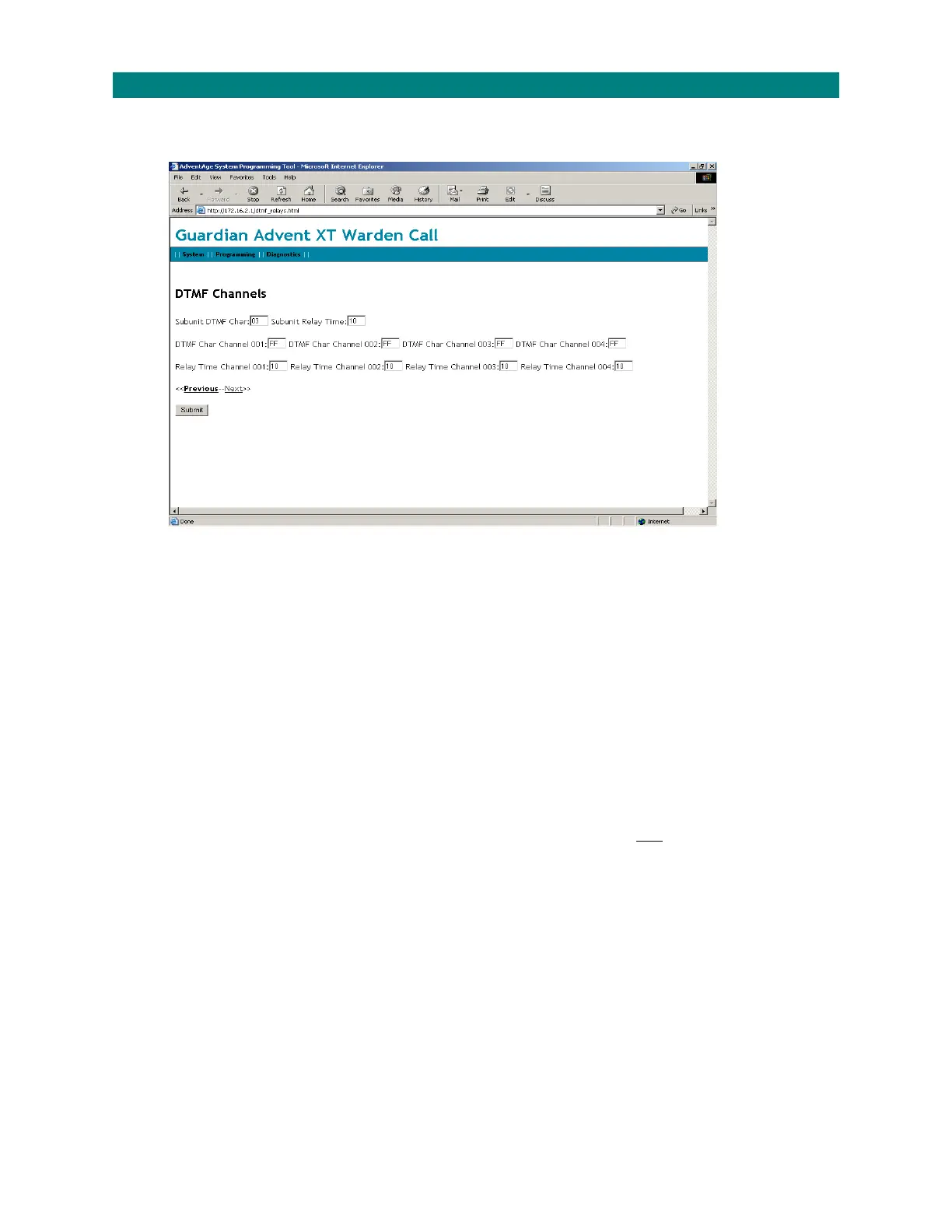

FromtheProgrammingmenu,select“DTMFRelays”tosettheDTMFcharactersusedtoactivatethesystemrelayoutputsandthetime

durationeachoutputremainsenergised;



Enterthefollowing;



SubunitDTMFChar:entertheDTMFkeyusedtoactivatetherelayinanintercomduringspeech,default

=03,canbechangedto04,

07,08or09only.



SubunitRelayTime:setthetimeforwhichtheintercomrelayremainsenergised,01to99seconds.



DTMFCharChannel001:leaveasFFandoutputrelay1willactivateforthedurationofanyalarm,orentertheDTMFkeyusedto

activateoutput1‐canbesetto03,04,07,08or09only.



DTMFCharChannel002:leaveasFFandoutputrelay2willenergiseforthesamedurationinput4isactivated(usedtoreleasethe

doorlockwithFireAlarminput),orentertheDTMFkeyusedtoactivateoutput2‐canbesetto03,04,07,08or09

only.



DTMFCharChannel003:leaveasFFandoutputrelay3willcontroltheBTLineSelector(ZXT330)whenenabledonthe“Remote

Offsite”screen,orentertheDTMFkeyusedtoactivateoutput3‐canbesetto03,04,07,08or09only.



DTMFCharChannel004:leaveasFFandoutputrelay4willenergiseforthedurationofaBTLineFault,orentertheDTMFkeyusedto

activateoutput4‐canbesetto03,04,07,08or09only.



RelayTimeChannel001:enterthetimeforwhichthecontrolleroutputrelay1remainsenergisedifsetasaDTMFcharacter,default=

10,canbe01to99seconds.



RepeatasaboveforRelayTimesonChannels002,003&004.



Click“Submit”toenteranychanges.


