8.GENERALSET‐UP


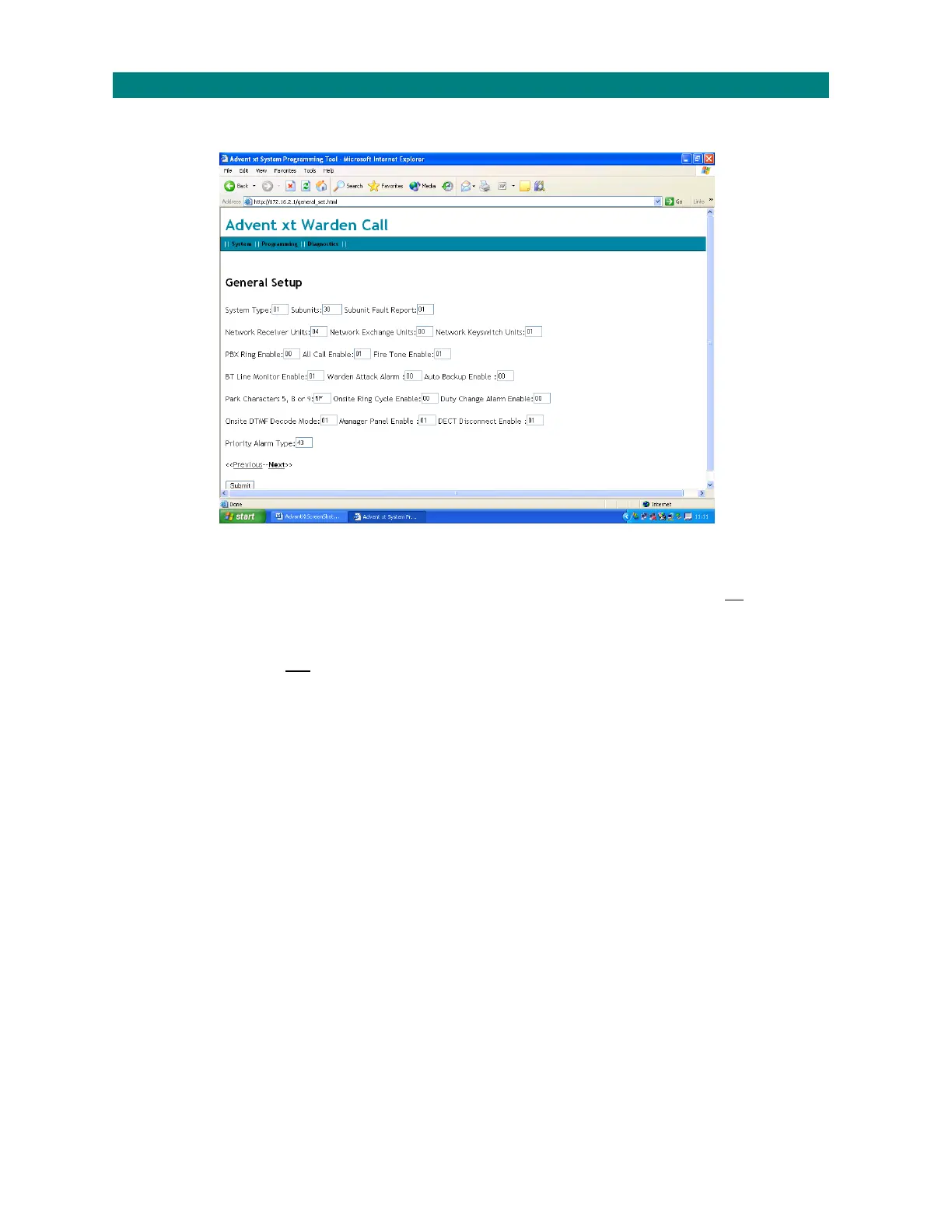

FromtheProgrammingmenu,select“GeneralSet‐up”tosetthesystemtype,numberofnetworkdevices,enablePBXandallcall/fire
tonefeatures;


Enterthefollowing;

SystemType:choosestandardAdventxt=01.

Subunits:setthetotalnumberofintercomunitsonthesite,01to255(includesLiftunitsandManagerunits‐butnotdigitaldoor
panels).

SubunitFaultReport:mustbe01fornormaloperatingmode.Onlysetto00duringinstallationtoturnintercomfaultmonitoringoff(ie.
ifradiopendantcoverageisrequiredbeforetheintercomsarefitted).

NetworkReceiverUnits:setthetotalnumberofnetworkreceivers(standard+zoned)onthesite;00to16(00=none).SeetheZoning
Set‐uppagetoenablezonednetworkreceivers(max12persite).

NetworkExchangeUnits:mustbe00forTalkswitch/Fortivoice(i.e.KirkDECT).Onlysetto01forPanasonicPBXwithBTDiverseDECT.

NetworkKeyswitchUnits:00=notfittedor01toenableaStatusModule.

PBXRingEnable:00=noPBXor01ifTalkswitch/Fortivoice/Matrixisfitted.

AllCallEnable:00=noAllCallor01ifAllCallfitted.

FireToneEnable:00=noFireTonesoundedthroughintercoms,01=FireToneenabled.

BTLineMonitorEnable:00=BTlinemonitoringdisabledor01=BTlinemonitoringenabled.

WardenAttackAlarm:00=disabled.Ifattackpendantsorpanicbuttonsarebeingusedthenthemethodofreportingthesealarms
mustbeset;01=onsite,02=localoffsite,03=remoteoffsite.

AutoBack‐upEnable:00=manualback‐upenabledor01=automaticback‐upenabled.Allsystemconfigurationdataandradiodevices
canbestoredonthecontrollerFlashMemoryCard.

ParkCharacter5,8or9:5F=onsiteparkenabled(single5topark),changeto55(fordouble5topark),or8F/88or9F/99.
FF=onsiteparkdisabled.

OnsiteRingCycleEnable:00=Kirk(orBT)basestationor01=DistybaseONLY

DutyChangeAlarmEnable:00=normal,01=automaticcallcontrolcentrewhensystemisswitchedbetweenonsite/remoteoffsite
andviceversa.

OnsiteDTMFDecodeMode:01=normal,00=GeemarkJupiterDeskTelephoneOnly

ManagerPanelEnable:default00=ManagerPaneldisabled,setto01ifaManager’sPanelisconnected.

DECTDisconnectEnable:default01forFortivoiceIPPBX(i.e.droplinebeforeringtoreset),00fornoresetbeforering.

PriorityAlarmType:defaultFFfornoalarmtypepriority(i.e.alarmsreportedintheordertheyarereceived),orentertheTyneteccode
ofthealarmtypeyouwanttotakepriority(e.g.43=smokealarms).Seelis tofTyneteccodesonpage15.

Click“Submit”toenteranychanges.


