MAX-7 / NEO-7 / LEA-7 - Hardware Integration Manual
GPS.G7-HW-11006-1 Design
Page 17 of 55
3.2.1 Minimal design (NEO-7N)
This is a minimal setup for a GPS/GNSS receiver with a NEO-7N module:

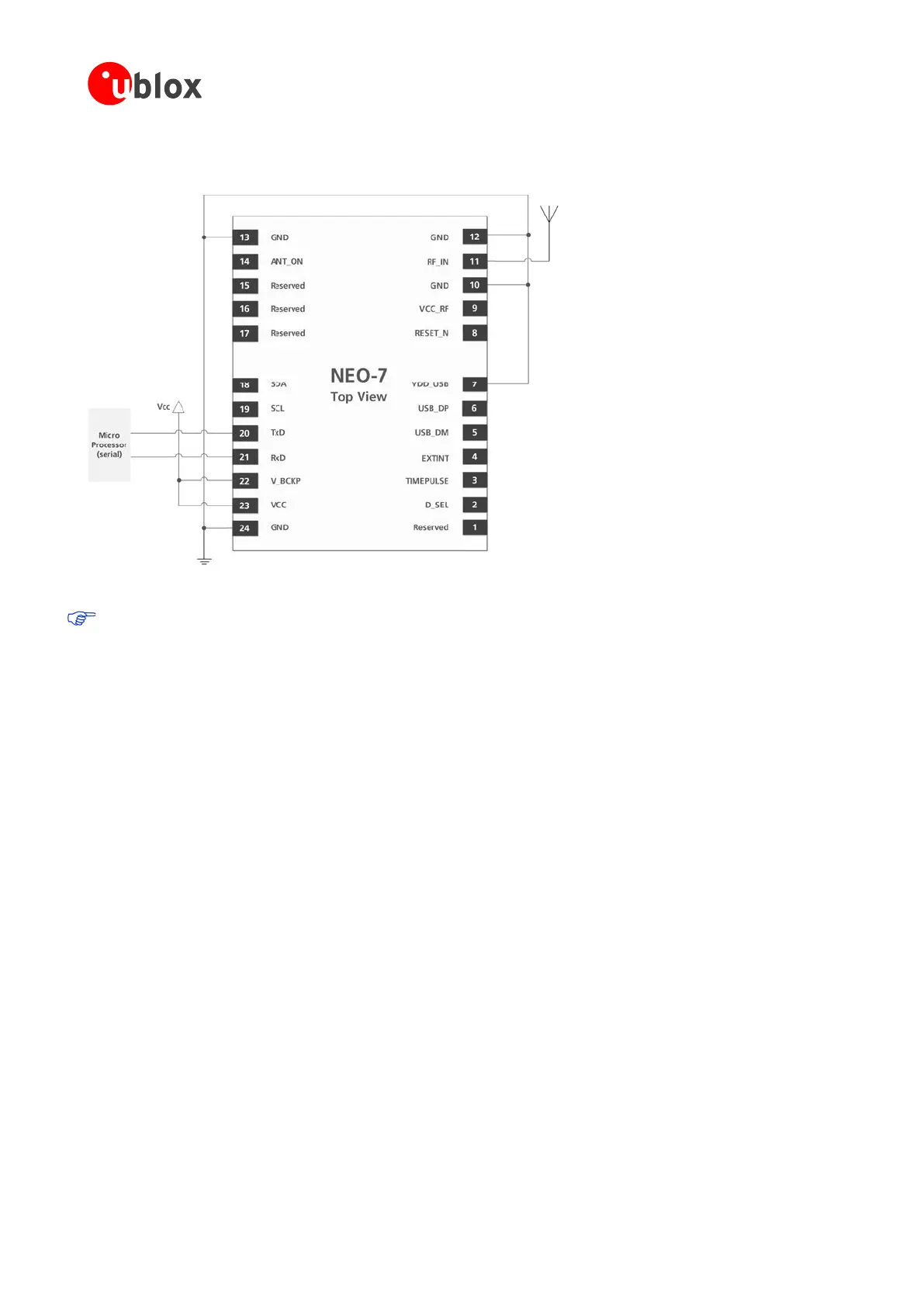

Figure 5: NEO-7 passive antenna design
For active antenna design, see section 3.4.2
