ZOE-M8 series - Hardware Integration Manual
UBX-16030136 - R07 Production Information Design-in
Page 17 of 32

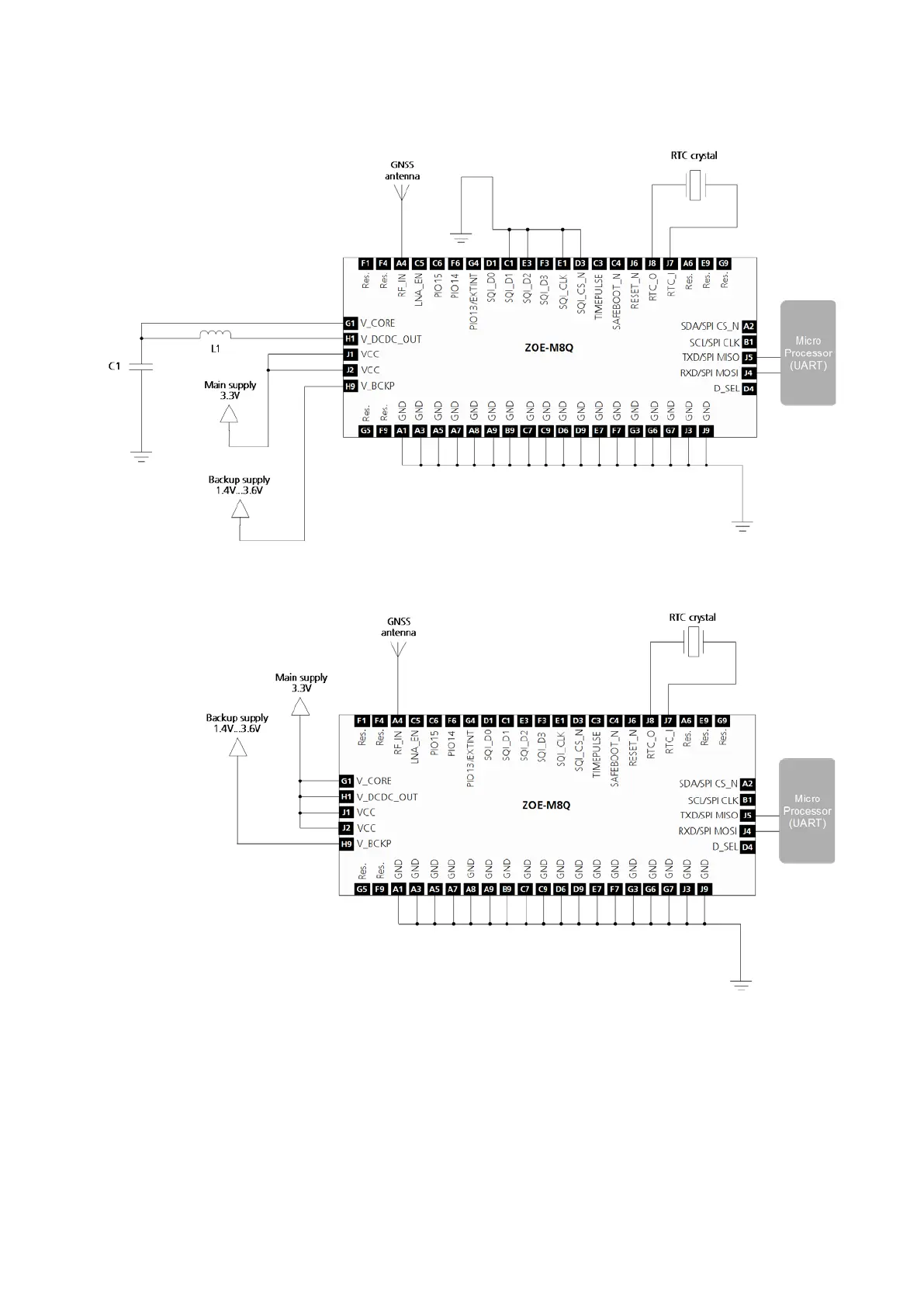

Figure 11: Typical schematic for the ZOE-M8Q using a DC/DC converter
Figure 12: Typical schematic for the ZOE-M8Q without a DC/DC converter
