ZOE-M8 series - Hardware Integration Manual
UBX-16030136 - R07 Production Information Design-in
Page 16 of 32

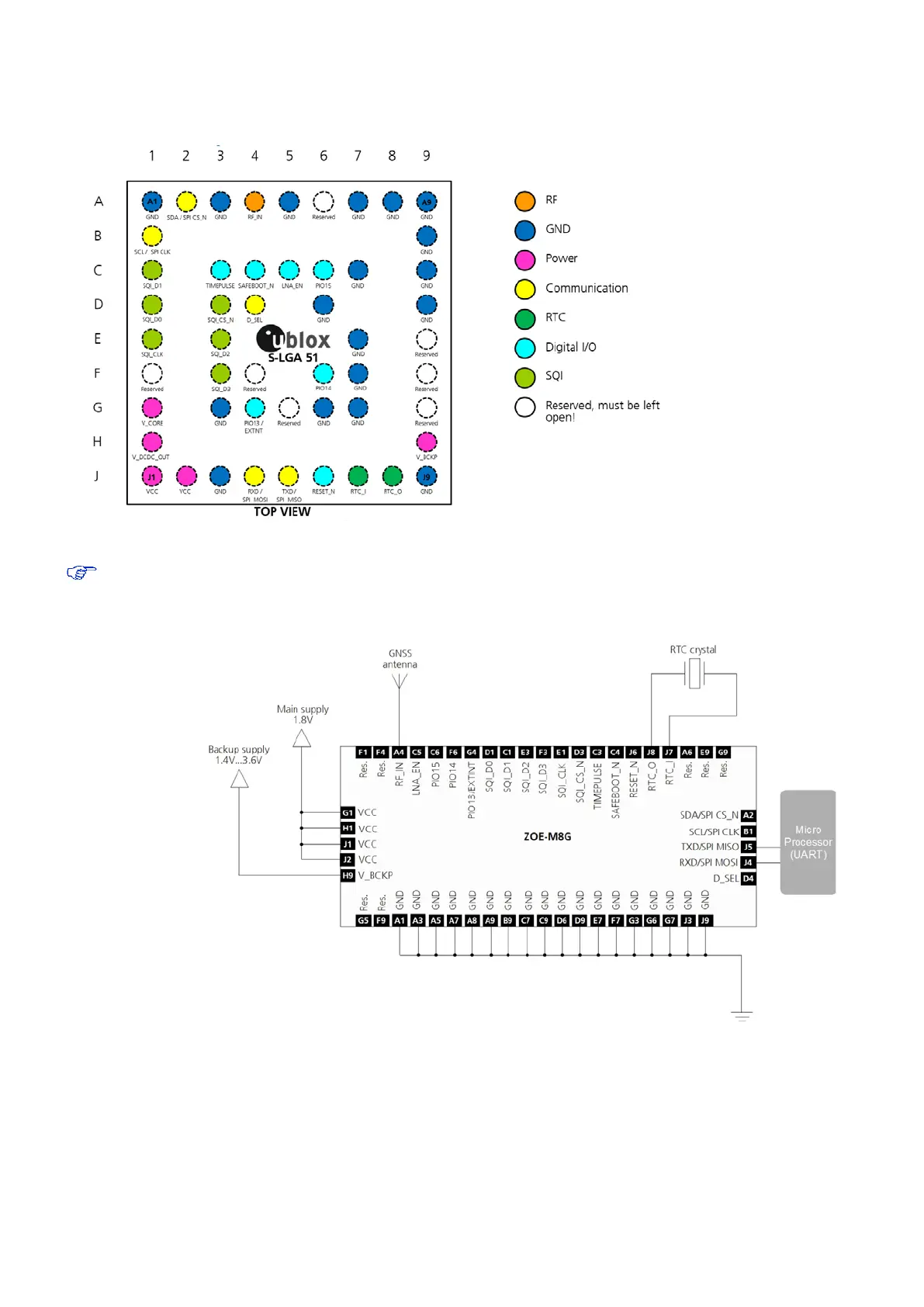

Figure 9: ZOE-M8Q pin assignment
For more information about the pin assignments, see the ZOE-M8 Data Sheet [1].
2.9 Typical schematic
Figure 10: Typical schematic for the ZOE-M8G
