U-Line Echelon 2075DWRR User Manual

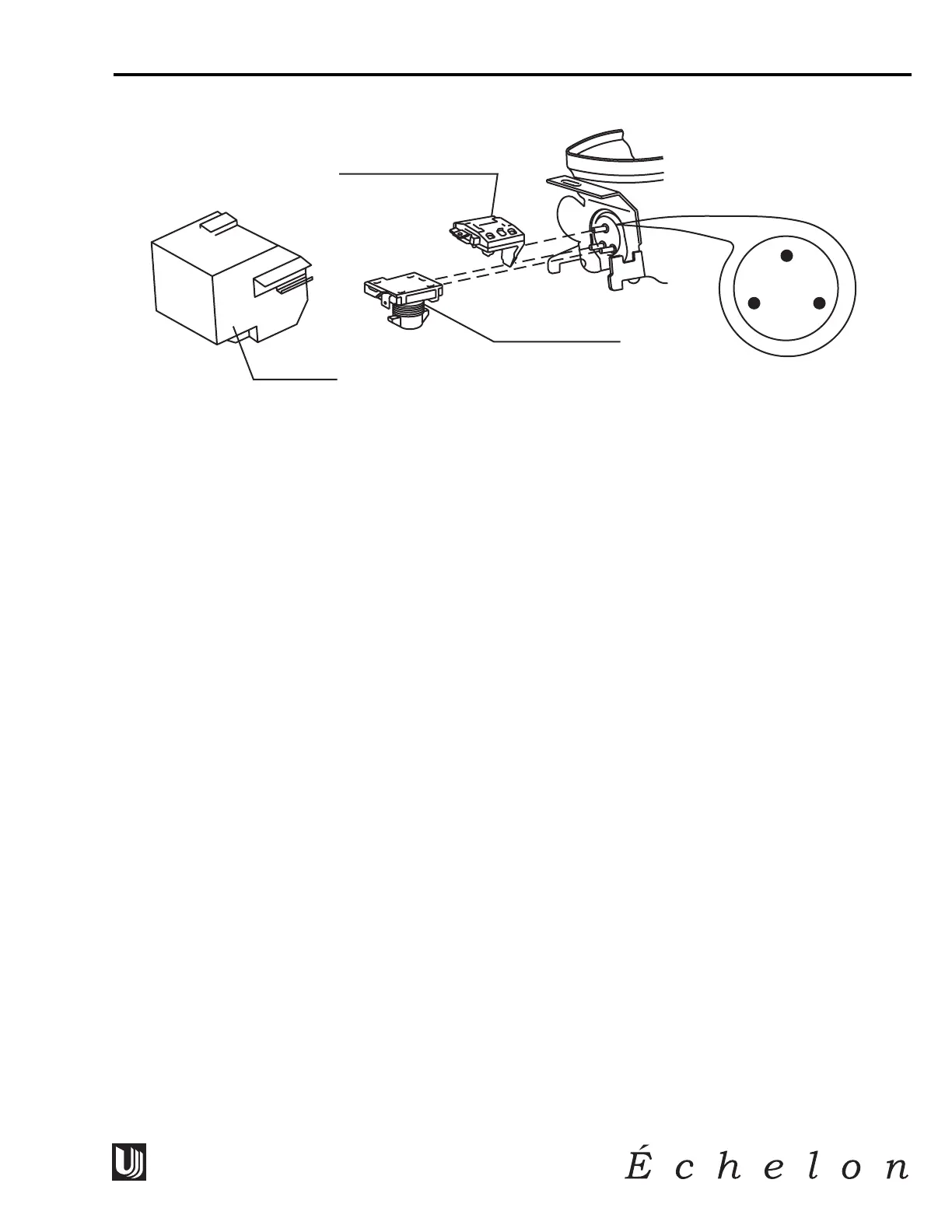

COMPRESSOR PINS
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should never measure any
resistance to ground. This would indicate a shorted compressor.
Specifications
EMI70HER Start Winding Resistance: 8 OHMS
EMI70HER Run Winding Resistance: 3 OHMS
115 VOLT Ice Maker Heater Resistance: 80 OHMS
115 VOLT Water Valve Coil Resistance: 335 OHMS
115 VOLT Bypass Valve Coil Resistance: 380 OHMS
C
S
R
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
UL183-3D
EMI70HER
CO2075DWR
