U-LINE FROST FREE REFRIGERATION SYSTEM
Cooling Mode:
• Bypass solenoid valve closed
• Evaporator fan operating
• Refrigerant flows through capillary tube
• Normal vapor/compression cycle refrigeration
Defrost Mode:
• Bypass solenoid valve open
• Refrigerant flows through bypass system
•Vapor flows from condenser to evaporator without a phase change
THERMISTORS
There are three thermistors to sense the refrigerator, freezer and icemaker temperature. These are used in
conjunction with the control board to control compartment temperatures and initiate ice harvest.
Thermistors generally fail due to moisture or physical damage.

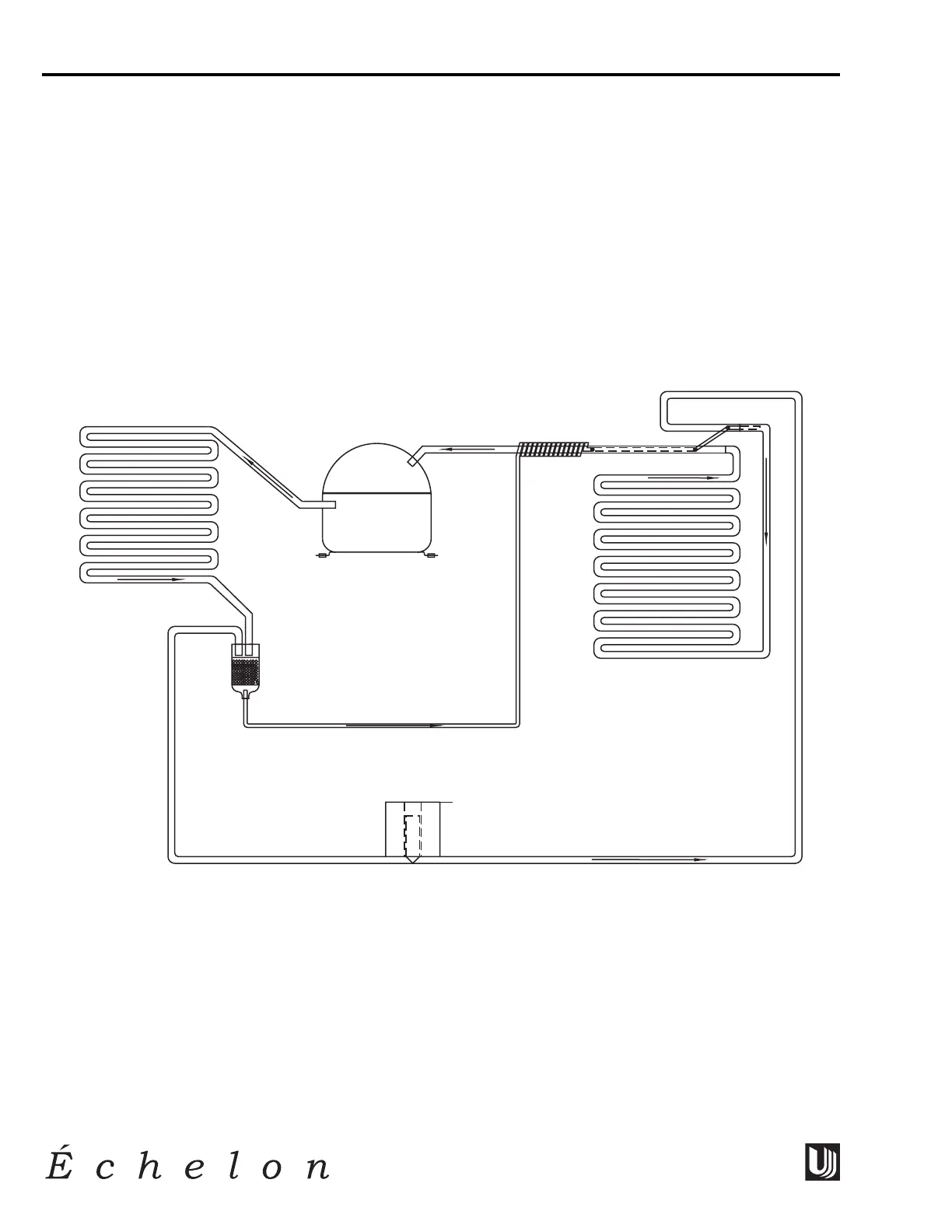

SOLENOID VALVE
CAPILLARY TUBE
VALVE IS CLOSED
FLOW WHEN SOLENOID
DRYER
CONDENSER
COMPRESSOR
EVAPORATOR
VALVE IS OPEN
FLOW WHEN SOLENOID
UL183-2
CO2075DWR
