DISASSEMBLY PROCEDURES
Note: Échelon models do not require removal of the ice maker or freezer housing to access the fan
motor, drain or evaporator.

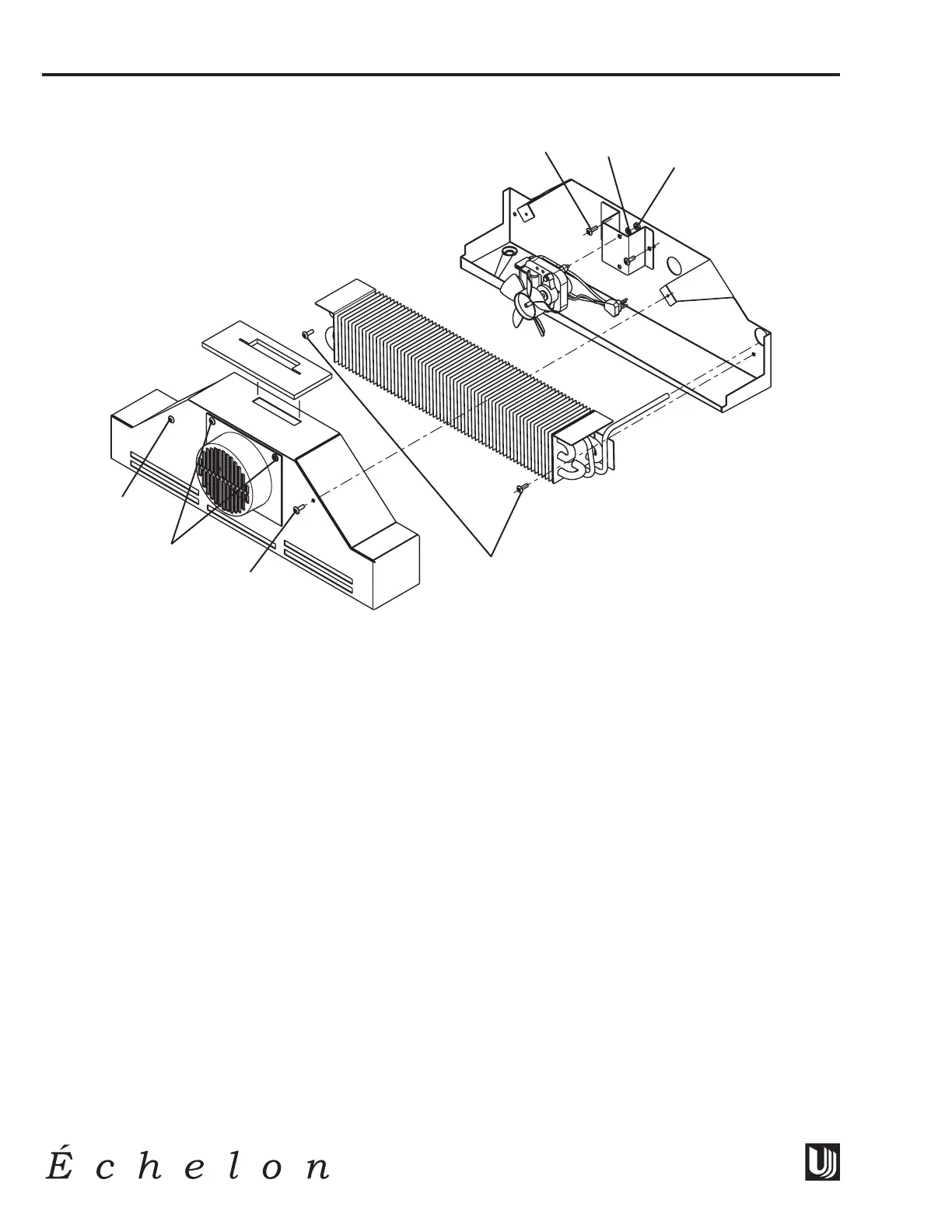

To replace evaporator fan motor:
1. Disconnect unit from power source.
2. Remove two screws (1) holding evaporator fan cover to evaporator cover.
3. Unplug fan connection.
4. Remove two nuts (4) and two washers (5) holding the fan to the fan bracket.
5. Replace with new fan.
6. Plug-in the fan connection making sure the fan wires are tucked behind the fan bracket.
7. Re-install evaporator cover.
8. Re-install unit and test.
To access evaporator and drain pan:
1. Disconnect unit from power source.
2. Remove two screws (2) holding evaporator cover to drain pan.
3. Remove two screws (6) holding evaporator to drain pan.
4. Remove two screws (3) holding fan bracket to drain pan.
5. Unplug fan connection.
6. Re-install parts in reverse order.
7. Re-install unit and test.
