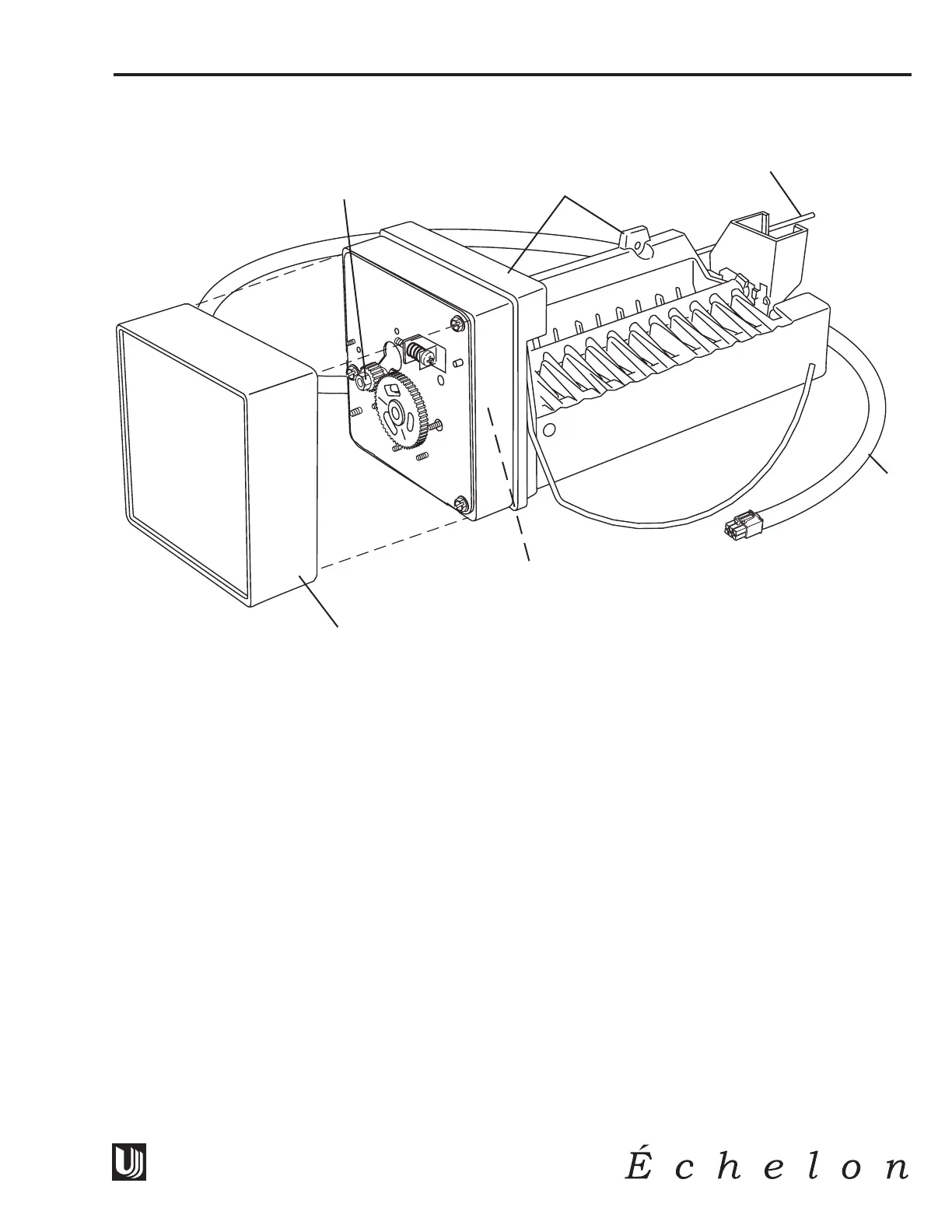

REPLACING ICE MAKER ASSEMBLY
1. Remove unit from installation.
2. Disconnect water and unplug unit.
3. Disconnect ice maker wire harness at plug in back of unit (1).
4. Remove thermistor from the sensing tube on ice maker assembly (2).
5. Remove water inlet tube.
6. Remove front cover (3).
7. Advance ejector blade to the 3 o’clock position by turning the 5/16" hex head on the small brass gear
counterclockwise (4).
8. Remove two screws from icemaker bracket (5).
9. Remove ice maker assembly.
10. Install new ice maker assembly.
11. Reconnect plug.
12. Insert thermistor ice maker sensing tube.
13. Insert water inlet tube.
14. Apply Permagum
®
to all exit holes.
15. Install back panel.
16. Plug in unit and test.
