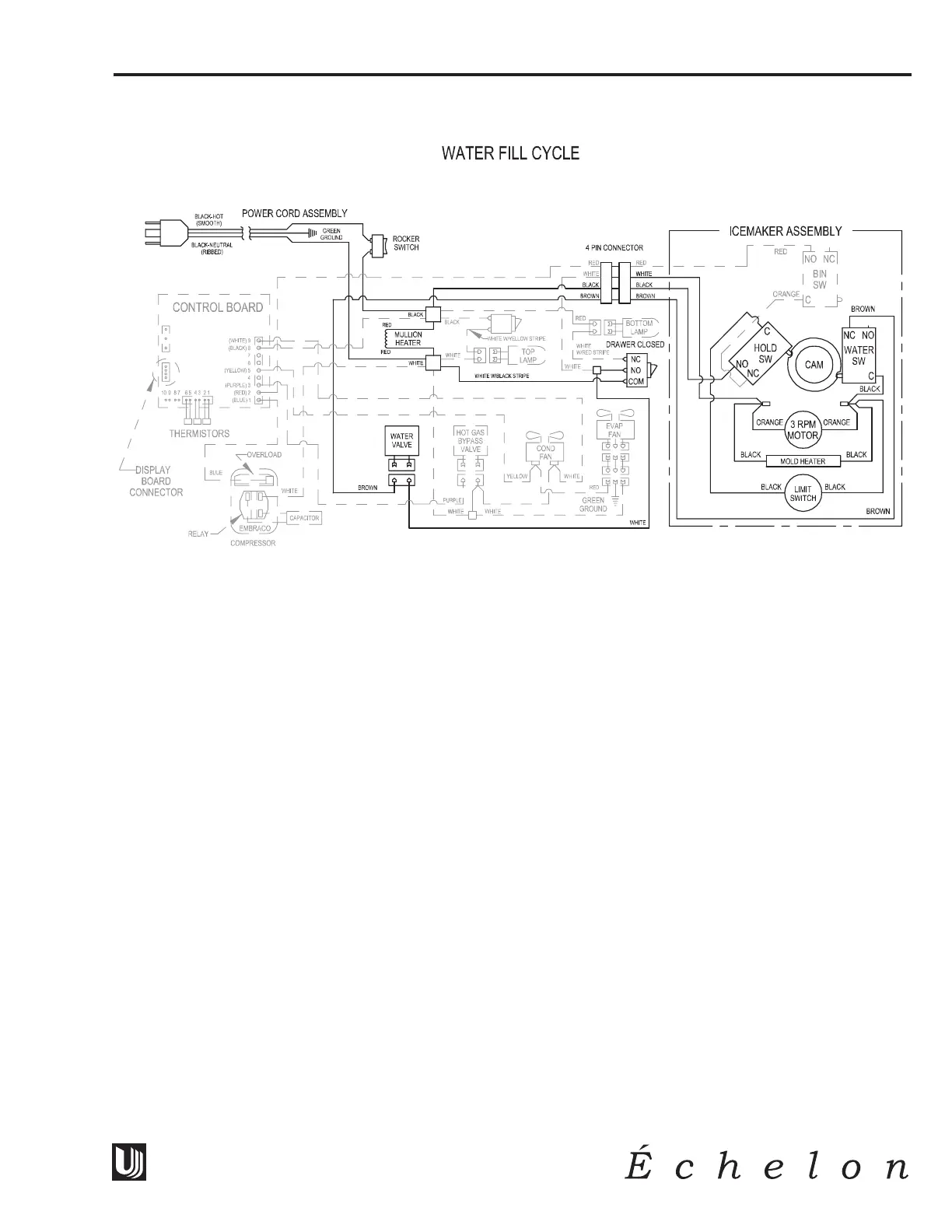

4. Water fill cycle
• This cycle initiates when the blades move to approximately the 10 o’clock position.
• At this point the ice has moved out of the mold and is dropping into the bucket.
• The ice maker switch is depressed for about seven seconds while the mold fills with water. The
water fill is approximately 120 ml.
• At the end of the fill cycle, the blades stop at the 12 o’clock position and wait for another harvest
cycle to begin.
5. Storage mode
• The bin arm is in the up position, either held by ice in the bin or manually raised.
• The unit will be cycling the compressor on and off in this mode.
The ice maker relay will energize when the ice maker reaches 15°F, but with the bin arm in the raised
position, it will not start an ice making cycle.
