COMPRESSOR/ELECTRICAL SPECIFICATIONS
2075DWRWC

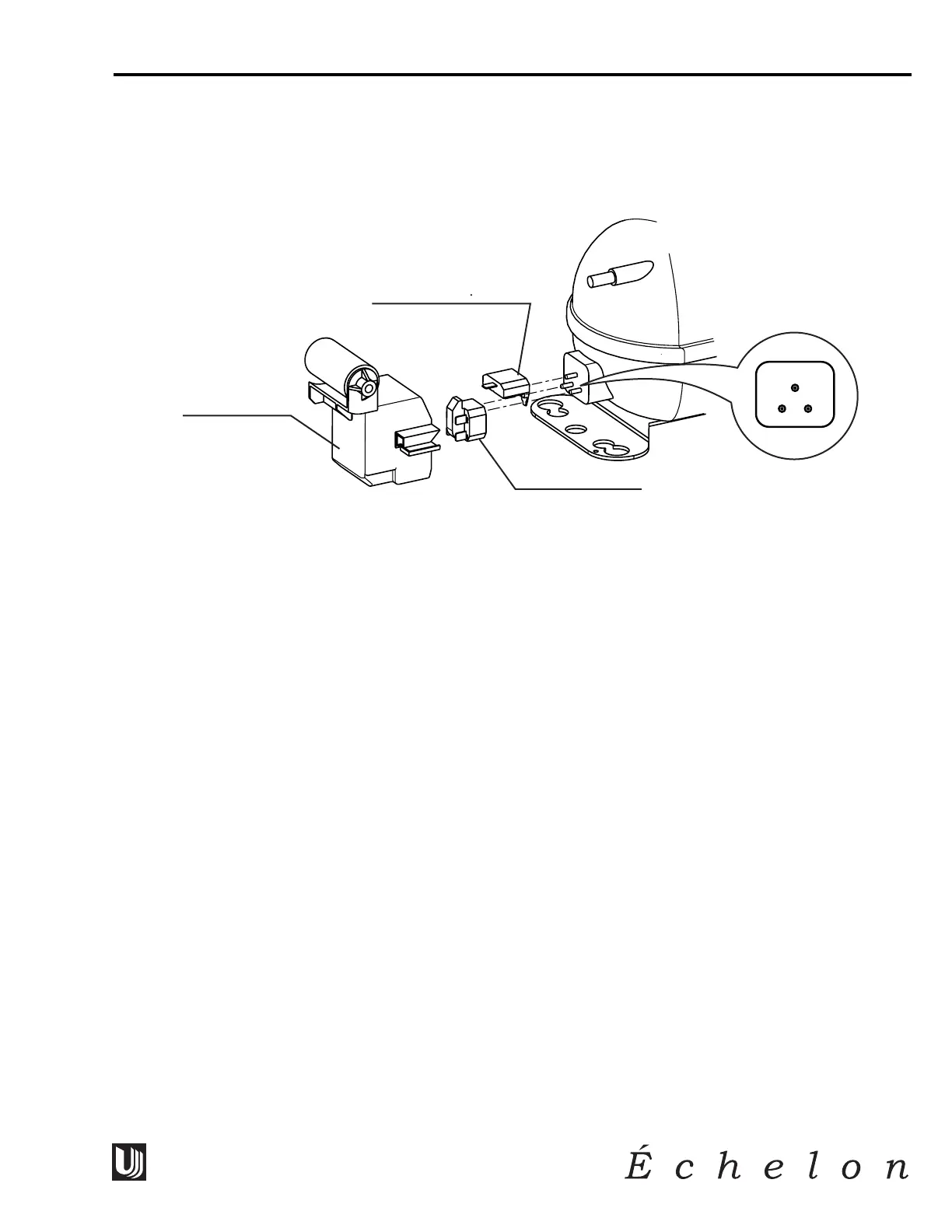

COMPRESSOR PINS
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should never measure any
resistance to ground. This would indicate a shorted compressor.
Specifications
EMU30HSC Start Winding Resistance: 28 OHMS
EMU30HSC Run Winding Resistance: 8 OHMS
115 VOLT Capacitor: 12 µF
115 VOLT Valve Coil Resistance: 380 OHMS
UL183-3C
OVERLOAD PROTECTOR
STARTING RELAY
RELAY COVER
EMU30HSC
C
S
R
2075DWRWC
23
