USER GUIDE
Cutout & Product Dimensions
19-11/16”
(500 mm)
19-11/16”
(500 mm)
11-13/16”
(300 mm)
19-11/16”
(500 mm)

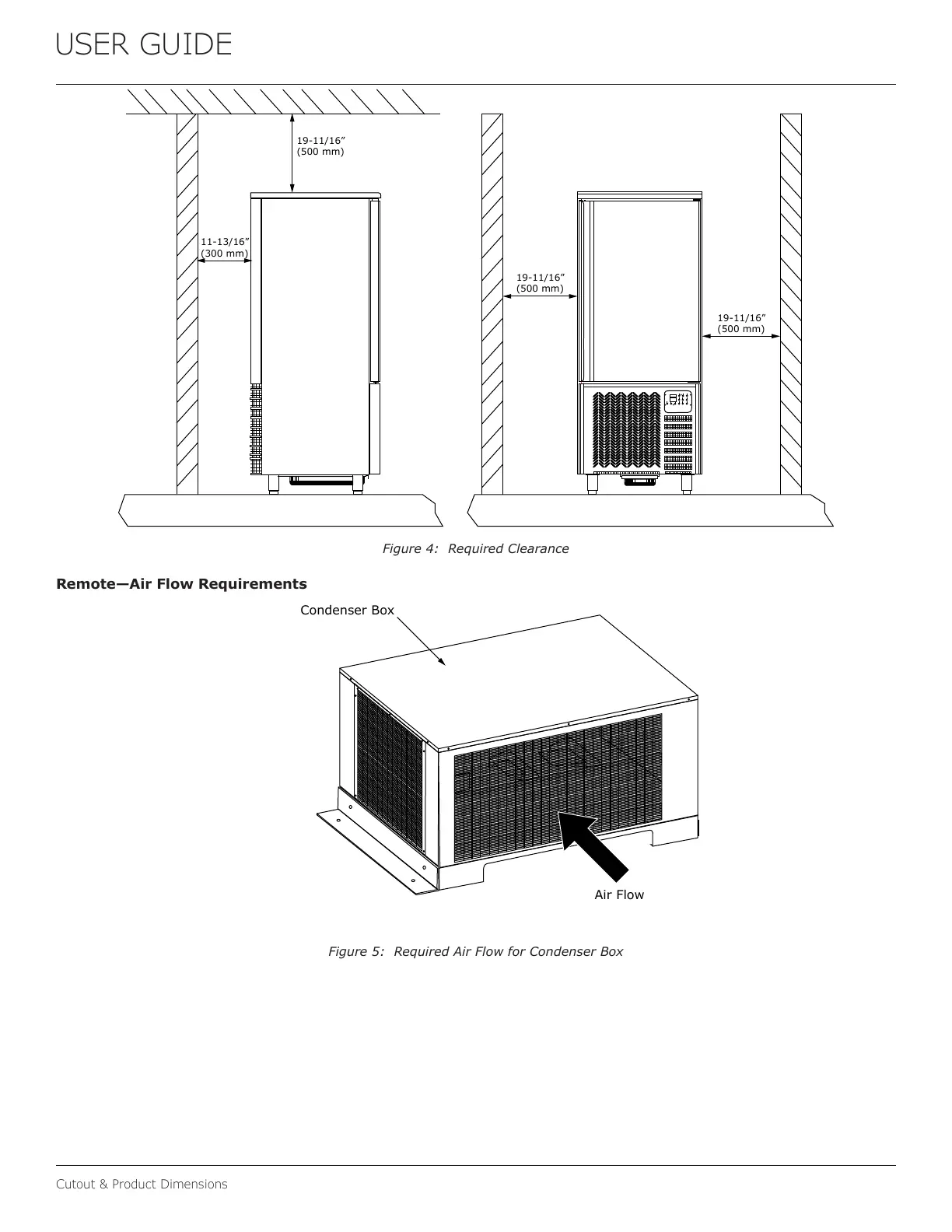

Figure 4: Required Clearance
Remote—Air Flow Requirements
Condenser Box
Air Flow
Figure 5: Required Air Flow for Condenser Box
14
