Cutout & Product Dimensions
Installation Requirement

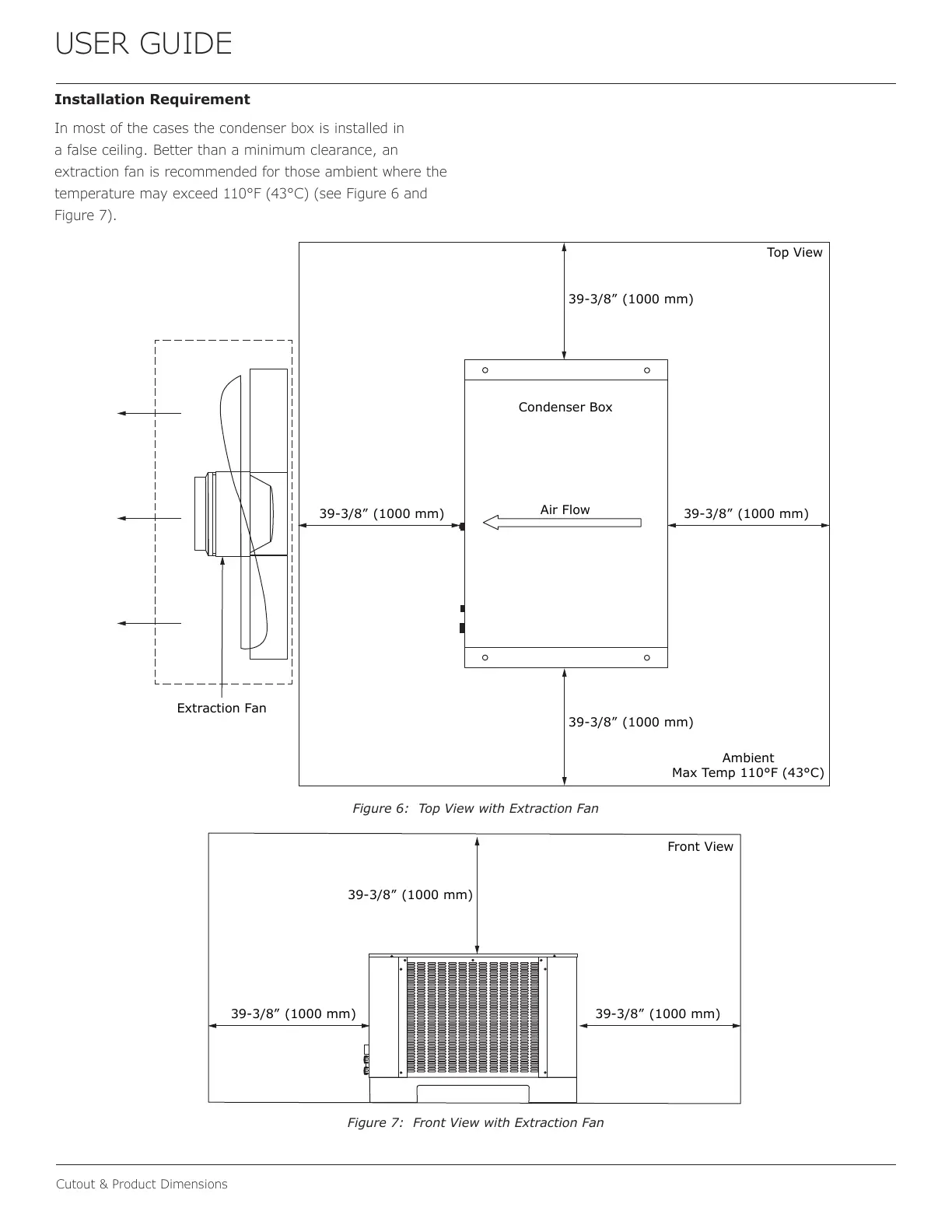

In most of the cases the condenser box is installed in
a false ceiling. Better than a minimum clearance, an
extraction fan is recommended for those ambient where the
temperature may exceed 110°F (43°C) (see Figure 6 and
Figure 7).
Extraction Fan
Condenser Box
Ambient
Max Temp 110°F (43°C)
Air Flow
39-3/8” (1000 mm)
39-3/8” (1000 mm) 39-3/8” (1000 mm)
39-3/8” (1000 mm)
Top View
Figure 6: Top View with Extraction Fan
39-3/8” (1000 mm)
39-3/8” (1000 mm) 39-3/8” (1000 mm)
Front View
Figure 7: Front View with Extraction Fan
15
