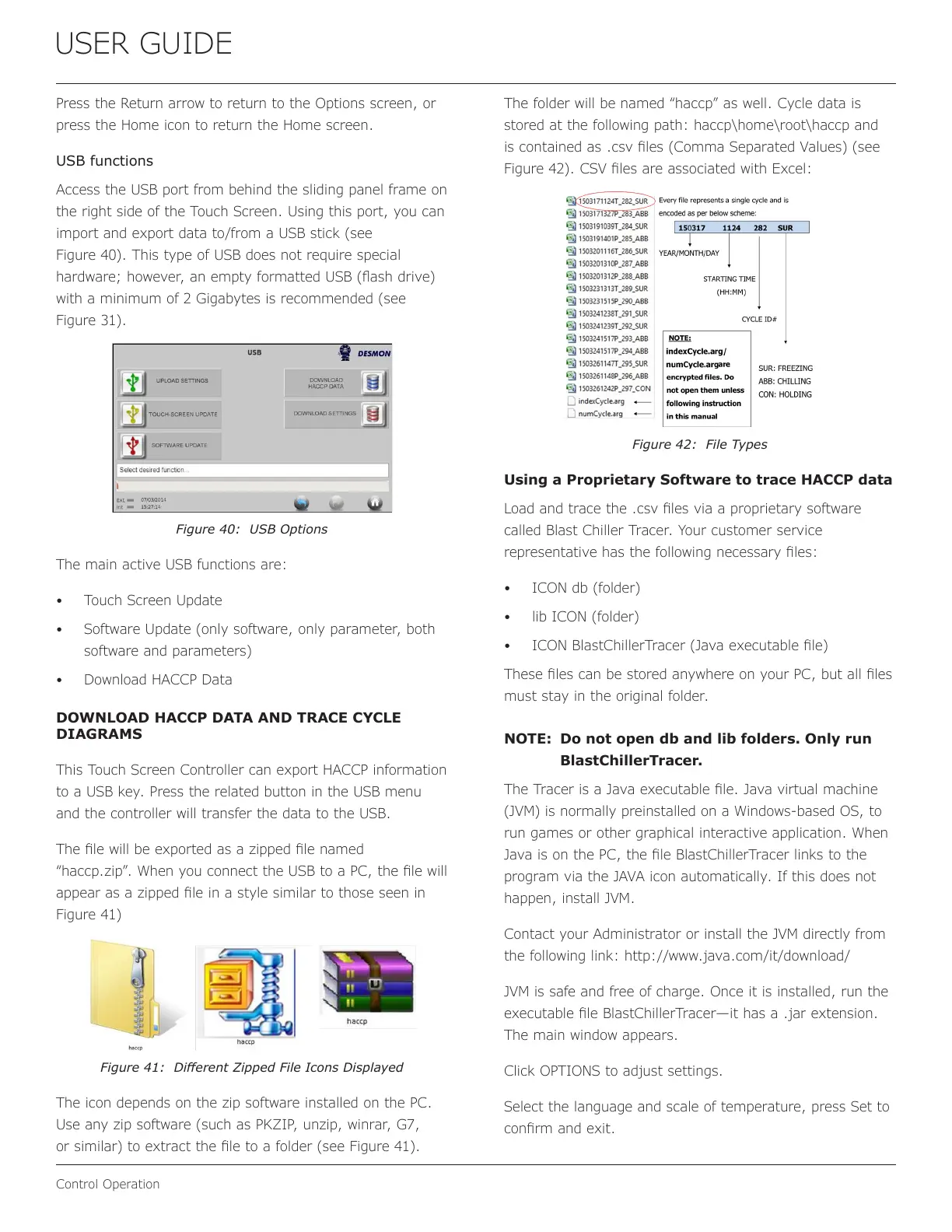

USER GUIDE
Control Operation
Press the Return arrow to return to the Options screen, or
press the Home icon to return the Home screen.
USB functions
Access the USB port from behind the sliding panel frame on
the right side of the Touch Screen. Using this port, you can
import and export data to/from a USB stick (see
Figure 40). This type of USB does not require special
hardware; however, an empty formatted USB (ash drive)
with a minimum of 2 Gigabytes is recommended (see
Figure 31).
Figure 40: USB Options
The main active USB functions are:
Touch Screen Update
Software Update (only software, only parameter, both
software and parameters)
Download HACCP Data
DOWNLOAD HACCP DATA AND TRACE CYCLE
DIAGRAMS
This Touch Screen Controller can export HACCP information
to a USB key. Press the related button in the USB menu
and the controller will transfer the data to the USB.
The le will be exported as a zipped le named
“haccp.zip”. When you connect the USB to a PC, the le will
appear as a zipped le in a style similar to those seen in
Figure 41)
Figure 41: Dierent Zipped File Icons Displayed
The icon depends on the zip software installed on the PC.
Use any zip software (such as PKZIP, unzip, winrar, G7,
or similar) to extract the le to a folder (see Figure 41).
The folder will be named “haccp” as well. Cycle data is
stored at the following path: haccp\home\root\haccp and
is contained as .csv les (Comma Separated Values) (see
Figure 42). CSV les are associated with Excel:
Figure 42: File Types
Using a Proprietary Software to trace HACCP data
Load and trace the .csv les via a proprietary software
called Blast Chiller Tracer. Your customer service
representative has the following necessary les:
ICON db (folder)
lib ICON (folder)
ICON BlastChillerTracer (Java executable le)
These les can be stored anywhere on your PC, but all les
must stay in the original folder.
NOTE: Do not open db and lib folders. Only run
BlastChillerTracer.
The Tracer is a Java executable le. Java virtual machine
(JVM) is normally preinstalled on a Windows-based OS, to
run games or other graphical interactive application. When
Java is on the PC, the le BlastChillerTracer links to the
program via the JAVA icon automatically. If this does not
happen, install JVM.
Contact your Administrator or install the JVM directly from
the following link: http://www.java.com/it/download/
JVM is safe and free of charge. Once it is installed, run the
executable le BlastChillerTracer—it has a .jar extension.
The main window appears.
Click OPTIONS to adjust settings.
Select the language and scale of temperature, press Set to
conrm and exit.
27
