USER GUIDE
System Diagnosis Guide
Optional (also written “Option” in some software
release)

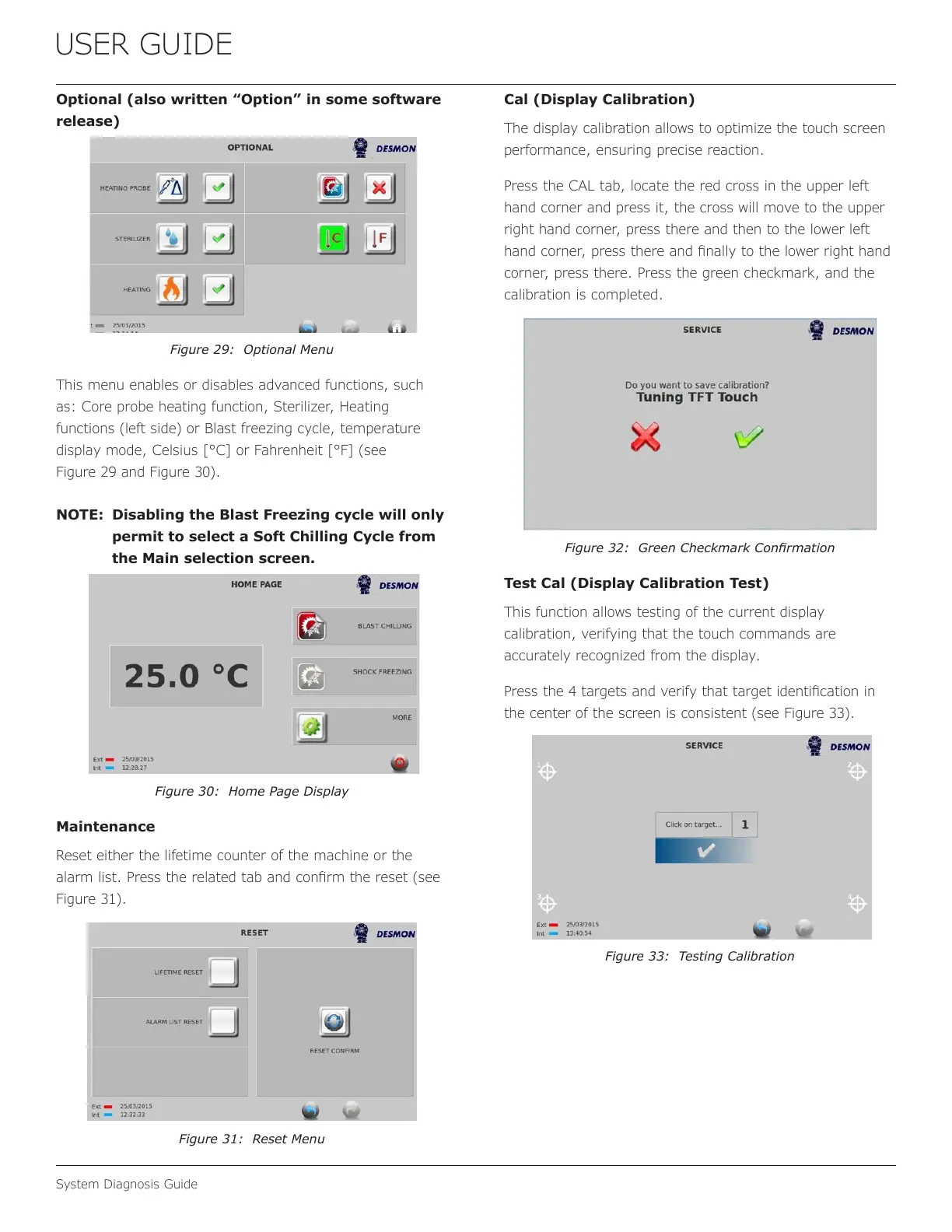

Figure 29: Optional Menu
This menu enables or disables advanced functions, such
as: Core probe heating function, Sterilizer, Heating
functions (left side) or Blast freezing cycle, temperature
display mode, Celsius [°C] or Fahrenheit [°F] (see
Figure 29 and Figure 30).
NOTE: Disabling the Blast Freezing cycle will only
permit to select a Soft Chilling Cycle from
the Main selection screen.
Figure 30: Home Page Display
Maintenance
Reset either the lifetime counter of the machine or the
alarm list. Press the related tab and conrm the reset (see
Figure 31).
Figure 31: Reset Menu
Cal (Display Calibration)
The display calibration allows to optimize the touch screen
performance, ensuring precise reaction.
Press the CAL tab, locate the red cross in the upper left
hand corner and press it, the cross will move to the upper
right hand corner, press there and then to the lower left
hand corner, press there and nally to the lower right hand
corner, press there. Press the green checkmark, and the
calibration is completed.
Figure 32: Green Checkmark Conrmation
Test Cal (Display Calibration Test)
This function allows testing of the current display
calibration, verifying that the touch commands are
accurately recognized from the display.
Press the 4 targets and verify that target identication in
the center of the screen is consistent (see Figure 33).
Figure 33: Testing Calibration
65
