USER GUIDE
System Diagnosis Guide

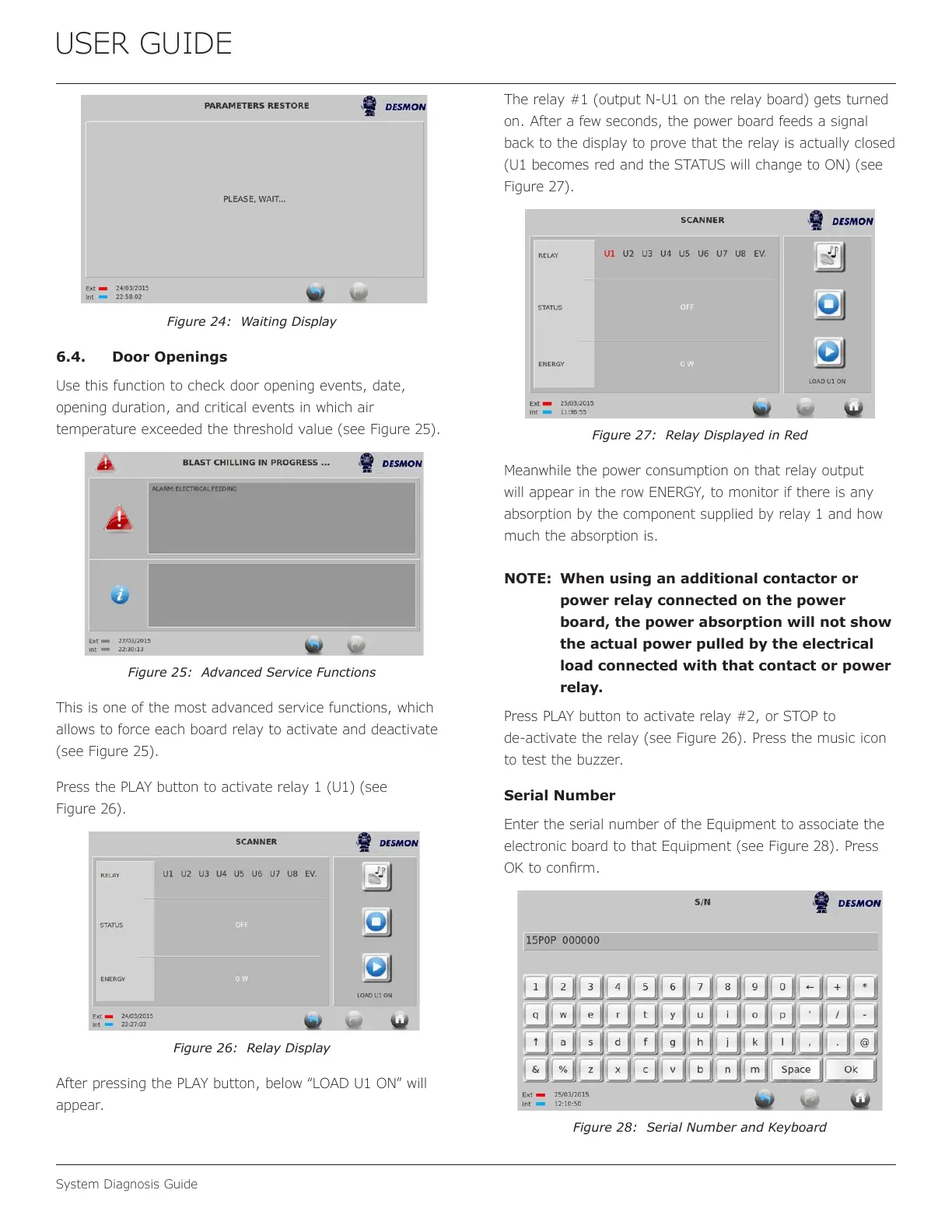

Figure 24: Waiting Display
6.4. Door Openings
Use this function to check door opening events, date,
opening duration, and critical events in which air
temperature exceeded the threshold value (see Figure 25).
Figure 25: Advanced Service Functions
This is one of the most advanced service functions, which
allows to force each board relay to activate and deactivate
(see Figure 25).
Press the PLAY button to activate relay 1 (U1) (see
Figure 26).
Figure 26: Relay Display
After pressing the PLAY button, below “LOAD U1 ON” will
appear.
The relay #1 (output N-U1 on the relay board) gets turned
on. After a few seconds, the power board feeds a signal
back to the display to prove that the relay is actually closed
(U1 becomes red and the STATUS will change to ON) (see
Figure 27).
Figure 27: Relay Displayed in Red
Meanwhile the power consumption on that relay output
will appear in the row ENERGY, to monitor if there is any
absorption by the component supplied by relay 1 and how
much the absorption is.
NOTE: When using an additional contactor or
power relay connected on the power
board, the power absorption will not show
the actual power pulled by the electrical
load connected with that contact or power
relay.
Press PLAY button to activate relay #2, or STOP to
de-activate the relay (see Figure 26). Press the music icon
to test the buzzer.
Serial Number
Enter the serial number of the Equipment to associate the
electronic board to that Equipment (see Figure 28). Press
OK to conrm.
Figure 28: Serial Number and Keyboard
64
