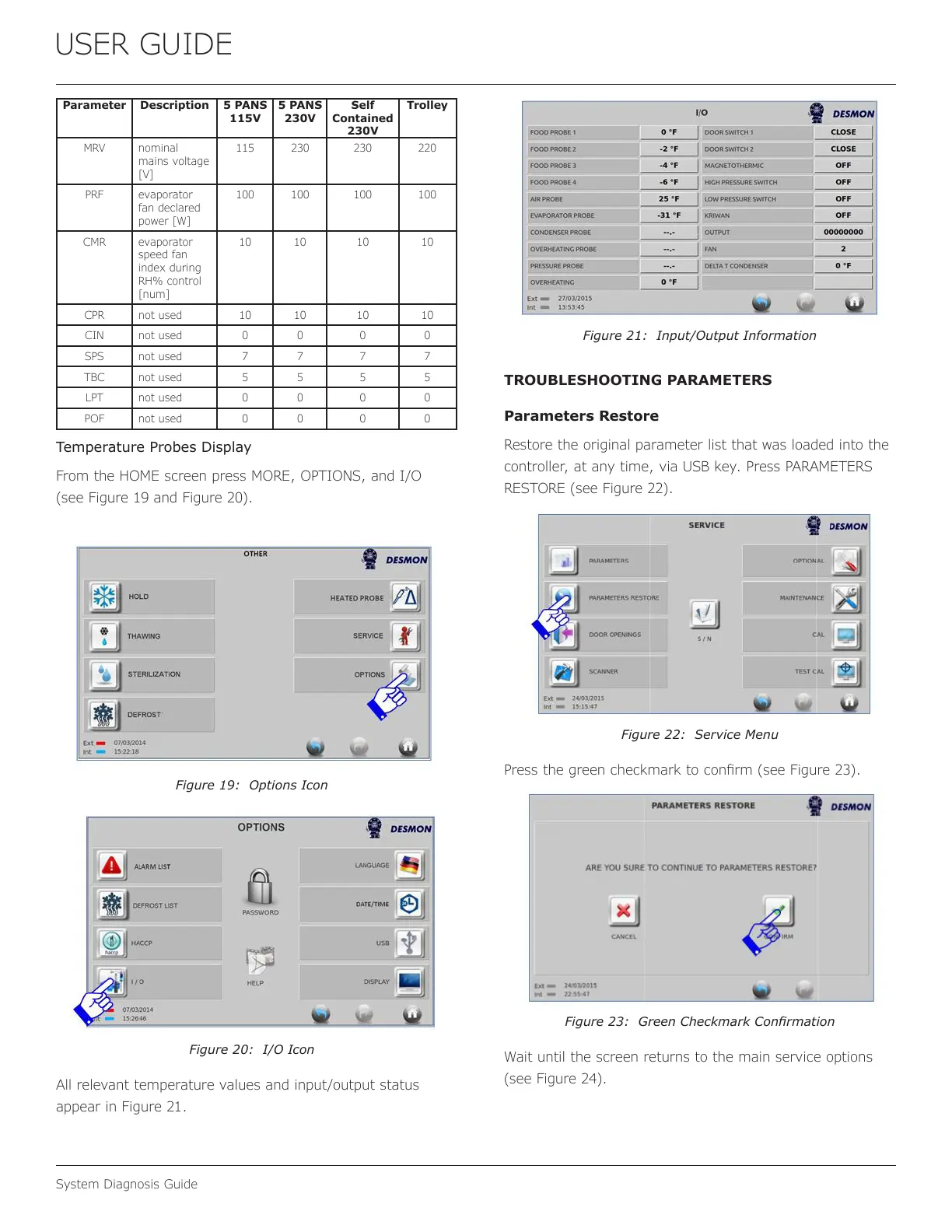

USER GUIDE
System Diagnosis Guide
Parameter Description 5 PANS
115V
5 PANS
230V
Self
Contained
230V
Trolley
MRV nominal
mains voltage
[V]
115 230 230 220
PRF evaporator
fan declared
power [W]
100 100 100 100
CMR evaporator
speed fan
index during
RH% control
[num]
10 10 10 10
CPR not used 10 10 10 10
CIN not used 0 0 0 0
SPS not used 7 7 7 7
TBC not used 5 5 5 5
LPT not used 0 0 0 0
POF not used 0 0 0 0
Temperature Probes Display
From the HOME screen press MORE, OPTIONS, and I/O
(see Figure 19 and Figure 20).
Figure 19: Options Icon
Figure 20: I/O Icon
All relevant temperature values and input/output status
appear in Figure 21.
Figure 21: Input/Output Information
TROUBLESHOOTING PARAMETERS
Parameters Restore
Restore the original parameter list that was loaded into the
controller, at any time, via USB key. Press PARAMETERS
RESTORE (see Figure 22).
Figure 22: Service Menu
Press the green checkmark to conrm (see Figure 23).
Figure 23: Green Checkmark Conrmation
Wait until the screen returns to the main service options
(see Figure 24).
63
