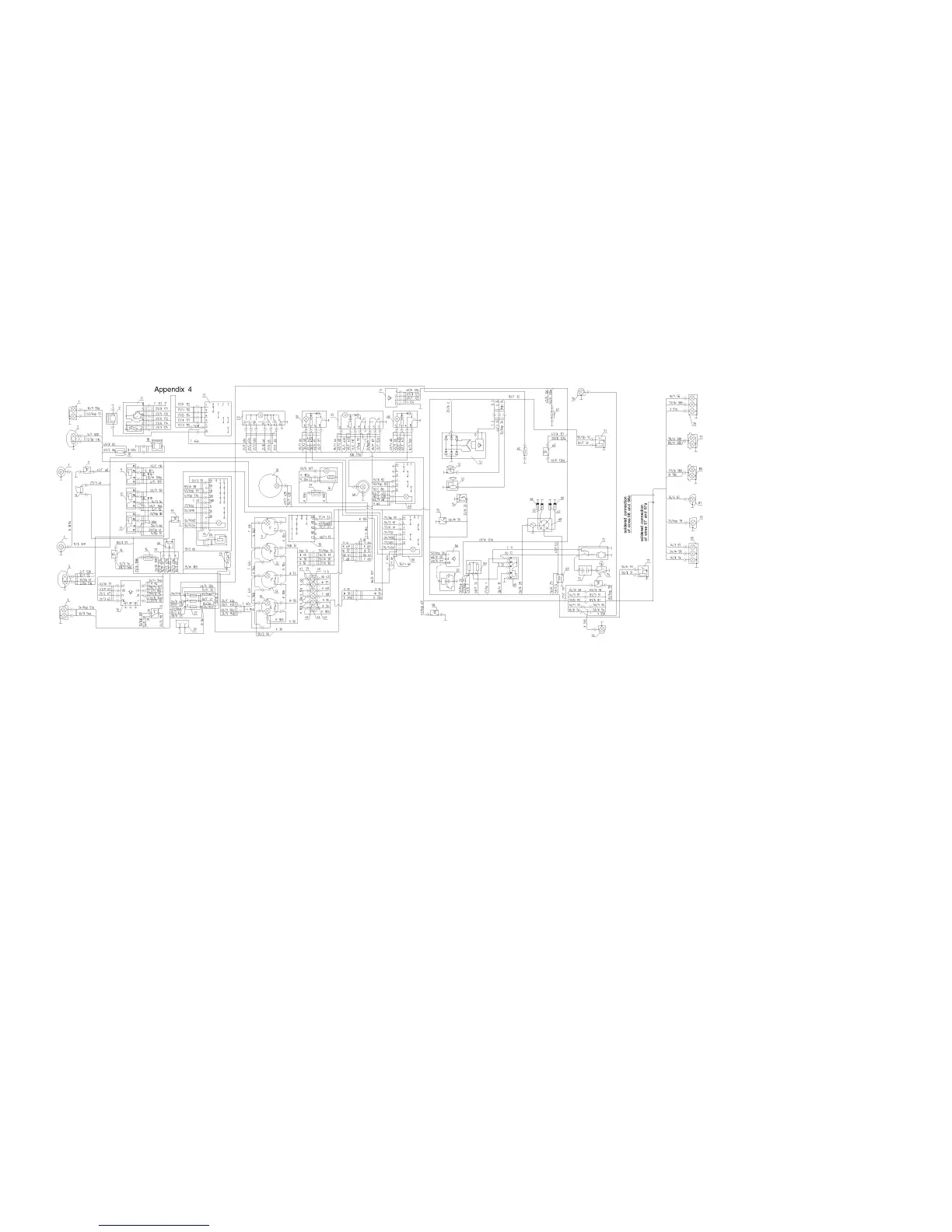

Fig. 5. Wiring Diagram of Automobile ÓÀÇ-39095:
1 -front lamp; 2 -headlamp; 3,4 -fog lamp; 5 -headlamp; 6 -front lamp; 7 -brake failure warning lamp switch; 8 -horn; 9 -electric washer; 10 -heater resistor; 11 -fog lamp relay;
12, 13 -headlamp switch relay; 14 -stop-light switch; 15 -fog lamp fuse; 16 -turn indicators and emergency warning lamp relay; 17 -windshield wiper; 18 -heater motor; 19 -horn
button; 20 -turn indicator switch; 21 -connection panel; 22 -headlamp switch; 23 -windshield wiper switch; 24 -outer lighting switch; 25 -instrument lighting rheostat; 26 -thermal
circuit breaker; 27 -fuse unit; 28 -receptacle; 29 -emergency warning lamp switch; 30 -speedometer; 31 -voltmeter; 32 -oil pressure transmitter; 33 -coolant temperature
transmitter; 34 -fuel level gauge; 35 -rear fog lamp switch; 36 -cigarette lighter; 37 -cigarette lighter fuse; 38 -ignition switch; 39 -high beam warning lamp; 40 -turn indicator
warning lamp; 41 -parking brake warning lamp; 42 -brake failure warning lamp; 43 -oil emergency pressure warning lamp; 44 -coolant emergency temperature warning lamp;
45 -fog lamp switch; 46 -cab dome lamp; 47 -carburettor electronic control unit; 48 -interior dome lamp switch; 49 -heater switch; 50 -fuel level transmitter selector switch;
51 -alternator 665.3701 or 16.3771; 52 -oil emergency pressure transmitter; 53 -oil pressure transmitter; 54 -coolant temperature transmitter; 55 -coolant emergency temperature
transmitter; 56 -transistor commutator; 57 -emergency vibrator; 58 -parking brake warning lamp switch; 59 -additional resistance; 60 -starter relay; 61 -carburettor electronic
control solenoid valve; 62 -carburettor solenoid valve; 63 -microswitch; 64-67 -spark plug; 68 -pickup-distributor; 69 -ignition coil; 70 -side repeater; 71, 77 -fuel level transmitter;
72 -starter; 73 -storage battery; 74 -ground switch; 75 -backing lamp switch; 76 -side repeater; 78 -rear lamp; 79, 80 -licence plate lamp; 81 -rear fog lamp; 82 -backing lamp;
83 -rear lamp
Wire Colour Code:
Á - white; Ã- blue; Æ - yellow; Ç - green; Ê- red; Êîð - brown; Îð - orange; Ñ - grey; Ô - violet; × - black
Wire designation denotes: the first one or two numerals (before a slant line) denote the instrument number in the diagram to which this wire is connected; one or several letters
(after a slant line) denote the wire colour; the last one or four signs denote the wire conventional number in the diagram
