27
(red); 19
1)
-coolant temperature gauge in the cylinder block
with built-in warning lamp in the radiator; 20 - main fuel tank
(left-hand) level gauge (on automobiles ÓÀÇ-33036,
ÓÀÇ-33095 and ÓÀÇ-3303, ÓÀÇ-33039 provided with two fuel
tanks the gauge indicates fuel level depending on position of the
switch 11); 21 - radiator coolant emergency overheating warning
lamp; 22 - oil emergency pressure warning lamp; 23 - high beam
warning lamp; 24 - dome lamp switch (as a version, the switch
is located next to the dome lamp); 25 - instrument lighting
adjuster.
PRESTARTING PROCEDURE
Dealers must give Your automobile a Free Service inspection
laid down in the service book.
Before driving automobiles from the Manufacturer to Dis-
tributors/Dealers, it is necessary to carry out all the operations
laid down in the section "Daily Maintenance".
The automobile service life depends to a greater extent on the
operating mode during the initial service period. The running-
in kilometrage is equal to 1000 km.
AUTOMOBILE RUNNING-IN
During the running-in period, observe the following rules:
1. Do not overload the automobile.
2. Do not move on hard-surfaced roads (deep mud, sandy
soils, steep up-grades etc.)

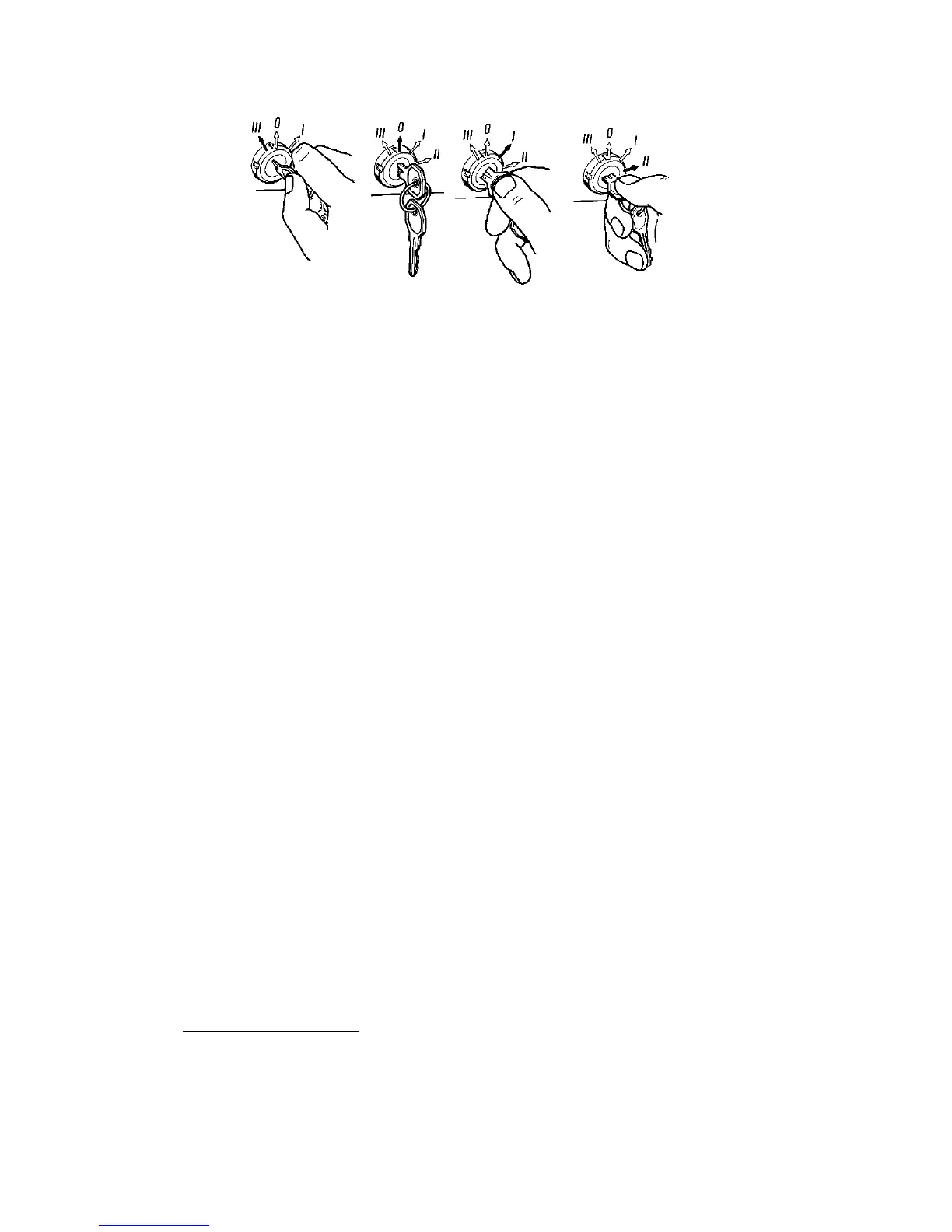

Fig. 15. Position of ignition key:
Î -neutral position; I -ignition ON; II -ignition and starter ON; III -radio ON
(if available)
1)
On the automobiles ÓÀÇ-33036, ÓÀÇ-39094, ÓÀÇ-39095 the high beam
warning lamp, oil emergency pressure warning lamp and radiator coolant
emergency overheating warning lamp are located in the warning lamp unit ( refer
to positions 21, 22, 23 Fig. 15).
