24
CONTROLS AND EQUIPMENT OF DRIVER'S AND
PASSENGER'S SEATS
Arrangement of the controls is illustrated in Fig. 11:
1 - instrument panel; 2 -turn indicator switch lever: the
switch lever is automatically returned into the neutral position
when the steering wheel is rotated in the reverse direction (when
the automobile recovers from a turn); 3 -horn; 4 -steering wheel;
5 - sun visor; 6 - dome lamp; 7 - grab handle; 8 - ash tray;
9 - door handle; 10 - gearshift lever (Fig.12); 11 - front axle cont-
rol lever (Fig. 12) has two positions: forward - the axle is ON;
the backward - the axle is OFF; 12 - transfer box shift lever
(Fig. 12) has three positions: forward - direct range is ON;

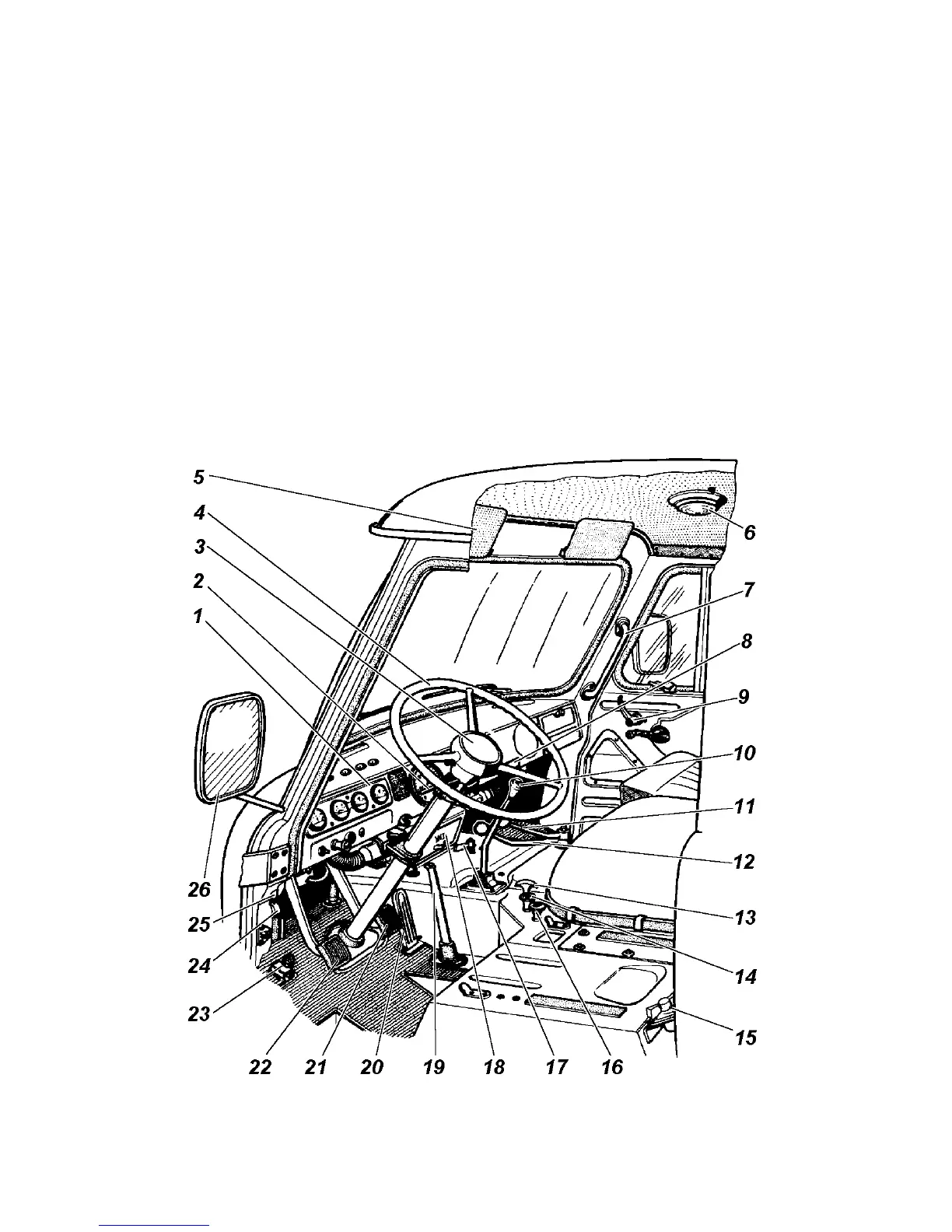

Fig. 11. Controls of automobile (for ref. nos. refer to text)
