Adjust the horn in a workshop.
Turn indicators. The turn indicators are switched on manu-
ally by means of the switch and switched off automatically.
Maintenance of the turn indicators comes to insuring a
clearance of 2-2.5 mm between the rubber roller of the switch
and the hub of the steering wheel with the switch lever set in the
neutral position. Adjust the clearance by moving the switch
along the bracket. Shift the switch lever from one into another
position smoothly without jerks and blows. Take care to prevent
getting of lubricant and water on the switch rubber roller and
keep the roller clean.
Overload Breakers
The circuits of the instruments, horn, heater motors and
windshield motor are protected by fuses. The fuse unit (Fig. 68)
provided with three fuse 10 A each is located under the
instrument panel on the l.h. pillar of the door aperture.
The fuse 1 protects the fog lamp circuit (refer to
Fig. 13, 14).
Before replacing the worn-out filament of the fuse link or
before switching on the thermal pushbutton cut-out, determine
the cause of overloading and eliminate defects.
Instrumentation and Warning Flashers
Instrumentation and warning flashers are intended to keep
watch on the condition and function of some mechanisms and
units in the automobile. They consists of: speedometer, voltme-

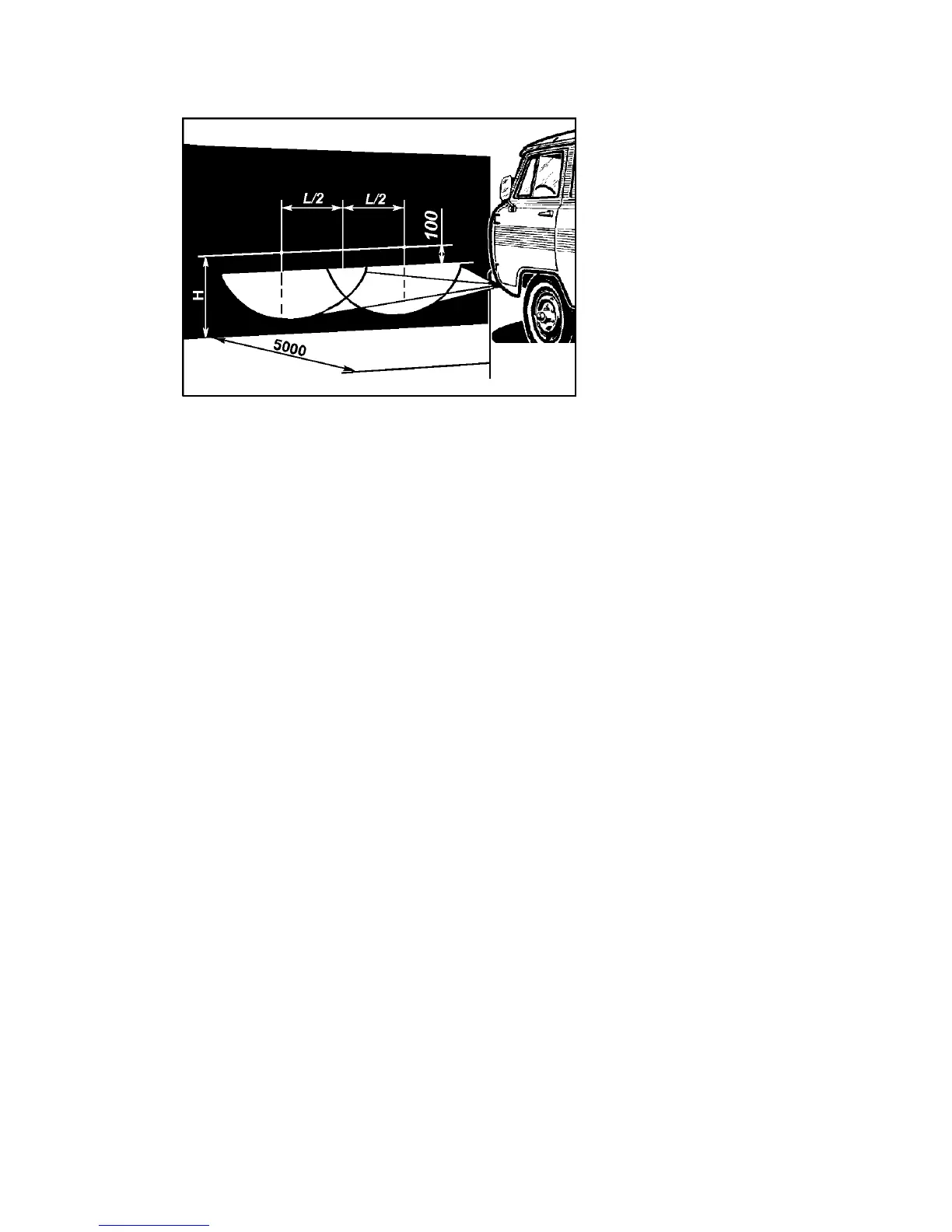

Fig. 67. Aiming screen
for fog headlamp adjust-
ment:
H - distance from
center of headlamps to
ground level
L - distance between cen-
ters of fog headlamps
