wiper is switched on by rotating the switch knob and the
windshield washer is switched on by depressing the switch knob
axially; 6
2)
- fog lamp switch; 7 -rear fog lamp switch with
integrated warning lamp; 8-heater fan electric motor switch;
9 - ash tray; 10
2)
- cigarette lighter; 11
3)
-fuel level gauge
selector switch; 12- emergency flasher warning system knob;
13- access cover to the reservoir to the clutch hydraulic system;
14- ammeter; 15-turn indicator warning lamp (green); 16-
hydraulic brake emergency condition warning lamp (red);
17
1)
-engine lubrication system oil pressure gauge with low oil
pressure built-in warning lamp; 18-parking brake warning lamp
1)
On the automobiles ÓÀÇ-33036, ÓÀÇ-39094, ÓÀÇ-39095 the high beam
warning lamp, oil emergency pressure warning lamp and radiator coolant
emergency overheating warning lamp are located in the warning lamp unit ( refer
to positions 21, 22, 23 Fig. 15).
2)
Installed depending upon a complete equipment of the automobile.
3)
Installed on the automobiles ÓÀÇ-33036, ÓÀÇ-39095 and on the automobiles
ÓÀÇ-3303, ÓÀÇ-33039 provided with the auxiliary fuel tank.

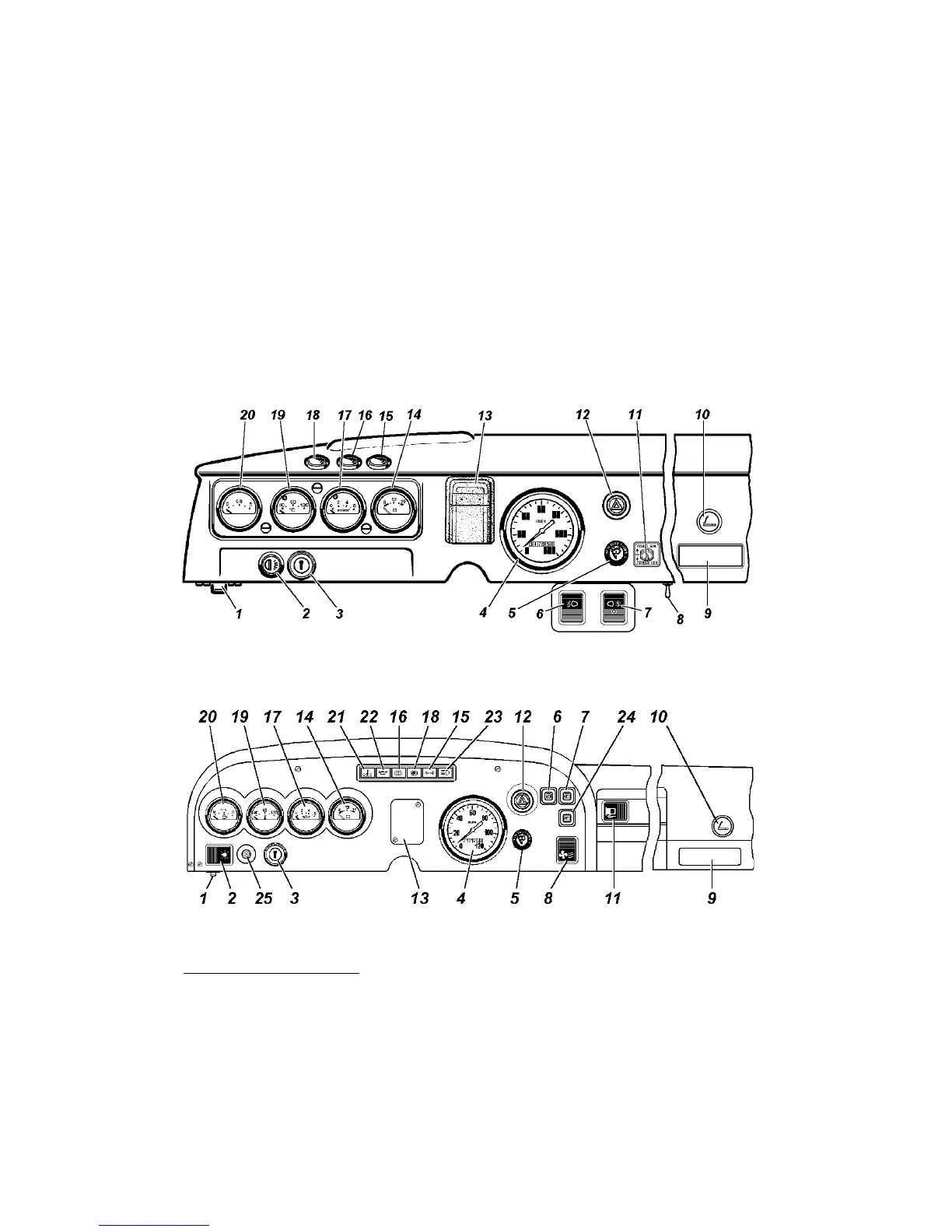

Fig. 13. Instrument panel of automobiles ÓÀÇ-3741, ÓÀÇ-3962, ÓÀÇ-3909,
ÓÀÇ-2206, ÓÀÇ-3303 (for ref. nos., refer to text)
Fig. 14. Instrument panel of automobiles ÓÀÇ-33036, ÓÀÇ-39094,
ÓÀÇ-39095 (for ref. nos., refer to text)
