UAZ 3303 - Page 36

36

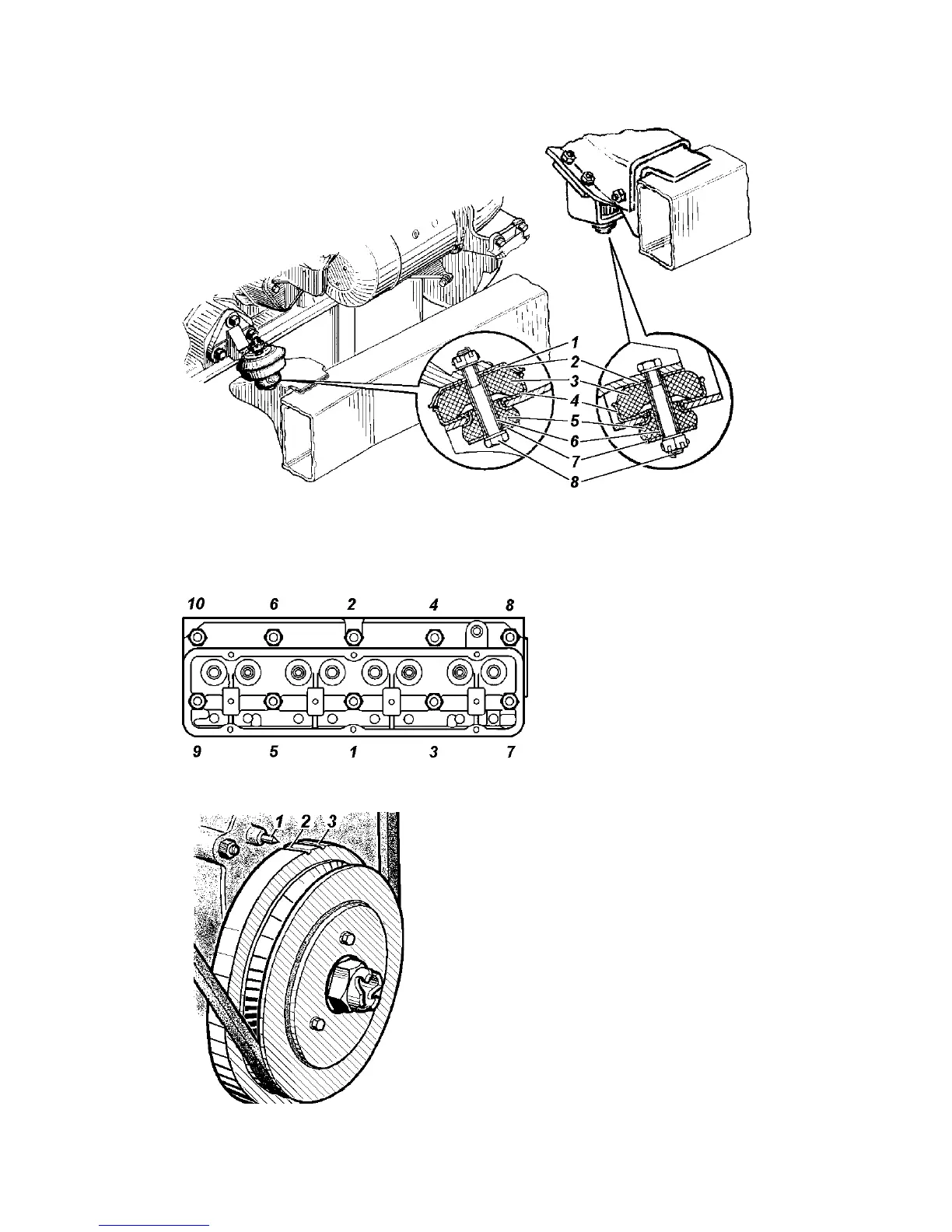

Fig. 19. Sequence of tightening
cylinder head nuts
Fig. 18. Engine mounting:
1 -protective cover; 2 -washer; 3 -upper pad; 4 -seat; 5 -lower pad; 6 -distance
sleeve; 7 -washer; 8 -bolt
Fig. 20. Timing marks on crankshaft pulley:
1 -index pointer; 2 -mark for setting TDC;
3 -mark for ignition timing
