UAZ 3303 - Page 68

68

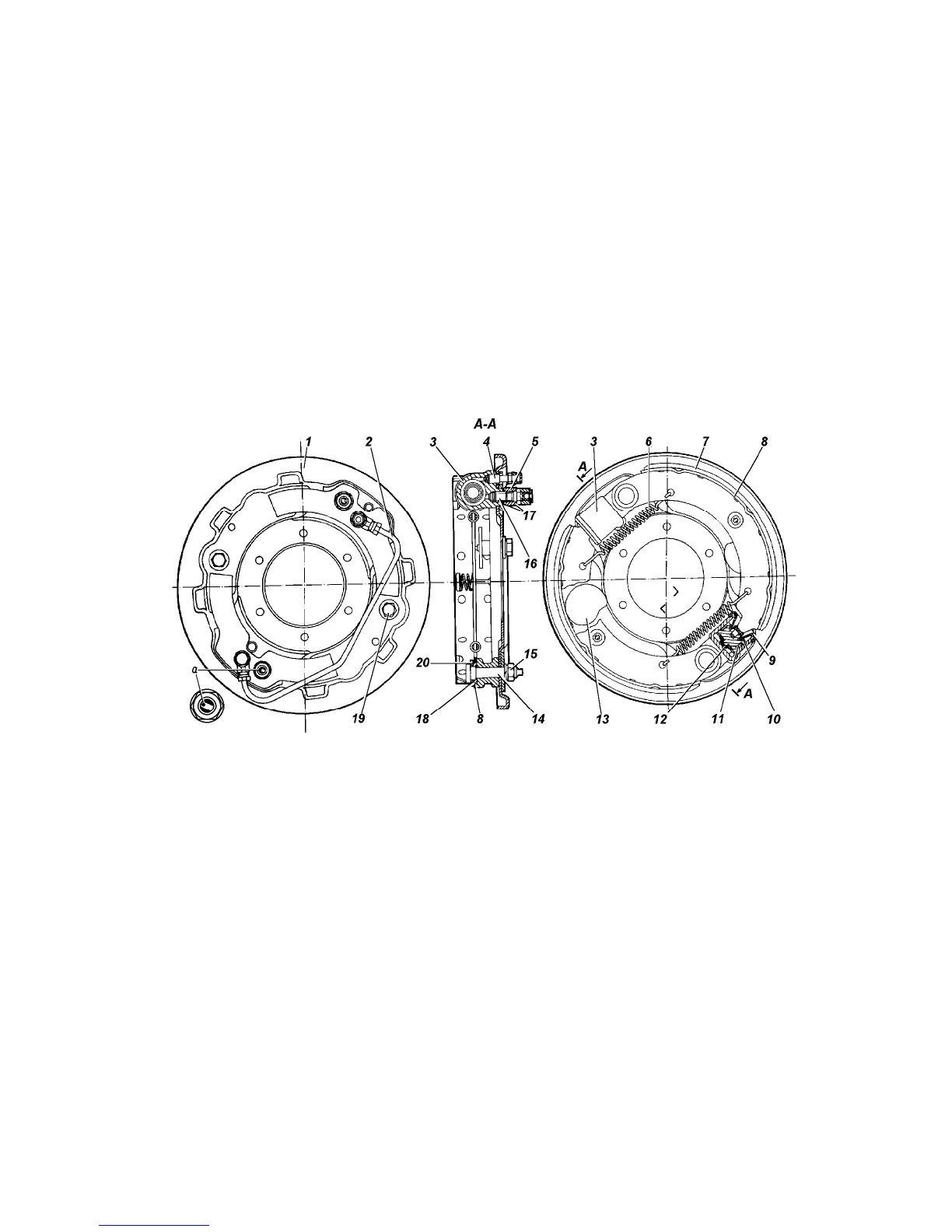

Fig. 61. Front wheel brake:
1 -brake backing plate; 2 -bridge pipe; 3 -wheel cylinder; 4 -bleeder valve; 5 -coupling; 6 -shoe return spring; 7 -brake shoe lining; 8 -
brake shoe; 9 -boot; 10 -piston; 11-sealing rings; 12 -piston spring; 13 -adjusting eccentric; 14 -shoe anchor pin; 15 -nut; 16 -coupling
bolt; 17 -gaskets; 18 -support bushing; 19 -adjusting eccentric bolt; 20 -washer
