UBTECH Jimu User Manual

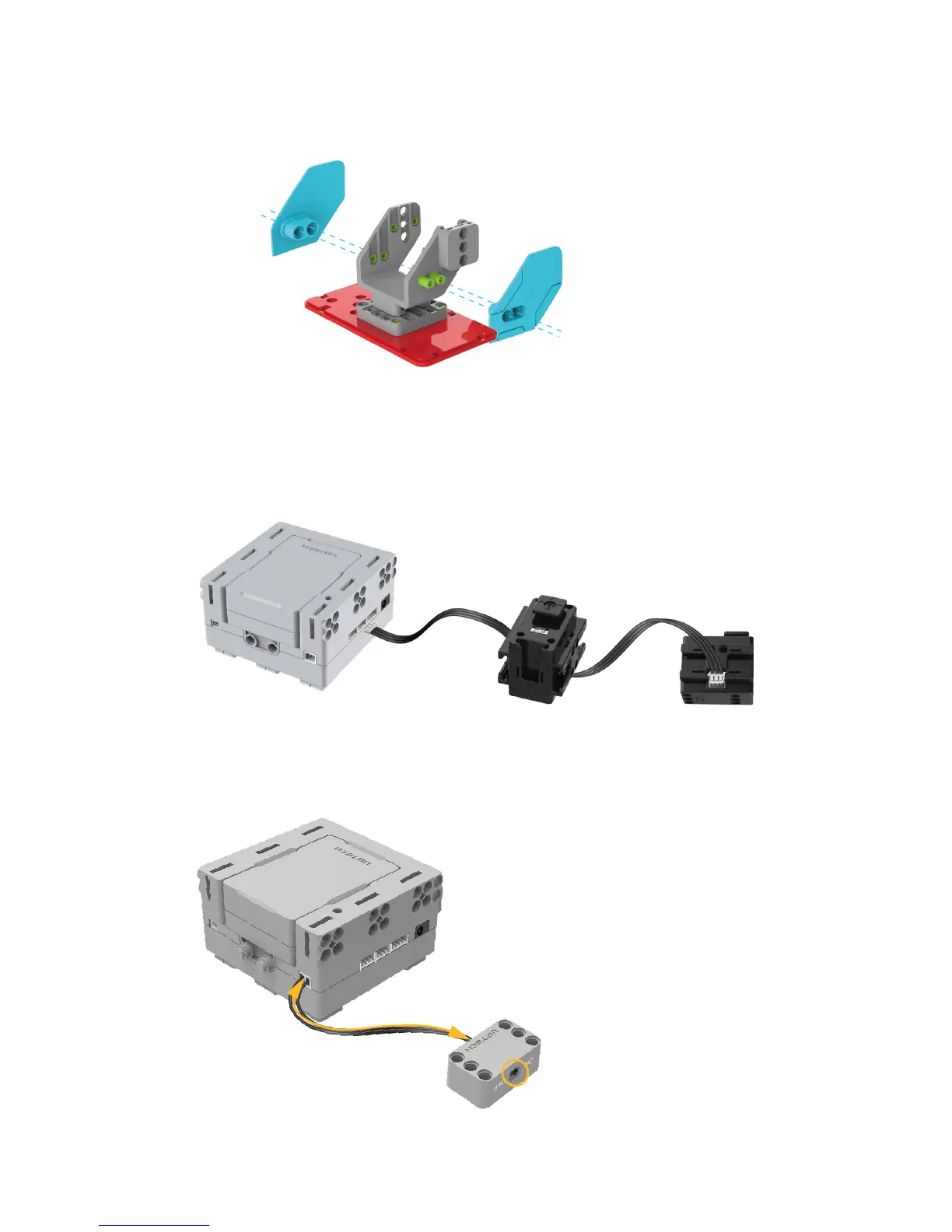

1) Connection between the Main control box and servos, or servos and servos. The Main control box can be connected to up to 7 servos through
3-pin ports. A servo can be connected to 32 servos at most.
2) Connection between the Main control box and power switch.
The power switch can be connected to the Main control box through 2-pin ports to turn on/o the Main control box.
Connect the controller with
servo through 3-pin holes
Connect servo with
servo through 3-pin ports
b. Integration: Integration refers to the method of assembling dierent components through fasterners.
c. Connection: Connection refers to the assembly method of connecting the Main control box with servos, servos with servos, the Main control box
with sensors, or the Main control box with power switch using connecting cables.
10
