UEi ATTPC3 - Frequency and Duty Cycle

14
Use CAT III test leads or higher.
Select AC Voltage mode, press the button for Frequency and Duty Cycle
modes.
Frequency
Range Resolution Accuracy Overload Protection
99.99Hz 0.01Hz
± (0.1% +4 dgts) 600V RMS
999.9Hz 0.1Hz
9.999kHz 1Hz
99.99kHz 10Hz
199.9kHz 100Hz
Minimum Frequency: 0.5Hz, DC V offset should be zero
Sensitivity: > 10% of each AC volt range except 4V (>20%) range only
Duty Cycle
Range Accuracy Overload Protection
1.0 to 99.0%
± (0.2% per kHz +0.1%)
+5 dgts
600V RMS
0.5Hz to 100KHz (pulswidth > 2µ sec)

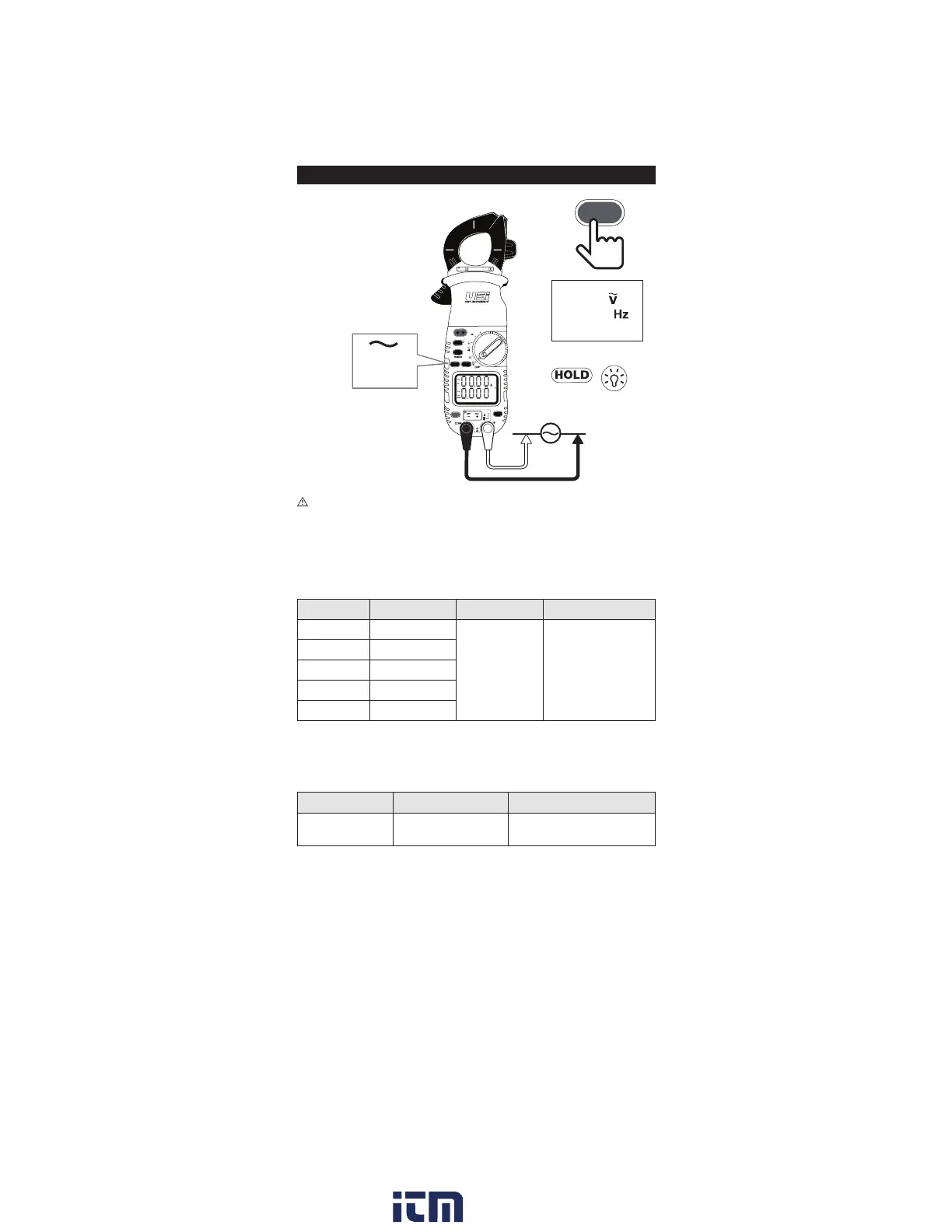

Frequency (Hz) / Duty Cycle Measurements
Hi-NCV-Lo
MFD
°F °C
µA
CAT Ill
600V 400A
MAX/MIN
HOLD
Hz / Duty
SELECT
TEMP
DISCONNECT
30V MAX
TESTLEADS
True RMS
DL389B
MAX
CATll1000V
CATIII600V
• Default =
• Press x1 =
• Press x2 = %
Features:
V
Hz/Duty
