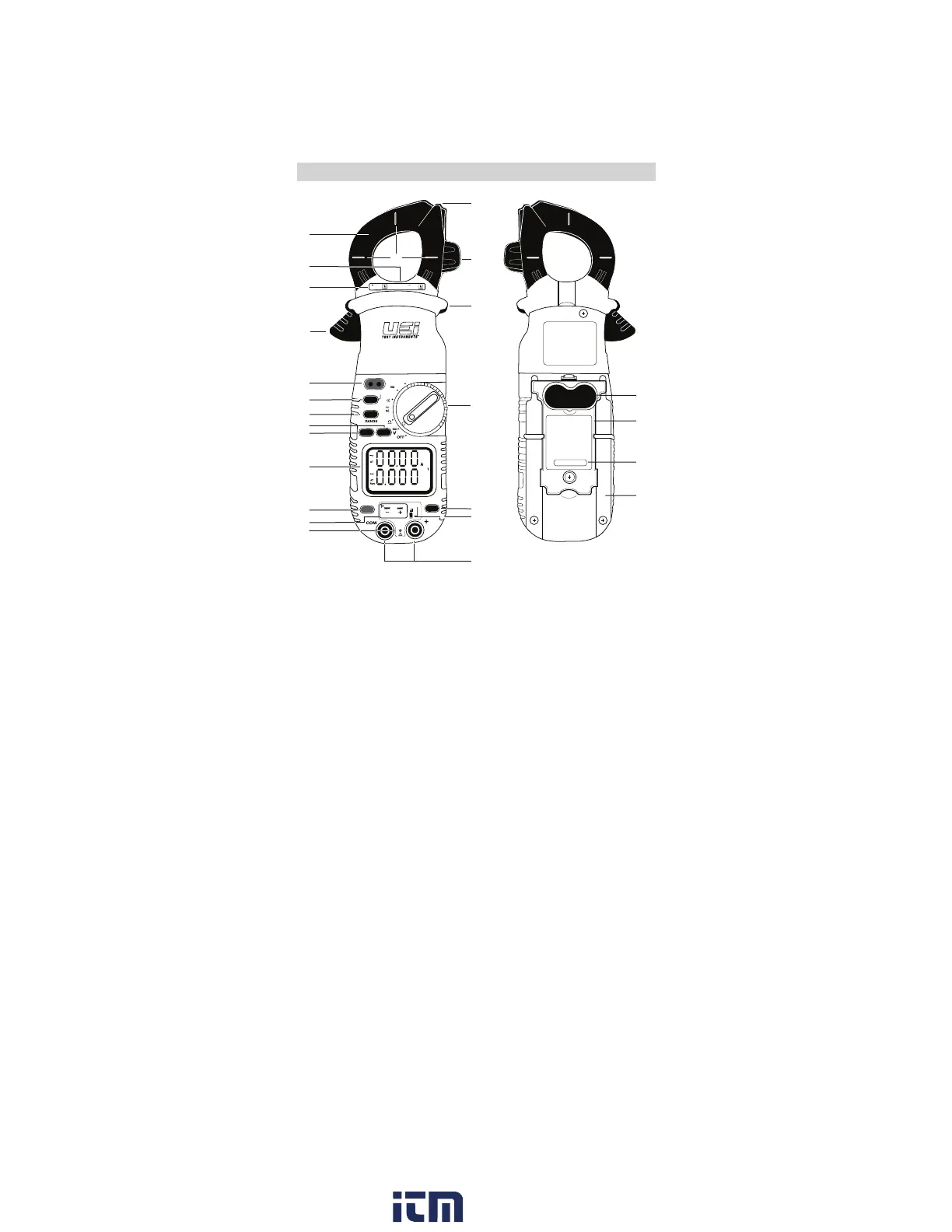

A. Wire Separation Tab/NCV Sensor: Use to isolate an individual wire from a
bundle for testing. NCV sensor detects live voltage.
B. Clamp: Measure inductive AC current. Opens to 1.25” (32mm)
C. Conductor Alignment Marks: Use to aid the visual alignment of a conductor
when measuring inductive amperage. Greatest accuracy is achieved when
the conductor inside the clamp is centered at the intersection of these marks.
D. Test Lead Holder: Used for hand-free use of the test probes.
E. Worklight: Lights clamp area in dark work environments.
F. Category Max Indicator: Maximum CAT Rating for Clamp/jaw.
G. Hand Guide: Used as a point of reference for the operator’s safety.
H. Clamp Lever: Opens and closes current clamp jaw.
NOTE: The clamp uses a high-tension spring to close the jaw. Do not allow
fingers or objects to become pinched in the base as the jaws close.
I. Hi-NCV-Lo Alert Light: Indicates voltage when in NCV mode.
J. Hi-NCV-Lo Button: 24V to 600V range
• Press and hold for NCV detection
K. Range Button:
• Press repeatedly to cycle through manual ranges.
• Press and hold to return to auto ranging mode.
• AT is displayed on LCD only during auto ranging mode.
• Note: Select range prior to MAX/MIN for best results.
L. Max/Min Button:
• Press to enter MAX/MIN mode.
• Press repeatedly to alternate between Maximum and Minimum readings.
• Press and hold to return to live readings.
M. Hold Button:
• Press to hold the reading on the display. Press again to return to live reading.
• Press and hold to turn on Worklight and Back Light. Press and hold
again to turn off.
E
F
H
K
O
P
Q
J
M
R
U
X
Y
W
V
I
OVERVIEW
Hi-NCV-Lo
MFD
°F °C
µA
CAT Ill
600V 400A
MAX/MIN
HOLD
Hz / Duty
SELECT
TEMP
DISCONNECT
30V MAX
TEST LEADS
True RMS
DL389B
MAX
CATll1000V
CATIII600V
B
C
A
D
G
L
N
S
T
