Ultimaker 3 Extended Maintenance

6.

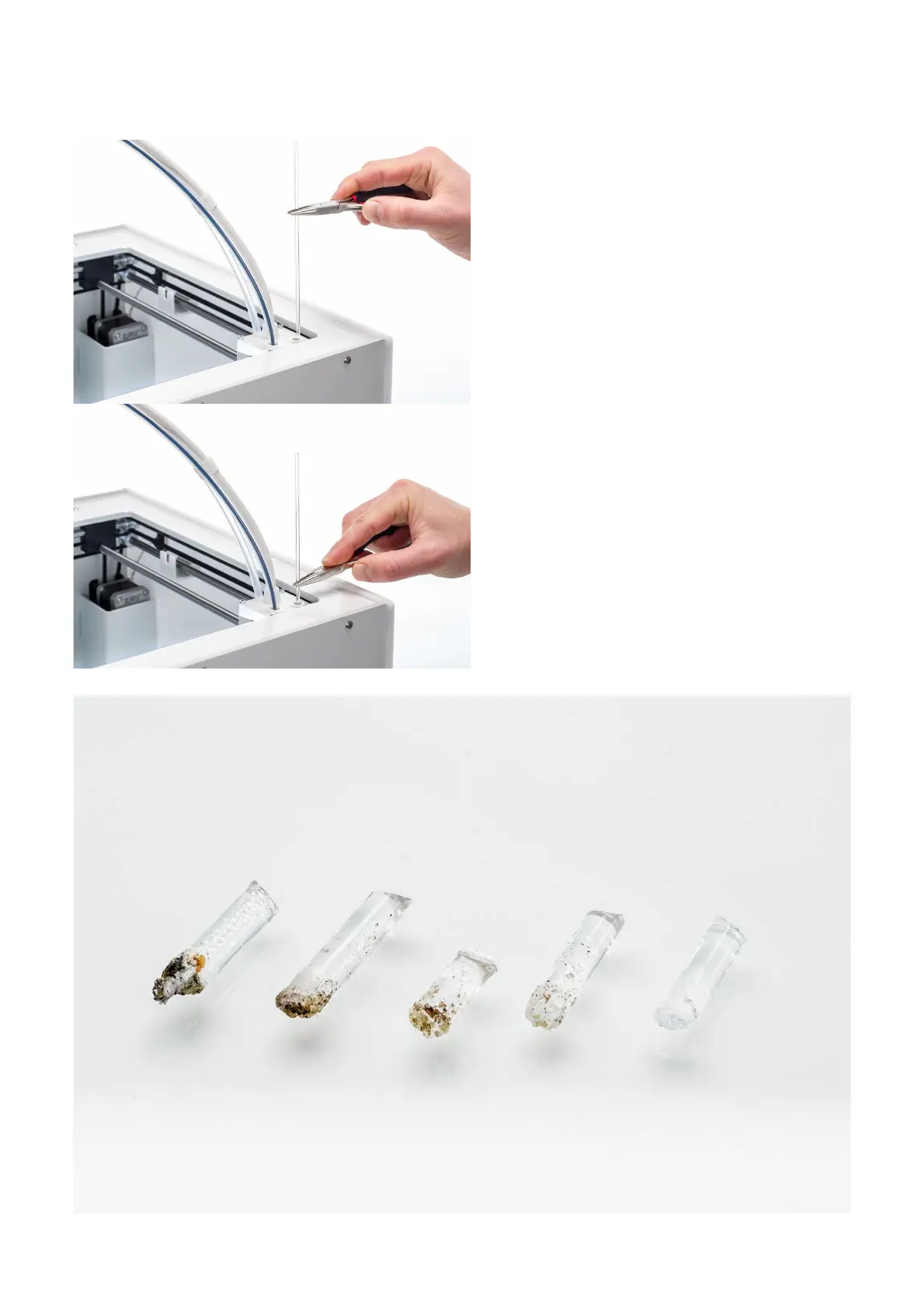

Once the tip of the filament is clean, manually flush some filament through the print
core with pliers and take it out again.
Con�rm
to continue
How to perform a hot and cold pull – Ultimaker... https://support.ultimaker.com/hc/en-us/articles/...
3 of 7 12/15/20, 2:15 PM

Ultimaker 3 Extended Specifications

General

Build Volume	215 x 215 x 300 mm
Layer Resolution	20 - 200 microns
Print Technology	Fused Filament Fabrication (FFF)
Filament Diameter	2.85 mm
Operating System	Windows, MacOS, Linux
Print Speed	Up to 24 mm³/s
Software	Ultimaker Cura
Weight	11.3 kg
Print Head	Dual extrusion
Nozzle Diameter	0.4 mm
Supported Materials	PLA, ABS, Nylon, CPE, PVA
Connectivity	USB, Ethernet, Wi-Fi
Display	4.7" color touchscreen
Power Requirements	100 - 240 V / 50 - 60 Hz
Travel Speed	Up to 300 mm/s
