Ultimaker 3 Repair Manual

Page. 2

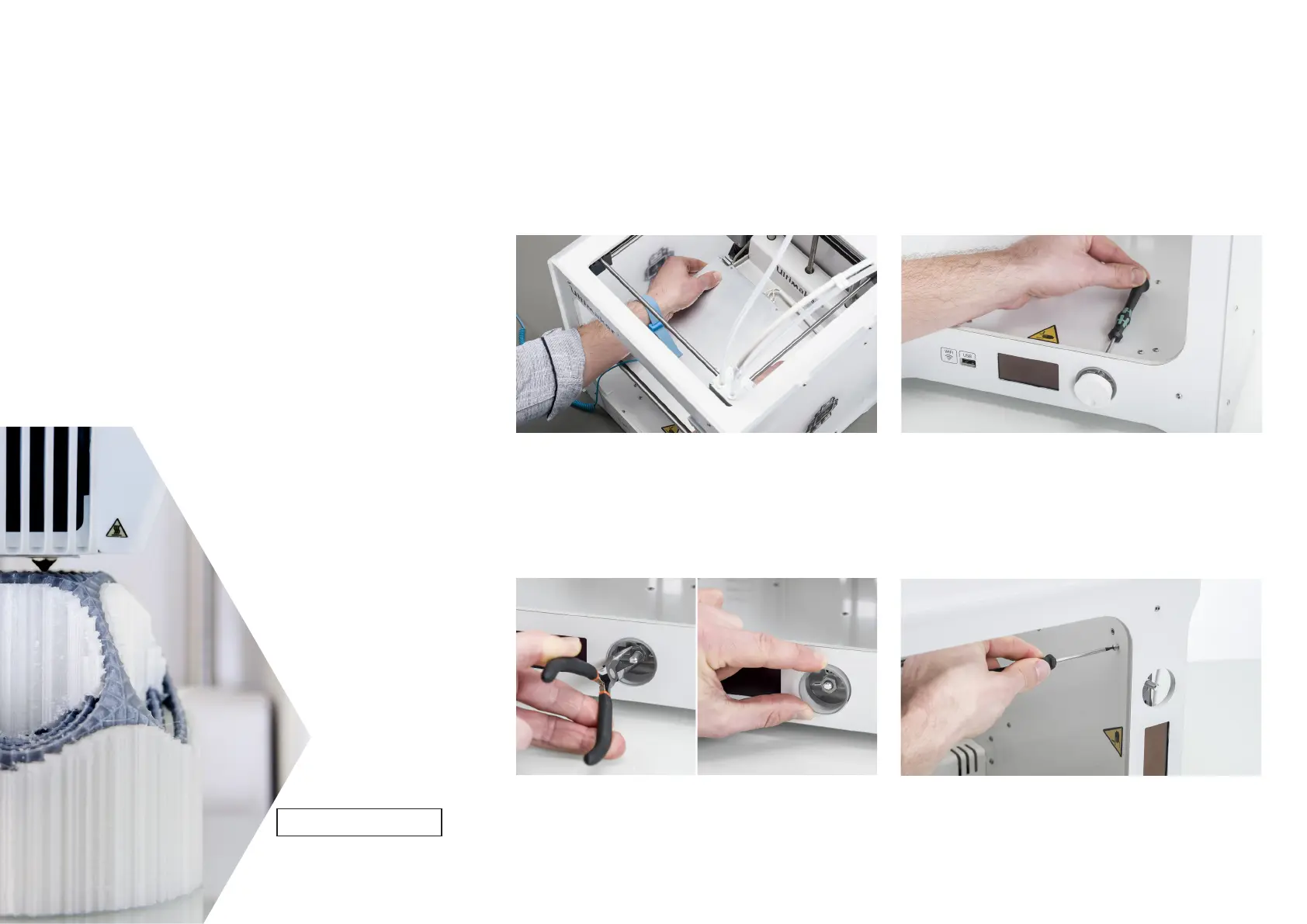

1. Move the Z stage up
• Place the print head in the front right corner.
• Manually move the build plate halfway up.
2. Remove the knob front
• Insert a screwdriver into the hole in the back of the knob
housing.
• Push firmly to pop the knob front out.
3. Remove the knob housing
• Use pliers to turn the M7 nut (1354) counterclockwise until it is
loose.
• Hold the M7 washer (1287) up with your fingernail to align it with
the pin, as the transparent housing is moved forwards and out of
the front panel.
4. Loosen the Ulticontroller cover
• Gently place the Ultimaker 3 on its left side.
• Remove the two M3x12 bolts that hold the Ulticontroller cover.
Disassembly
For internal use only

Ultimaker 3 Specifications

General

Manual	Yes
Bundled software	Cura 2
Included filament roll weight	0.35 kg
Number of filament rolls included	2
Storage temperature (T-T)	0 - 32 °C
Operating temperature (T-T)	15 - 32 °C
Input current	4 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	221 W
Package depth	380 mm
Package width	390 mm
Package height	560 mm
Package weight	15500 g
Card reader integrated	-
Accuracy	0.0125 mm
Nozzle width	0.4 mm
Print technology	Fused Filament Fabrication (FFF)
Printing material	Chlorinated Polyethylene (CPE), ABS, Nylon, Polylactic acid (PLA), PVA
Layer thickness (max)	0.2 mm
Layer thickness (min)	0.02 mm
Layer thickness supported	0.02, 0.2 mm
Maximum build size (WxDxH)	- mm
Filament thickness supported	2.85 mm
Maximum vertical build speed	300 mm/sec
Control type	Buttons, Rotary
Product color	White
Model file formats supported	obj, stl
Maximum extruder tip temperature	280 °C
Maximum print platform temperature	100 °C

Weight and Dimensions

Width	342 mm
Height	389 mm
