3 – ERGONOMICS AND DIMENSIONS OF MINI 600 & 2000 CONVERTERS

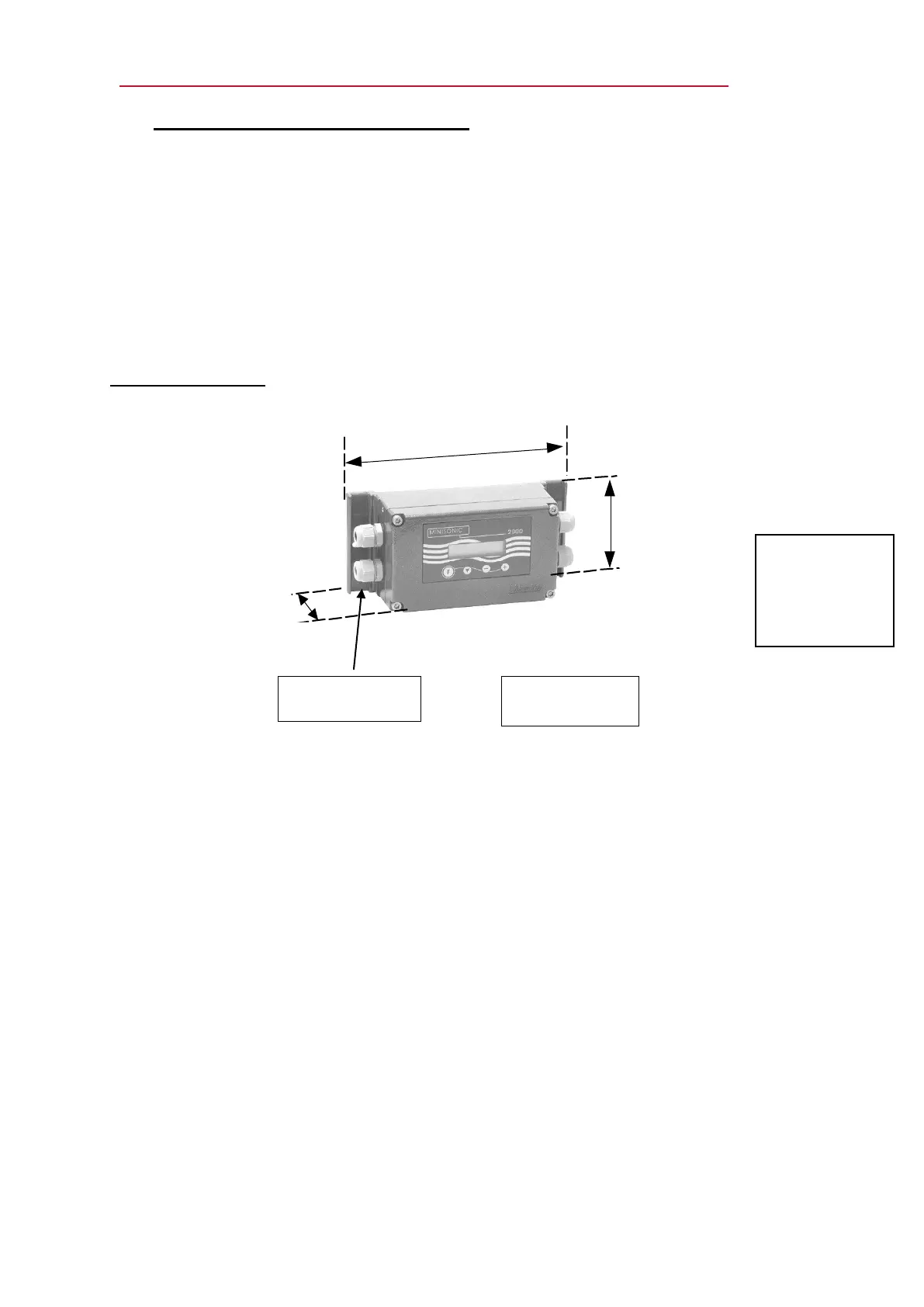

3-1: Industrial version for wall mounting (IP 67)
The two stuffing boxes on the left-hand side are for the supply (top) and the outlets.
The two stuffing boxes on the right are for probe cables.
To open the MiniSonic *(cabling or other), undo the four corner screws and remove the
cover by disconnecting the flat interconnection cable from the display on the display side.
It is possible to leave this cable connected while temporarily attaching the face by 2 screws.
The unit is designed for wall mounting or mounting on a pipe or an electrical cabinet on a
DIN rail. The arrangement of the outputs will allow the superimposed assembly of several
units.
Use flexible cables that are in conformity and secure the stuffing boxes used (IP 67).
Or
F = Function ▼ = Choice (menu or parameter) +/- = Modification
N.B.: MiniSonic * must be supplied at low voltage, whether DC or AC.
When a conversion module is used from the 230 V AC or 110 V AC mains (transformer, 24
V DC power supply), the latter must include DBT protections and be situated near the
MiniSonic. The same applies if it has to be incorporated (as GP 01).
Meanwhile, the MiniSonic enclosure must be electrically earthed both for human safety and
to drive any noise collected by cables shields. This connection can be done from the outside
by using the threaded hole near the upper left gland or from the inside by using the
terminals at each P.C. Board corner.
Poids =1.5 kg
Mat. = Alum.
Peinture= Epoxy
Fixing by 2 collars
on pipe
Fixing by 2 x
M5 Screws .
