Chapter 7: Field Service Components 00.053.058, Revision D SonixTouch Service Manual
7-34

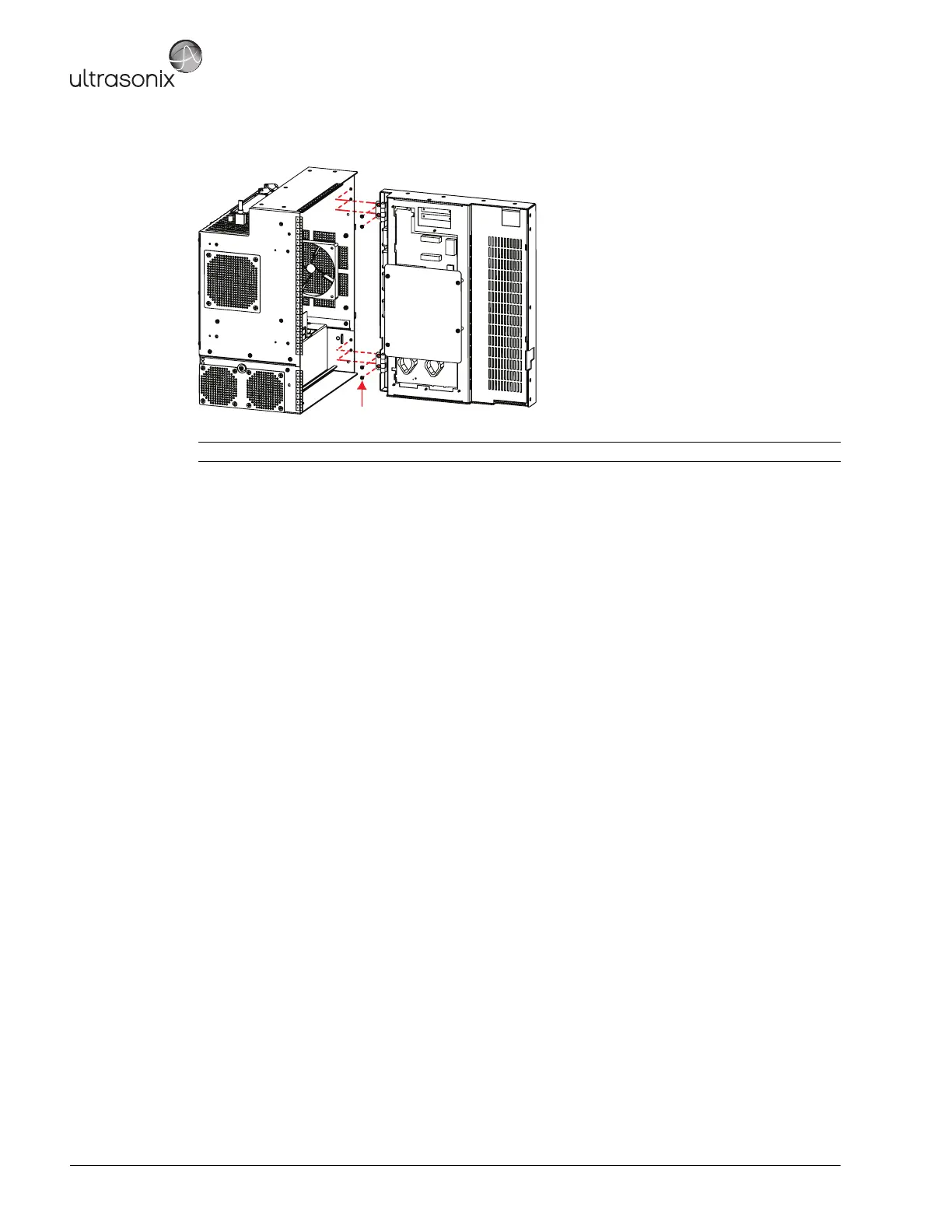

5. To remove the door, use the #2 Phillips screwdriver to undo the two (2) hinges (two (2) screws per hinge).
6. The Front Block/Ultrasound Module can now be removed.
Note: The arrows (above) mark the two (2) screws on the top hinge.
M4x6 Flat Head Screw (x4)
Tool: #2 Phillips screwdriver
