F77 Headlight Beam Adjustment
Adjusting the headlight on a motorcycle is important for optimal visibility and
safety. Here’s a general guide on how to adjust the headlight:
Tools Required:
Phillips Head Screwdriver
Measuring Tape
1. Ensure the tires are properly inated to the recommendedpressure.

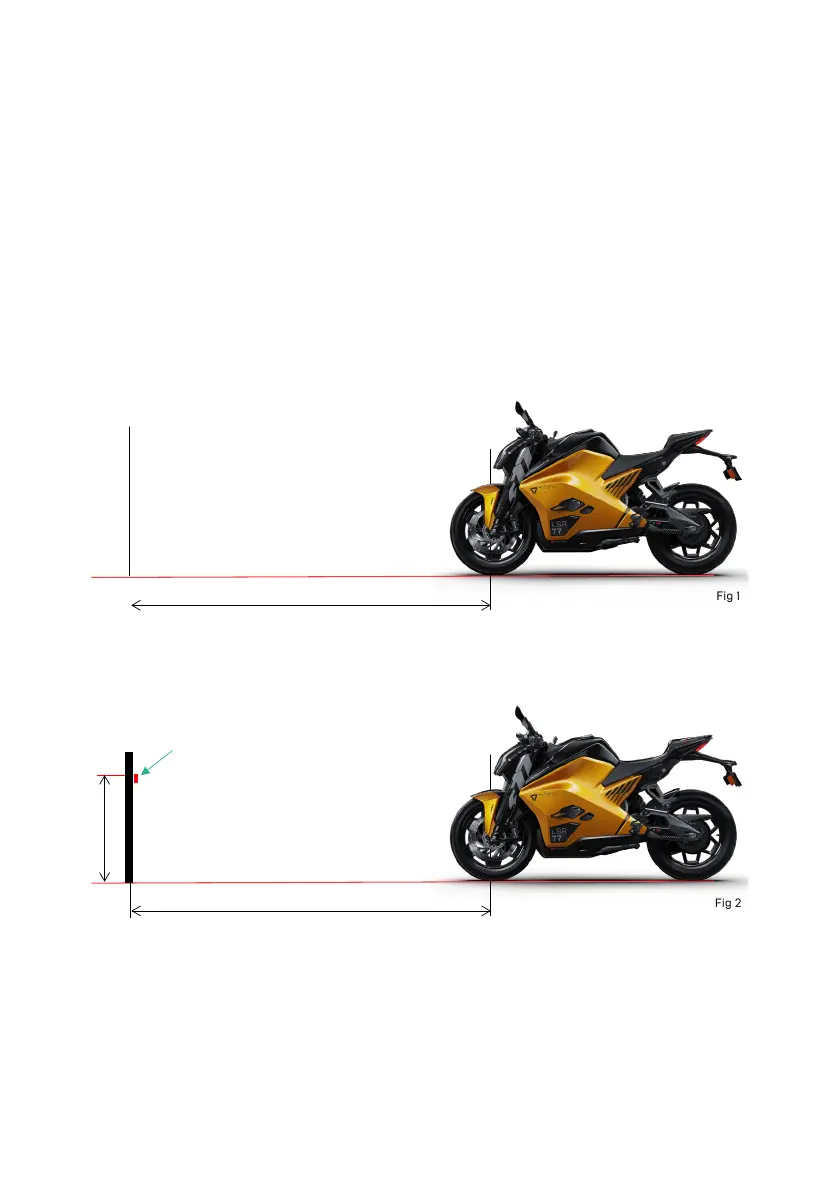

2. Park your F77 on a level surface 5 meters away from a perpendicular wall as
shown in the Fig 1. Make sure both the front and the rear wheels are touching
the ground during this operation.
5 Meter
750mm
5 Meter
Fig 1
Fig 2
Fig.1
3. Using a marker or a tape, mark the wall at a height of 750 mm as shown.
