(8) Print Screen
Copy the screen to a BMP format image and store it to USB device.
(9) Multipurpose knob
• Intensity : During non-menu operations, turn the knob to adjust display brightness. You can also press
DISPLAY →Waveform brightness, then use the knob to adjust it.
• Multipurpose: During menu operations, turn the knob to select submenu, then press the knob to confirm
selection.

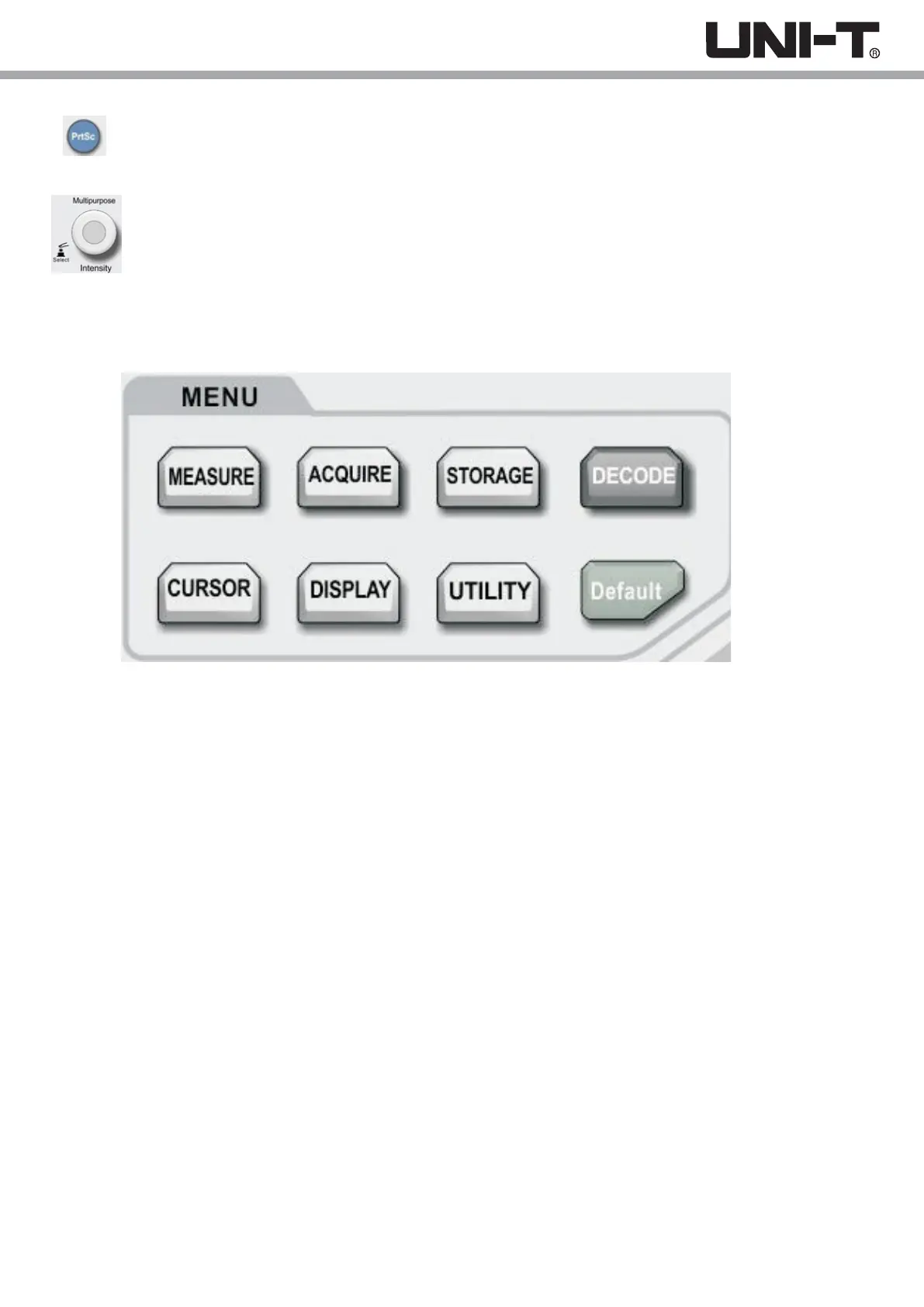

(10) Function Keys
MEASURE : Measure setting menu: can set measure source, all parameters, user-defined, perform measurement statistics,
select measurement indicators, etc. The user-defined includes a total of 34 kinds of parameter measurements, which can
be quickly selected through the Multipurpose knob, and the measurement result will appear at the bottom of the screen.
ACQUIRE : Sampling setting menu for setting the acquisition mode and deep storage.
CURSOR : Cursor measurement menu, users can measure waveform’s time and voltage manually with cursor.
DISPLAY : Press to select display settings, such as display type, format, grid brightness, and waveform brightness, duration,
color temperature, inverse color temperature.
STORAGE : Press to enter storage interface, the settings/waveforms can be stored internally or in the USB storage devices.
UTILITY : Press to enter utility menu, can perform the settings such as self-calibration, system information, language, menu
display time, waveform recording, pass test, square wave output, frequency meter, AUX output selecting, backlight brightness,
data clearing, IP, RTC setting, etc.
DEFAULT : Restore to factory default settings.
13
