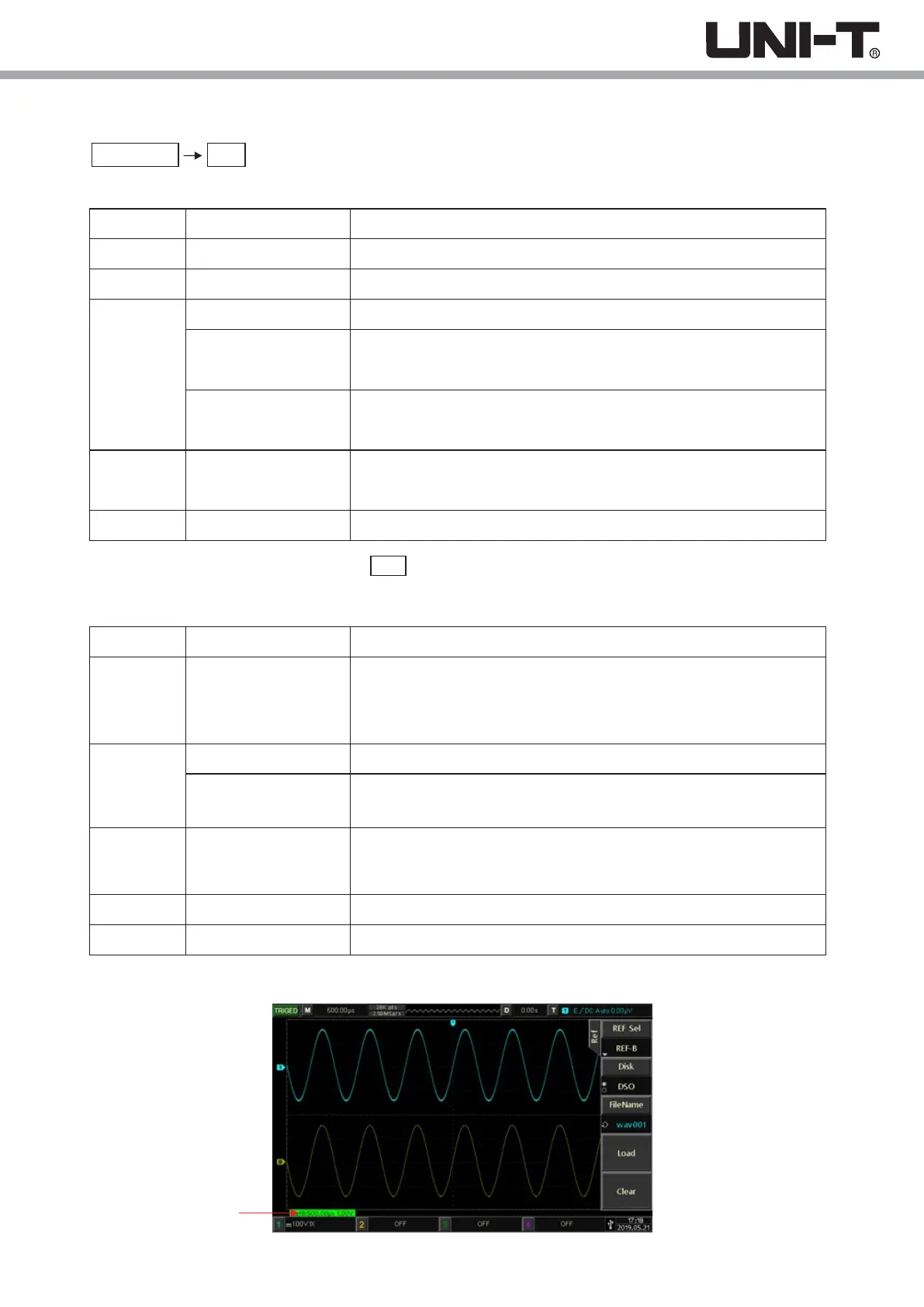

11.2 Waveform Storage and Load
Press STORAGE type , select waveform to enter the waveform storage menu.
10-2 Waveform Storage Menu
Descriptions
Set which channel waveform to be saved.
Press the save key to save the waveforms to the oscilloscope.
Press the save key to save the waveforms to an external
USB storage device.
When the save key is pressed, the waveform will be saved to an
external USB storage device in .csv format. This format can be
opened on the PC directly through software such as Excel.
Filename saved in waveforms can be chosen with the
Multipurpose knob from wav001 to wav255.
Saves waveforms to a specified storage location.
Options
Waveform
CH1, CH2, CH3, CH4
DSO
USB
USB CSV
Functions
Type
Source
Disk
Filename
Save
After the waveform is saved, you can select the REF key on the vertical control area to enter the REF waveform
load menu.
REF Waveform Load Menu
Descriptions
Select any of the four references to load waveforms.
Press the load key to recall the waveform from the oscilloscope.
Press the load key to recall the waveform from the external
USB storage device
Filename to be loaded can be chosen with the Multipurpose
knob from wav001 to wav255 and must be consistent with
saved name
Loads the previously saved waveform and displays it on screen
Close current REF waveform
Options
Ref-A,
Ref-B,
Ref-C,
Ref-D.
DSO
USB
Functions
Reference
Disk
Filename
Load
Clear
The loaded REF waveform is shown below:
Ref waveform
status display
52
