Model UT106: OPERATING MANUAL
Measurement Operation
Part 1 Multimeter Basic Testing
A. DC Voltage Testing (see figure 3)

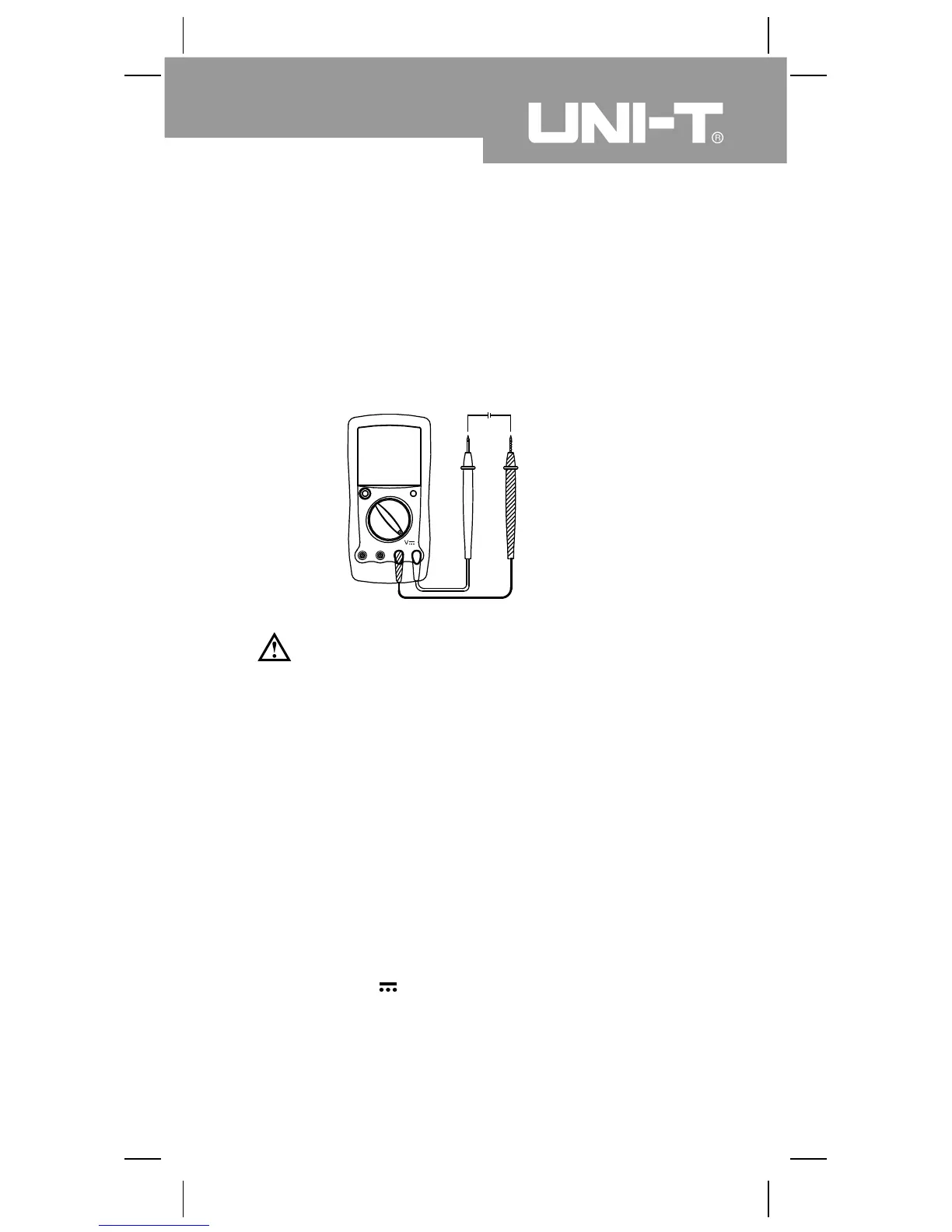

( figure 3)
Warning
To avoid harms to you or damages to the Meter from
electric shock, please do not attempt to measure
voltages higher than 1000Vp although readings may
be obtained.
The DC voltage ranges are: 200mV, 2V, 20V, 200V and
1000V.
Insert the red test lead into the V terminal and the
black test lead into the COM terminal.
Set the rotary switch to an appropriate measurement
position in .
Connect the test leads across with the object being
measured.
The measured value shows on the display.
1.
2.
3.
To measure DC voltage, connect the Meter as follows:
Please take extra care when measuring high voltages
to avoid electric shock.
