Model UT106: OPERATING MANUAL

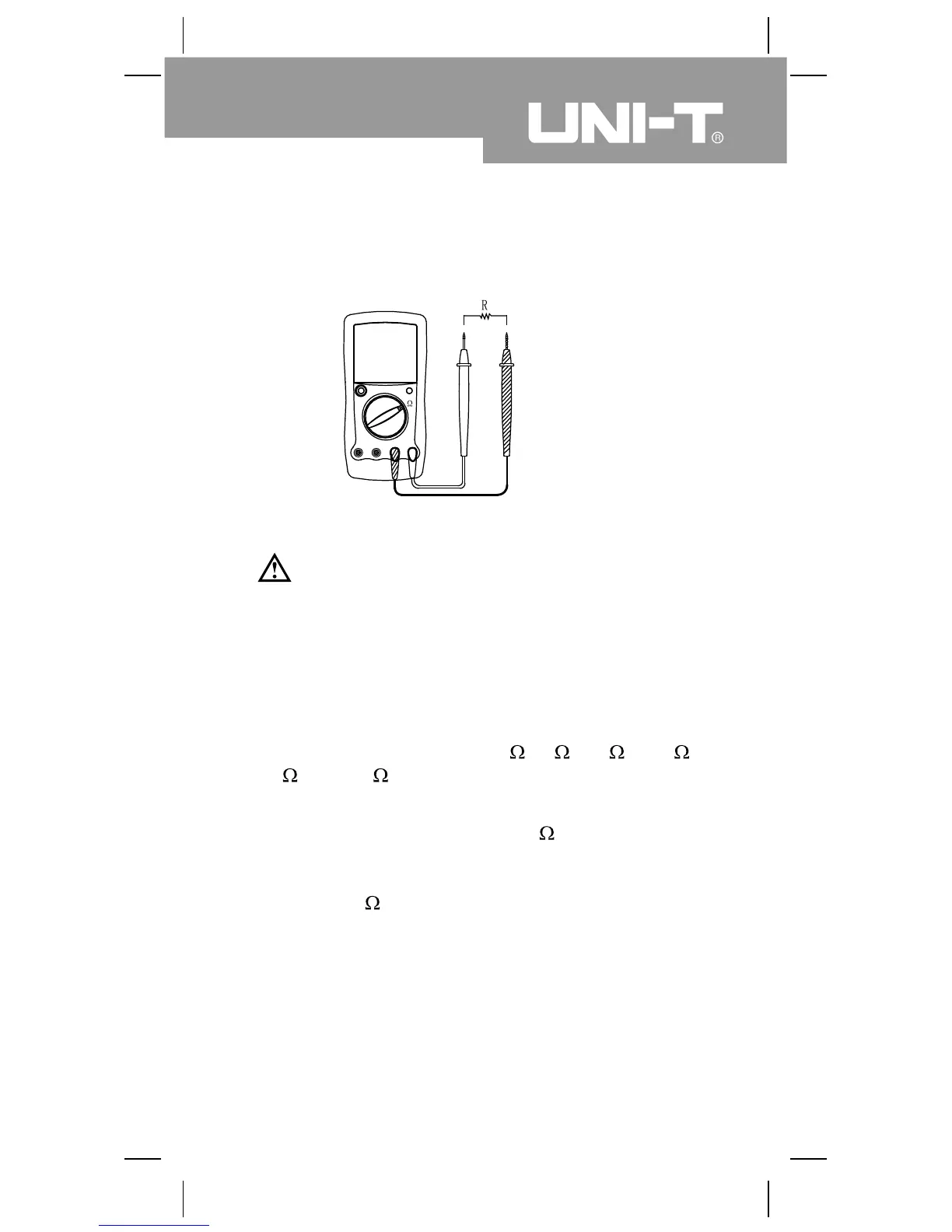

D. Resistance Testing (see figure 6)
( figure 6)
Warning
To avoid damages to the Meter or to the devices
under test, disconnect circuit power and discharge
all the high-voltage capacitors before measuring
resistance.
The resistance ranges are: 200 , 2k , 20k , 200k ,
2M and 20M .
Insert the red test lead into the
terminal and the
black test lead into the COM terminal.
Set the rotary switch to an appropriate measurement
position in range.
Connect the test leads across with the object being
measured.
The measured value shows on the display.
1.
2.
3.
To measure resistance, connect the Meter as follows:
To avoid harm to yourselves , never attempt to input
an effective voltage over 60V in DC or 30V in AC.
