UNI-T UT60A User Manual

Measurement Operation (2)
Note
l In each range, the Meter has an input impedance
of 10M . This loading effect can cause measurement
errors in high impedance circuits. If the circuit
impedance is less than or equal to 10k , the error
is negligible (0.1% or less).
l When AC voltage measurement has been
completed, disconnect the connection between the
testing leads and the circuit under test.

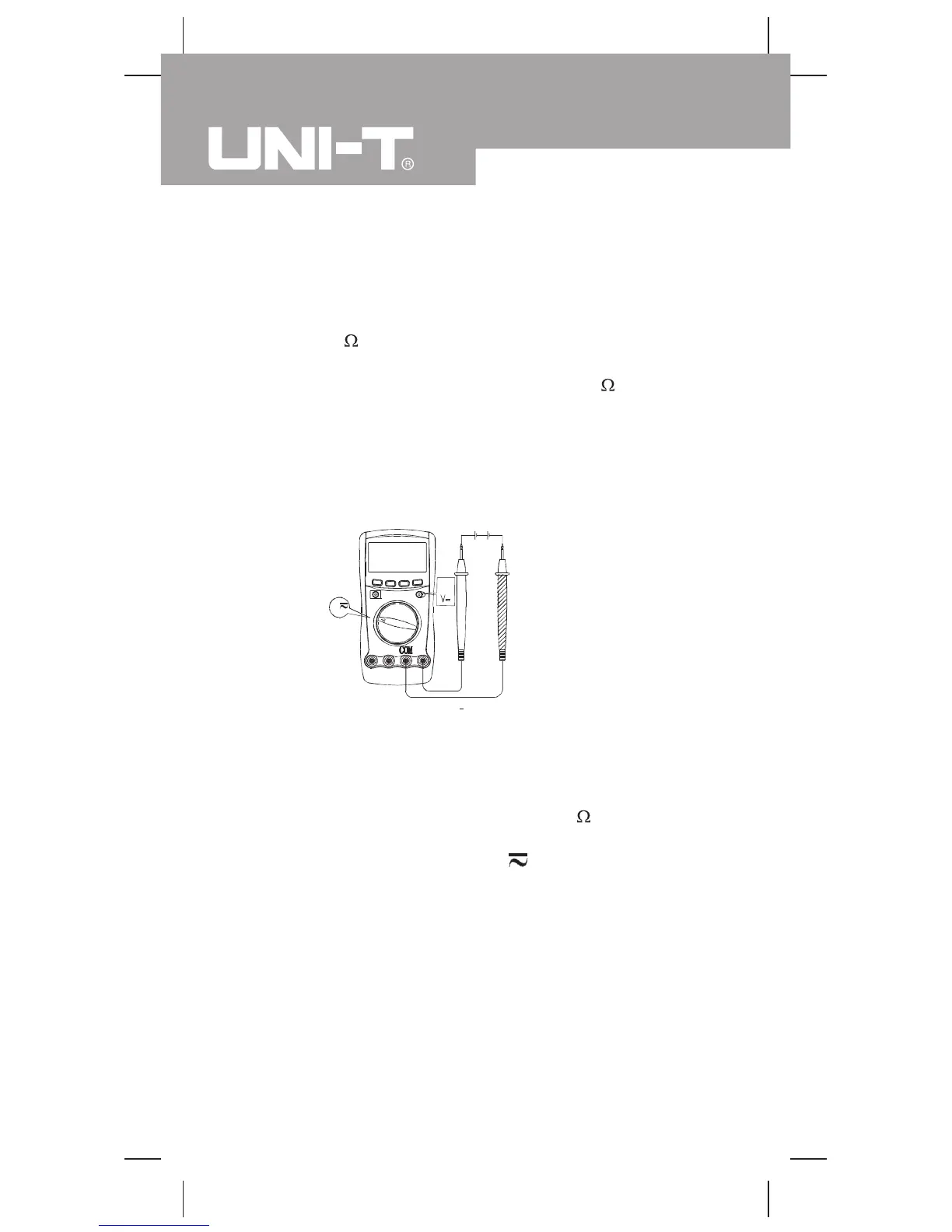

DC Voltage Measurement (see figure 4)
Select
(figure 4)
The DC Voltage ranges are: 400.0mV, 4.000V, 40.00V,
400.0V and 1000V. To measure DC voltage, connect
the Meter as follows:
1. Insert the red test lead into the HzV terminal and
the black test lead into the COM terminal.
2. Set the rotary switch to Hz
V; DC measurement
is default or press BLUE button to select DC
measurement mode.
3. Connect the test leads across with the object being
measured.
The measured value shows on the display.
Hz
V
blackred
Model UT60A: OPERATING MANUAL
20

UNI-T UT60A Specifications

General

Data hold	Yes
Product type	Digital multimeter
Frequency range	0.01 - 10000 kHz
AC current range	0.4 - 10 A
AC voltage range	4 - 750 V
DC voltage range	0.4 - 1000 V
Dimensions (WxDxH)	85 x 177 x 40 mm
Battery voltage	9 V

Weight and Dimensions

Weight	340 g
