Model UT60H: OPERATING MANUAL
26
Measurement Operation(12)
I. Frequency Measurement (see figure 9)

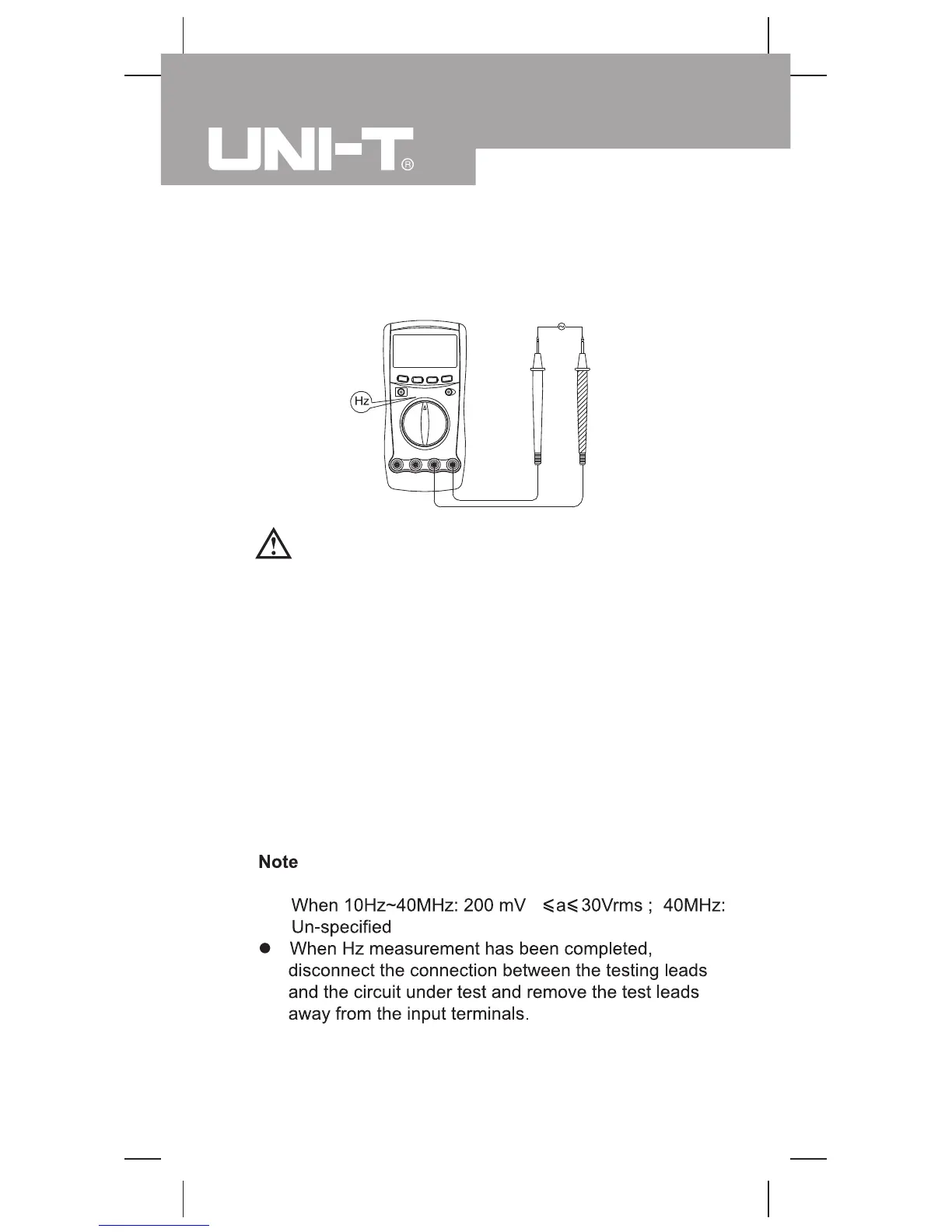

( figure 9)
Warning
To avoid harms to you, please do not attempt to input
voltage higher than 30V rms.
The measurement ranges are:40Hz, 400Hz, 4kHz, 40kHz,
400kHz, 4MHz, 40MHz and 400MHz.
To measure frequency, connect the Meter as follows:
1. Insert the red test lead into the Hz terminal and
the black test lead into the COM terminal.
2. Set the rotary switch to Hz.
3. Connect the test leads across with the object
being measured.
The measured value shows on the display.
l The requirement of Input amplitude “a” is as follows:
