UNI-T UT803 User Manual

E. Testing Diodes (See figure 7)
Warning
To avoid possible damage to the Meter and to the
device under test, disconnect circuit power and
discharge all high-voltage capacitors before testing
diodes.
To avoid harms to you, please do not attempt to input
voltages higher than 60V DC or 30V AC.
Use the diode test to check diodes, transistors, and
other semiconductor devices. The diode test sends a
current through the semiconductor junction, and then
measures the voltage drop across the junction. A good
silicon junction drops between 0.5V and 0.8V.
24
Model UT803: OPERATING MANUAL

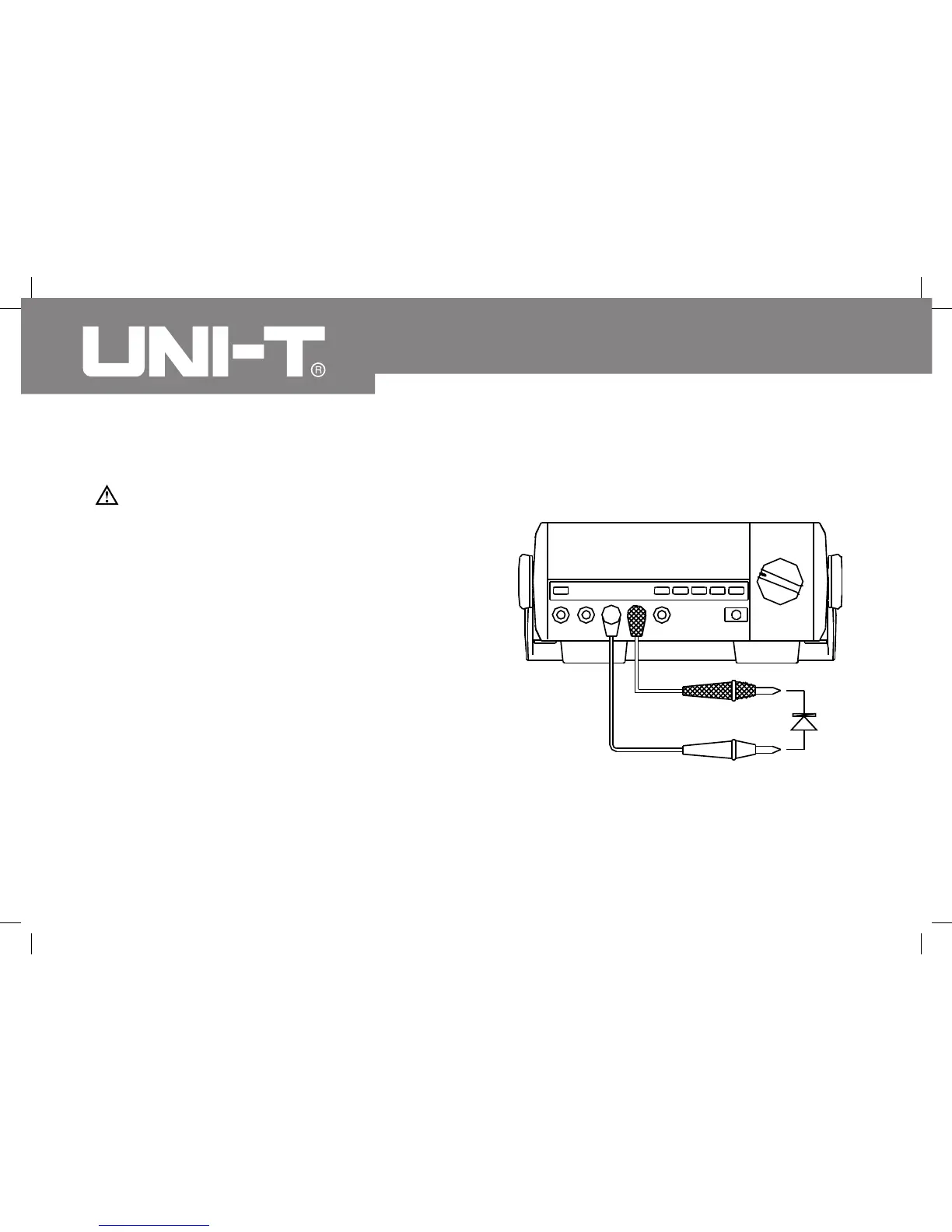

(Figure 7)

UNI-T UT803 Specifications

General

Backlight	Yes
Product type	Digital multimeter
Frequency range	6 - 60000 kHz
AC current range	0.06 - 10 A
DC voltage range	0.6 - 1000 V
Capacitance range	6 - 6000 nF
Statistic function	Maximum, Minimum
Resolution (frequency)	100000 Hz
Resolution (AC current)	6000 µA
Basic accuracy (frequency)	±(0.1%+3)
Basic accuracy (DC current)	±(0.5%+3)
Basic accuracy (DC voltage)	±(0.3%+2)
Basic accuracy (resistance)	±(0.5%+2)
Basic accuracy (capacitance)	±(2%+5)
Temperature measurement range	-40 - 1000 °C
Dimensions (WxDxH)	310 x 240 x 105 mm
Battery voltage	1.5 V

Weight and Dimensions

Weight	2400 g
